Path traversing behavior
9.2 Coupled motion (TRAILON, TRAILOF)
Job planning
9-10 Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
Example

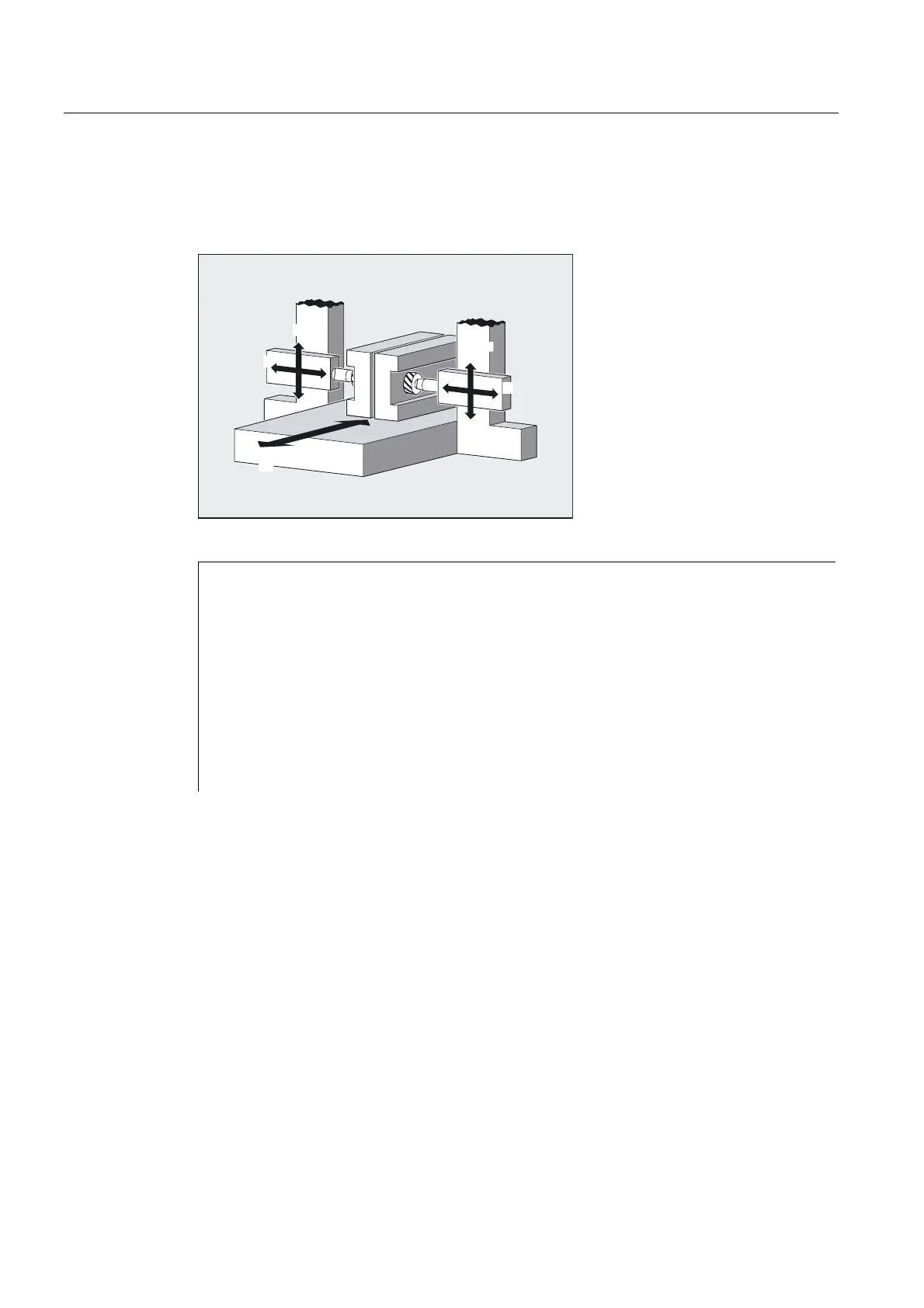

The workpiece is to be machined on two sides with the axis configuration shown in the
diagram. To do this, you create two combinations of coupled axes.
:
9
=
<
;
$[LV
$[LV
$[LV
$[LV
$[LV
…
N100 TRAILON(V,Y) ;Activate 1st coupled axis grouping
N110 TRAILON(W,Z,–1) ;Activate 2nd combined axis pair, coupling factor negative:
;Trailing axis traverses in opposite direction to leading
;axis
N120 G0 Z10 ;Infeed Z and W axes in opposite axial directions
N130 G0 Y20 ;Infeed of Y and V axes in same axis directions
…
N200 G1 Y22 V25 F200 ;Superimpose dependent and independent movement of trailing
;axis "V"
…
TRAILOF(V,Y) ;Deactivate 1st coupled axis grouping
TRAILOF(W,Z) ;Deactivate 2nd coupled axis grouping
Coupled axis types
A coupled axis grouping can consist of any desired combinations of linear and rotary axes.
A simulated axis can also be defined as a leading axis.
Coupled-motion axes
Up to two leading axes can be assigned simultaneously to a trailing axis. The assignment is
made in different combinations of coupled axes.
A coupled axis can be programmed with the full range of available motion commands
(G0, G1, G2, G3, ...). The coupled axis not only traverses the independently defined paths,
but also those derived from its leading axes on the basis of coupling factors.
