9.9 Repositioning at contour (REPOSA/L, REPOSQ/H, RMI, RMN, RMB, RME)

Job planning

Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0

9-57

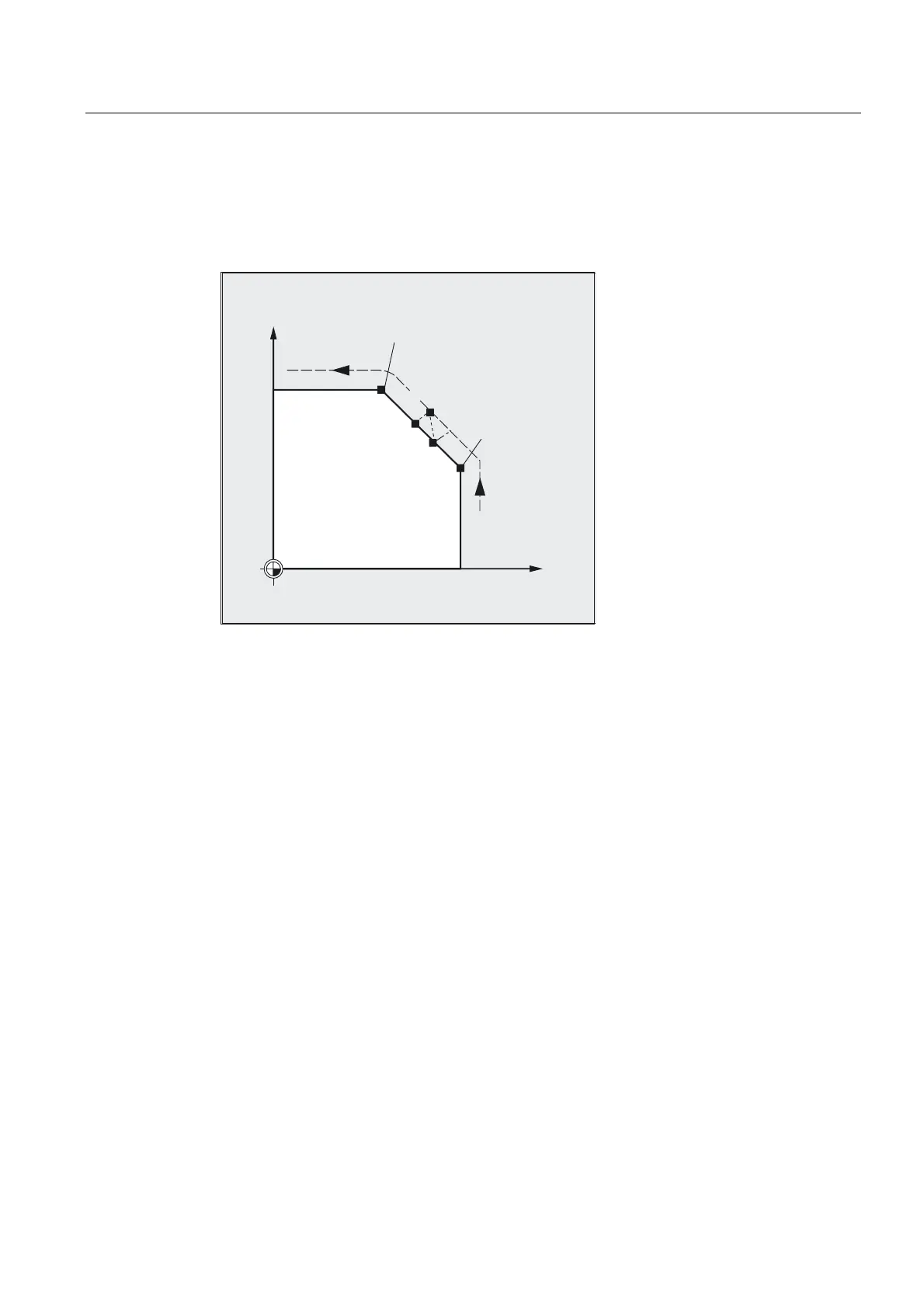

Approach from the nearest path point RMN

When REPOSA is interpreted, the repositioning block with RMN is not started again in full after

an interruption, but only the distance-to-go processed. The nearest path point of the

interrupted block is approached.

50,

;

50%

501

50(

$68%

5HSRVLWLRQLQJ

%ORFNVWDUWSRLQW

%ORFNHQGSRLQW

Status for the valid REPOS mode

The valid REPOS mode of the interrupted block can be read with synchronized actions and

variable $AC_ REPOS_PATH_MODE:

0: Approach not defined

1 RMB: Approach to beginning

2 RMI: Approach to point of interruption

3 RME: Approach to end of block

4 RMN: Approaching to next path point of the interrupted block
