Siemens SINUMERIK 840D Programming Manual

User stock removal programs
14.6 Calculate circle data (CALCDAT)
Job planning
14-16 Programming Manual, 03/2006 Edition, 6FC5398-2BP10-1BA0
Example

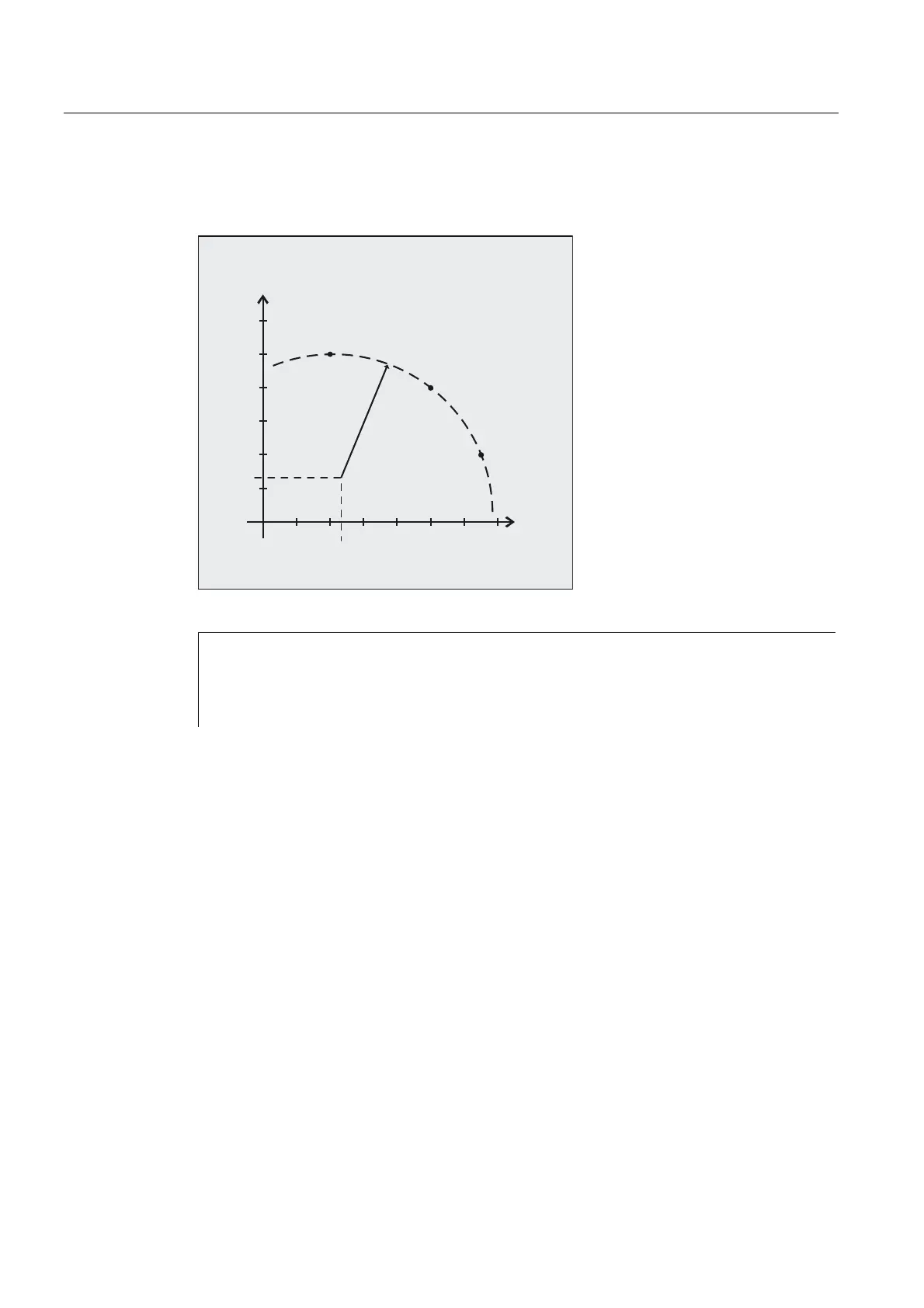

The program determines whether the three points lie along the arc of a circle.
(5*>@
;




<

(5*>@
(5*>@
    






N10 DEF REAL PT[3,2]=(20,50,50,40,65,20) ;Points definition
N20 DEF REAL RES[3] ;Result
N30 DEF BOOL STATUS ;Variable for the status
N40 STATUS = CALCDAT(PT,3,RES) ;Call calculated circle data
N50 IF STATUS == FALSE GOTOF ERROR ;Jump to error

Siemens SINUMERIK 840D Specifications

General

Series	SINUMERIK 840D
Axes	Up to 31
Channels	Up to 10
Operating System	Windows-based
Power Supply	24 V DC
Control Unit Type	CNC
Interface	Ethernet, PROFIBUS
Display	TFT color display
Interpolation	Spline
PLC	Integrated PLC
Data Storage	CompactFlash, USB
