Integrated Interfaces
Integrated Interfaces
USB Connection on the Front
The device can be accessed with the DIGSI 5 operating program by plugging a standard USB cable into the
USB-B socket on the front side. The complete configuration and setting of the device can be carried out via this
connection.
Integrated Interfaces on the Rear Panel of the Device
The device offers a permanently installed redundant Ethernet interface on the rear panel. For this, observe the
connection plans in 3.1.2 Terminals and 3.2.2 Terminals.
[dw_SIP5Comp_rear_optical_interface, 1, --_--]

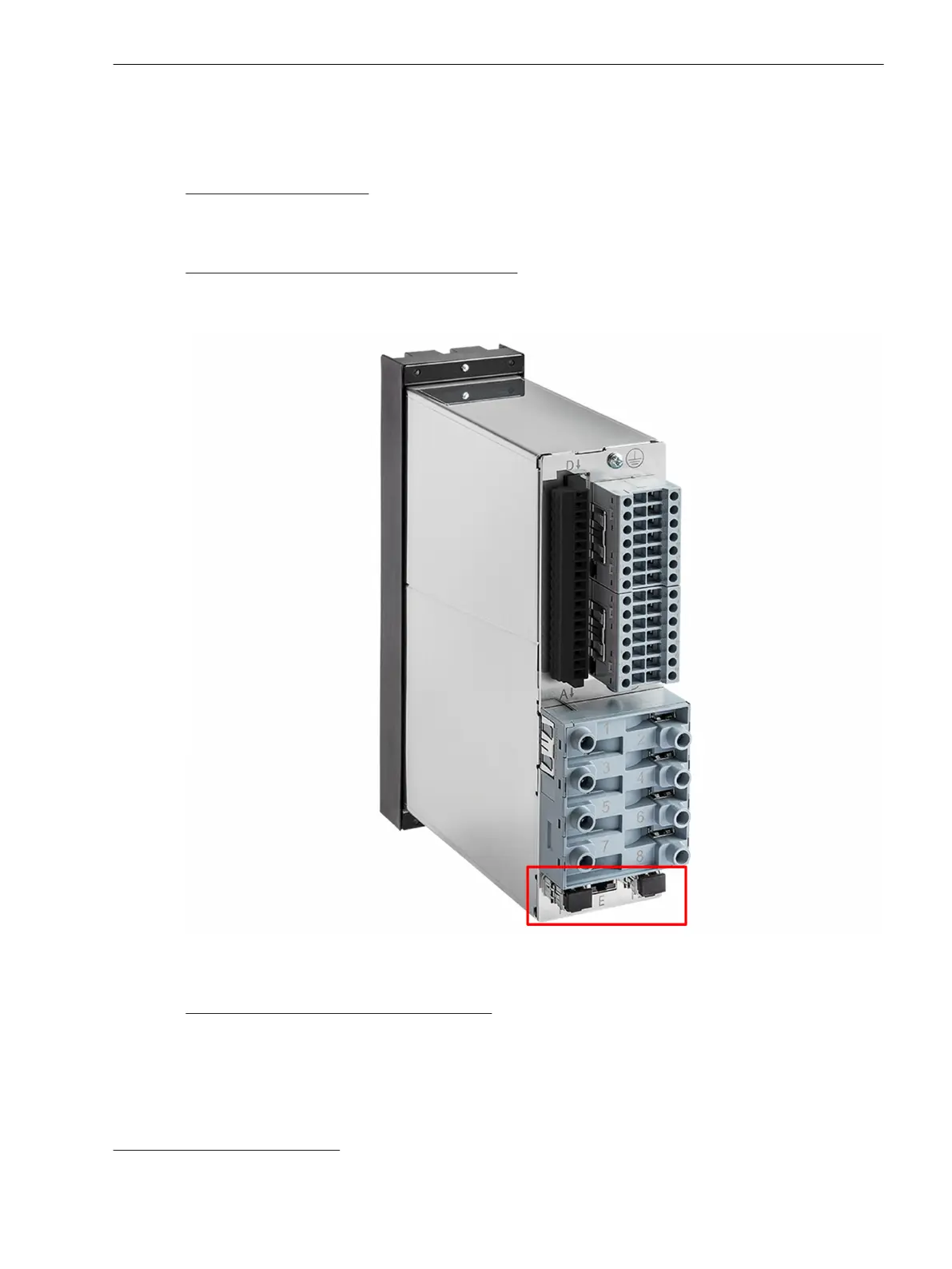

Figure 2-9
Rear View of the Device with Integrated Interfaces
Integrated Redundant Ethernet Interface (Port F)
The integrated Ethernet interface is available as an optical (2 x Duplex-LC 1300 nm) variant and can be config-
ured with or without integrated switch. It can be used for Ethernet-based protocol applications, for example,
IEC 61850, Modbus TCP, time synchronization via SNTP, network management via SNMP
1
, DIGSI 5 via TCP.
Several applications can run in parallel, whereby unused applications can be switched off for security reasons.
The maximum optically permitted distance via 50/125-µm or 62.5/125-µm multimode optical fibers is 2 km.
The optical transmission and receiving level is measured in the module and can be displayed with DIGSI 5.
2.3
1
In preparation
Forms of Devices and On-Site Operation Panels
2.3 Integrated Interfaces
SIPROTEC 5 Compact, Hardware Description, Manual 27
C53000-G5300-C002-3, Edition 12.2021
