Siemens SIPROTEC 5 Compact Hardware Description

Surface-Mounted Devices
Description
A surface-mounting frame for the SIPROTEC 5 Compact device can be ordered as an accessory to install it on
the wall. Thanks to a new concept, these devices thus have terminal connection diagrams that are identical to
the corresponding flush-mounting devices. With the distance frames that are used, sufficient space remains
for the wiring, which can be routed away upward and downward.

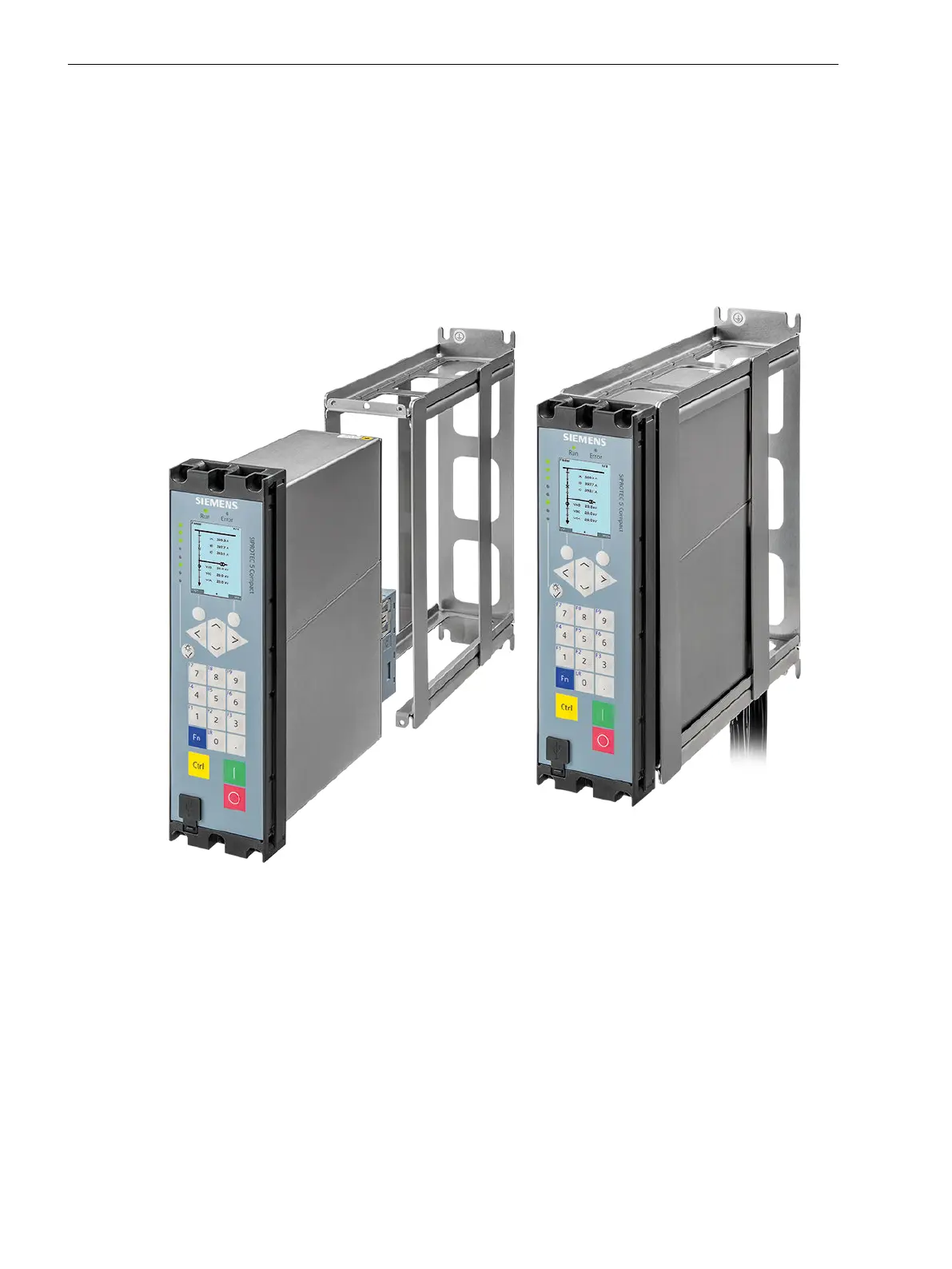

[ph_SIP5_C_Surface, 2, --_--]
Figure 2-8
SIPROTEC 5 Compact with Surface-Mounting Frame
2.2
2.2.1
Forms of Devices and On-Site Operation Panels
2.2 Surface-Mounted Devices
26 SIPROTEC 5 Compact, Hardware Description, Manual
C53000-G5300-C002-3, Edition 12.2021
