Power-Supply Module PS050
Description
The power-supply module PS050 is always permanently installed in the base module. Its central task is to
supply power to all modules. The following can be found on the PS050 module:
•
Two 14-pole voltage terminals (4 voltage transformers, 4 binary inputs, and 5 binary outputs (incl. life
contact))
•
4 current measuring inputs
It is a universal power supply for the following rated voltage range:
•
DC 24 V to 250 V and AC 100 V to 230 V (50 Hz and 60 Hz)
Terminals
Overview of Terminals
[sv_PS050, 1, en_US]

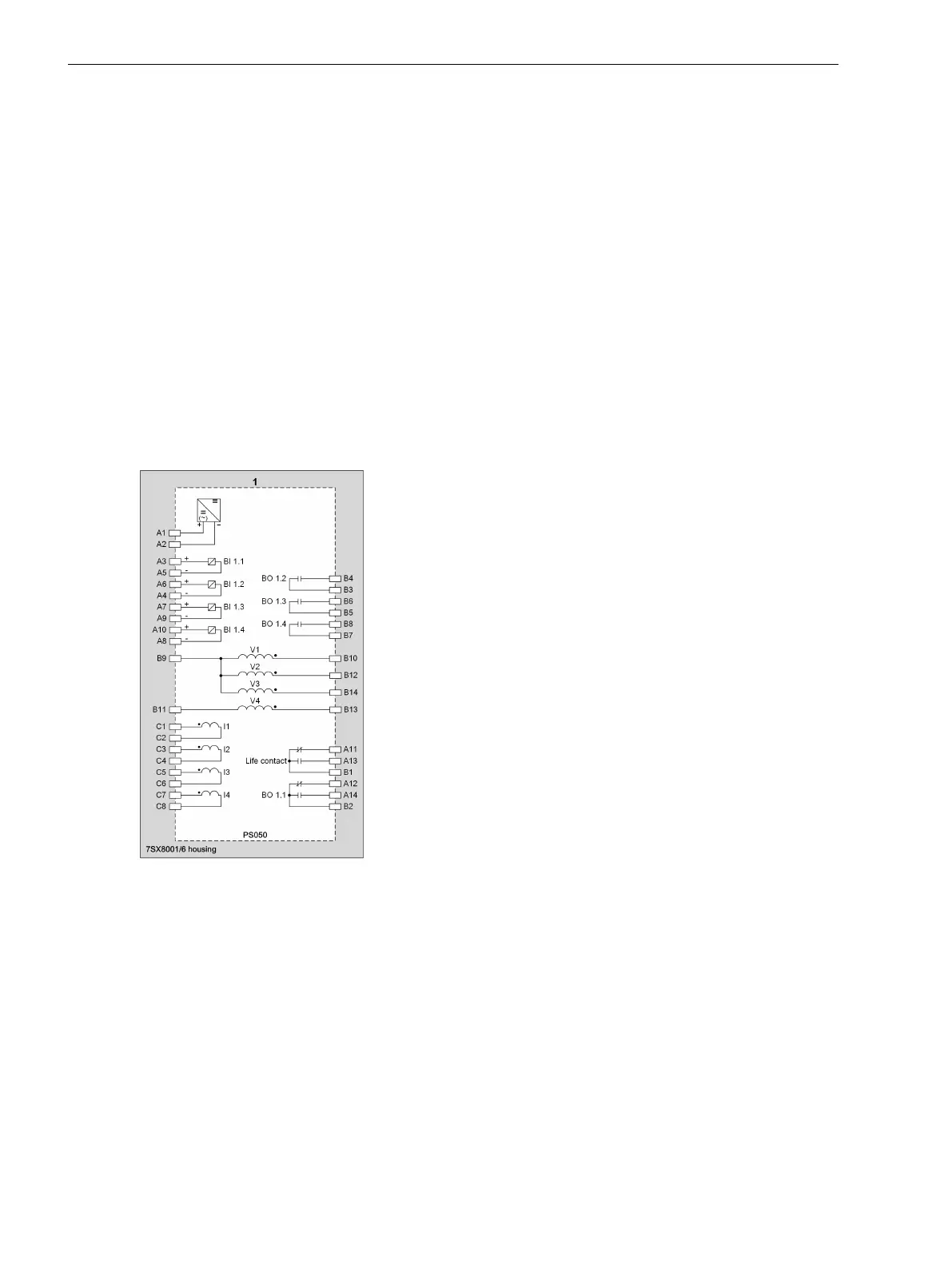

Figure 3-1 PS050 – Connection Diagram
3.1
3.1.1
3.1.2
Electronic Modules
3.1 Power-Supply Module PS050
32 SIPROTEC 5 Compact, Hardware Description, Manual
C53000-G5300-C002-3, Edition 12.2021
