Siemens SIPROTEC 5 Compact Hardware Description

Terminals
SIPROTEC 5 Compact Terminals
Innovative terminals were developed for the SIPROTEC 5 Compact family. All terminals are individually remov-
able (Figure 2-10). This enables prewiring of the systems and simple device replacement without costly
rewiring.
[ph_SIP5Compact_remove_terminal, 1, --_--]

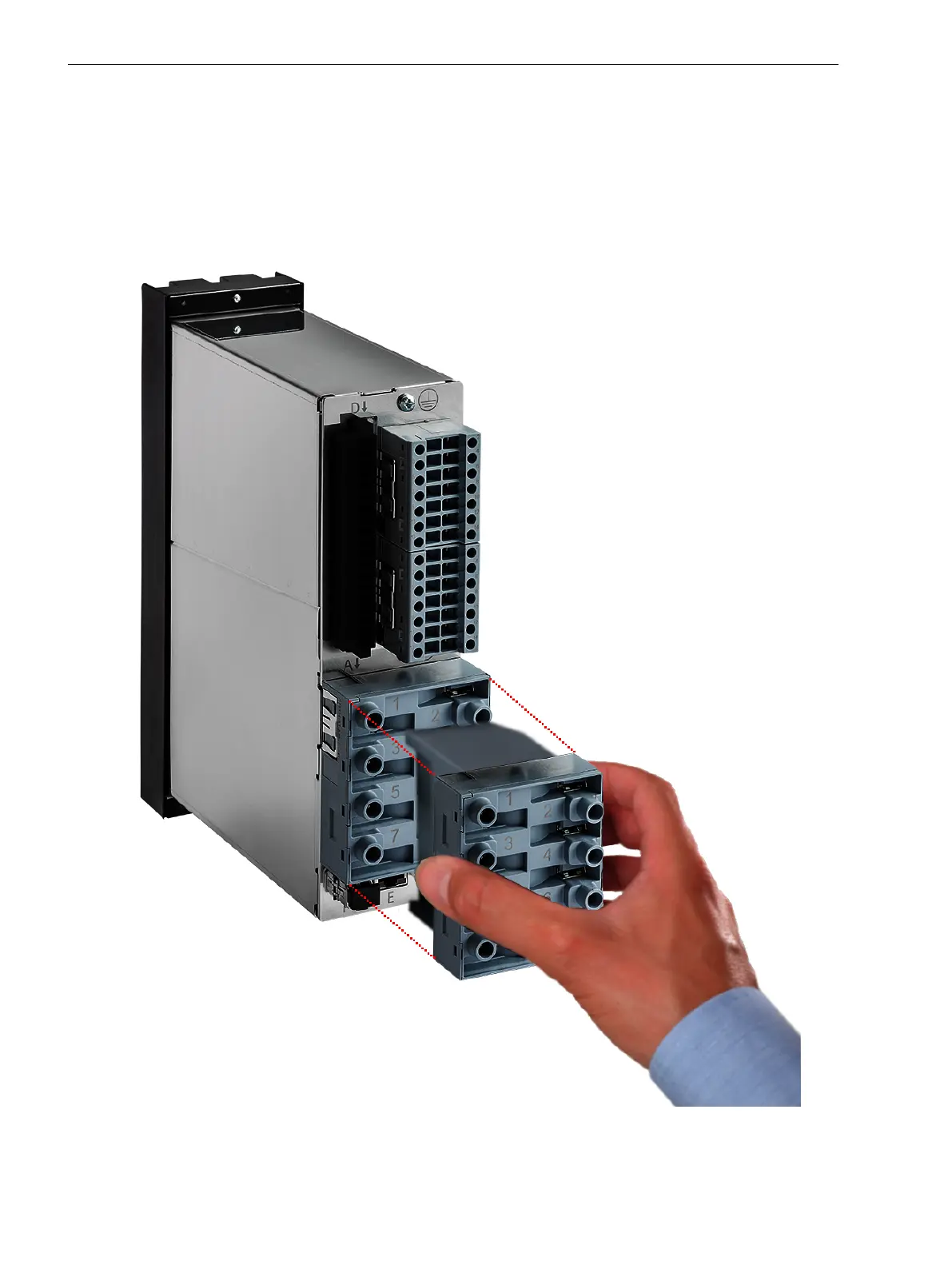

Figure 2-10
Removed Current Terminal Block, with a SIPROTEC 5 Device as an Example
2.4
Forms of Devices and On-Site Operation Panels
2.4 Terminals
28 SIPROTEC 5 Compact, Hardware Description, Manual
C53000-G5300-C002-3, Edition 12.2021
