NOTE
You can read the type of the current transformer used on the side of the terminal block, for example 3xI
1xIE. The reference number is located on the connector interface and can only be read when removed.
•
C73334A 1D285 1 = 4 protection-class current transformers
•
C73334A 1D286 1 = 3 protection-class current transformers and 1 instrument transformer
Use the cross connector for voltage terminals shown on the right in the following figure for grouping binary
inputs and relay outputs.

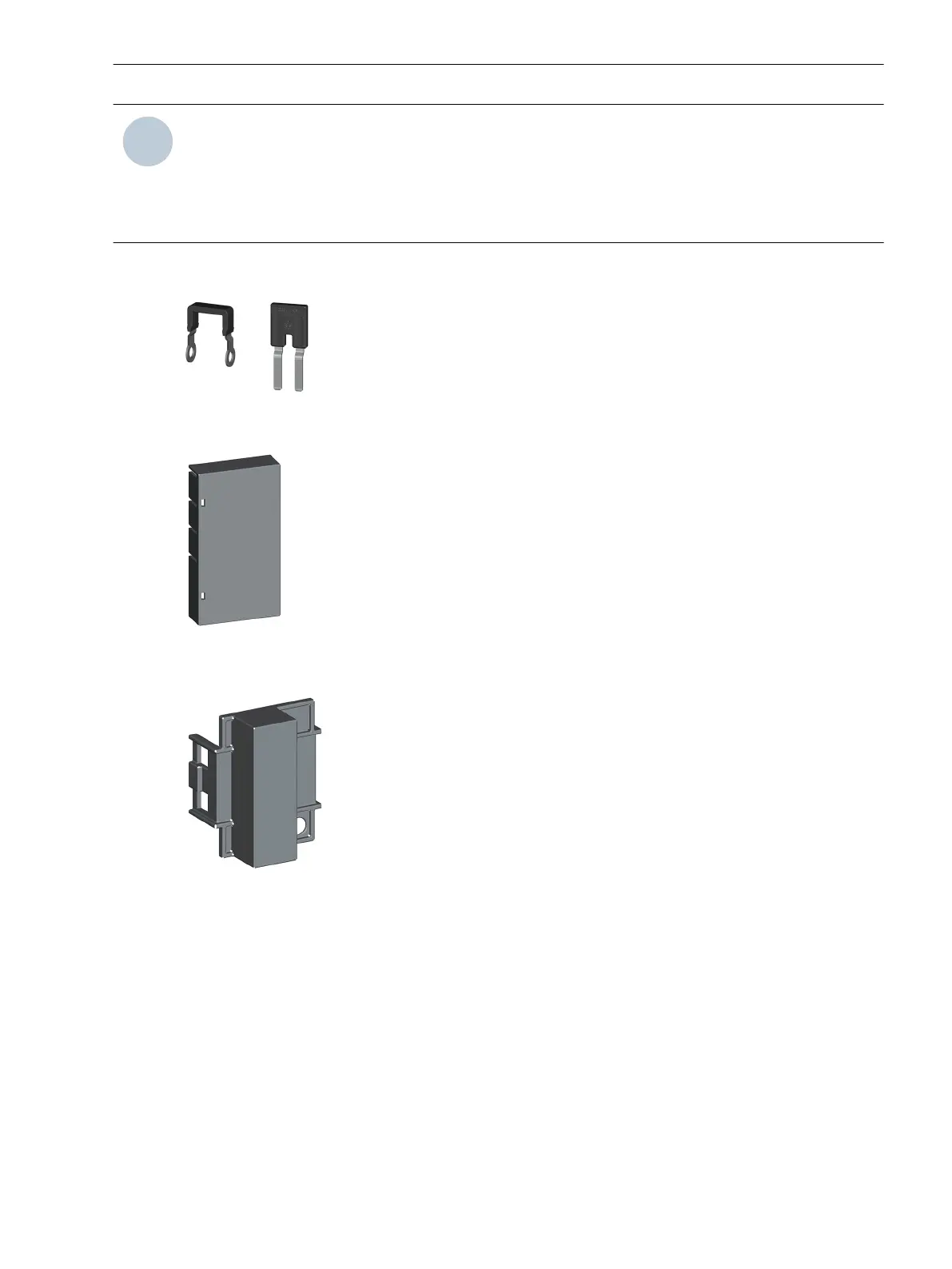

[dwquerve-030211-01.tif, 1, --_--]
Figure 5-6 Cross Connector for Current (Left) and Voltage Terminals (Right)
[dwkappst-030211-01.tif, 1, --_--]
Figure 5-7 Covering Cap for Current-Terminal Block
[dwkappsp-030211-01.tif, 1, --_--]
Figure 5-8 Covering Cap for Voltage-Terminal Block
Cover caps for sealing the connector interface of the terminal block can be ordered as accessories.
Terminal Designations
The current terminals have different designations in DIGSI, the configurator, and the device. The following
table provides an overview of the different terminal designations and order numbers of the terminals.
Working on the Device
5.3 Installing Current and Voltage Terminals
SIPROTEC 5 Compact, Hardware Description, Manual 47
C53000-G5300-C002-3, Edition 12.2021
