2.10 Automatic Reclosure Function (optional)
SIPROTEC, 7SD610, Manual
C53000-G1176-C145-6, Release date 02.2011
139

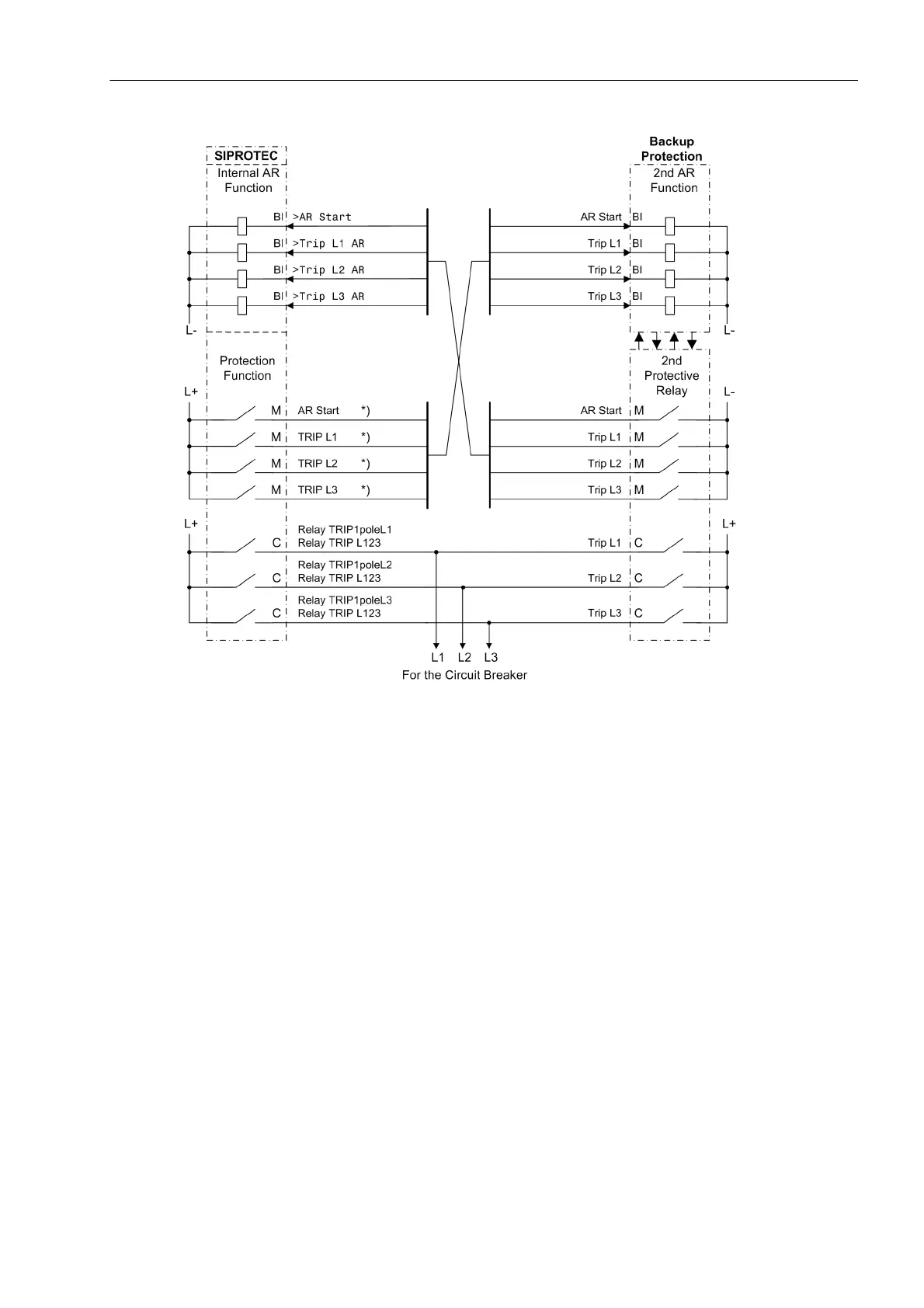

Figure 2-53 Connection example for 2 protection devices with 2 automatic reclosure functions
BI Binary inputs
M Signal output
K Command
*
) for all protection functions operating with AR.
