Appendix
A.2 Terminal Assignments
SIPROTEC, 7SD610, Manual
C53000-G1176-C145-6, Release date 02.2011
377
A.2 Terminal Assignments
A.2.1 Housing for Panel Flush and Cubicle Mounting
7SD610*-*B/K

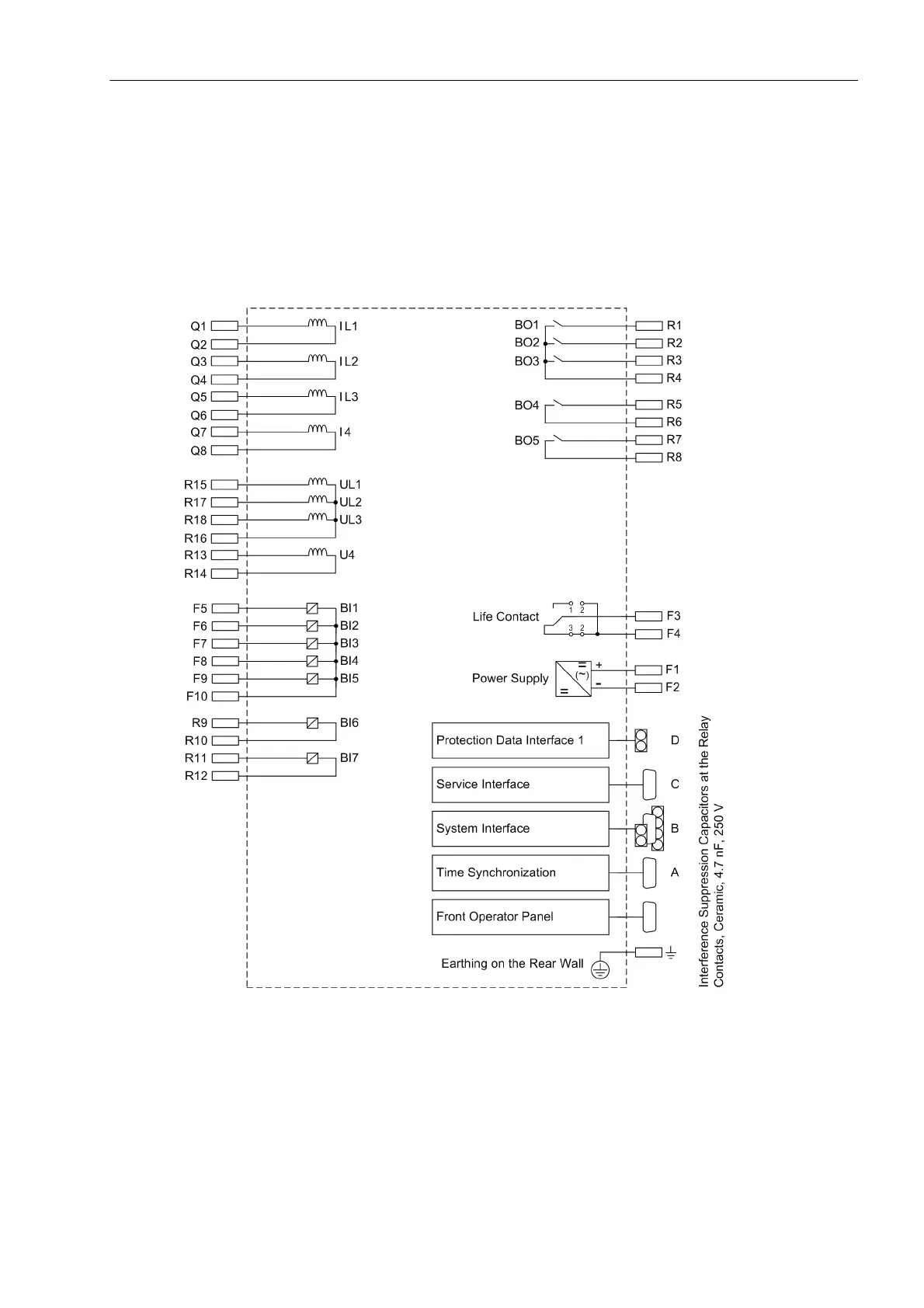

Figure A-1 General diagram for 7SD610*-*B/K (panel flush mounted or cubicle mounted)
