Technical Data
4.8 Backup Time Overcurrent Protection
SIPROTEC, 7SD610, Manual
C53000-G1176-C145-6, Release date 02.2011
348

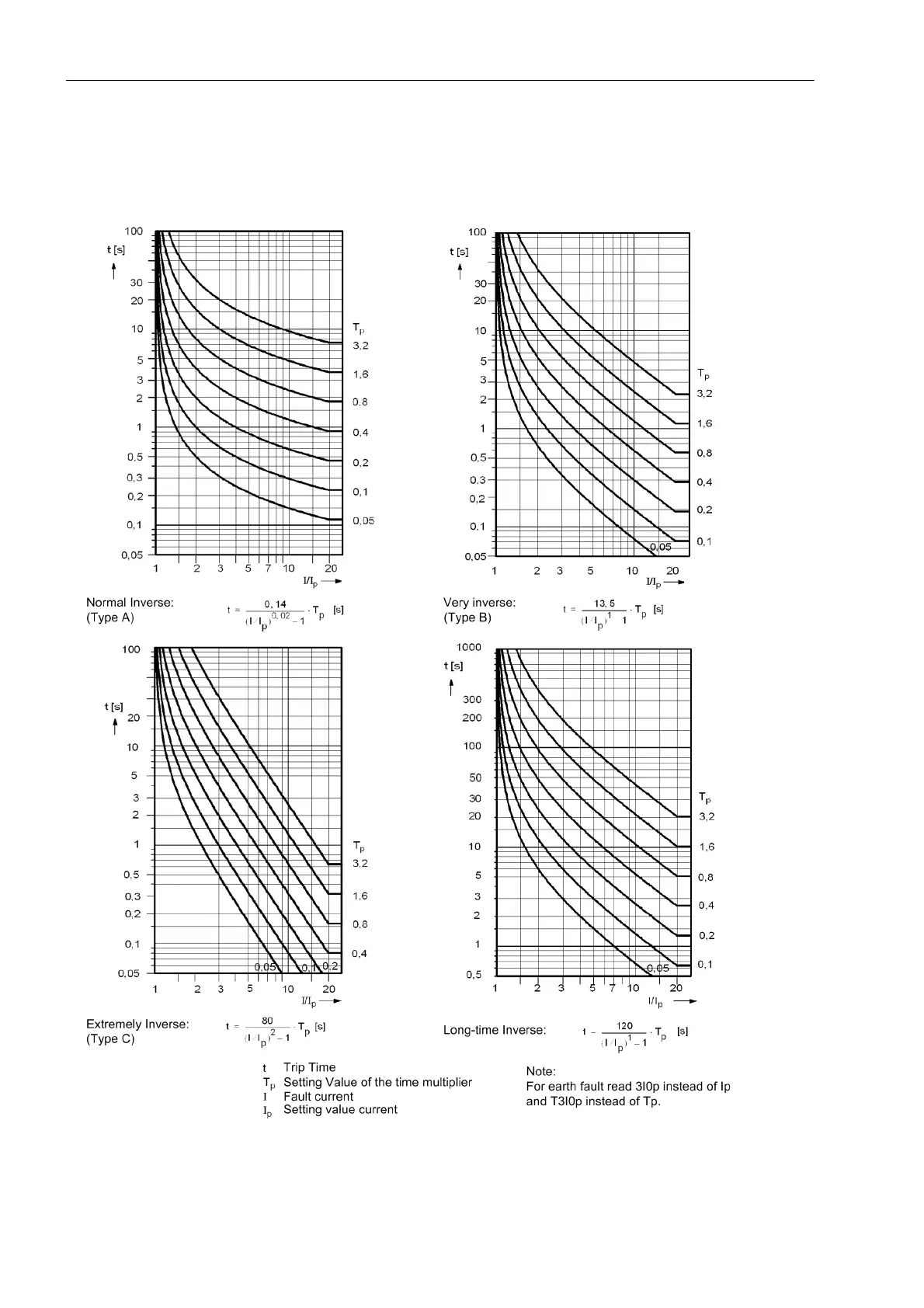

Figure 4-2 Trip time characteristics of inverse time overcurrent stage, acc. IEC (phases and earth)
