Siemens SIRIUS 3RT2 - OFF-Delay with Control Signal

Functions
5.2 Time-delayed switching of contactors
SIRIUS 3RA28 function modules for mounting on 3RT2 contactors
Manual, 02/2019, A5E03656507620A/RS-AD/005
29
5.2.2 OFF-delay with control signal
Contacts
Function modules are available with the following contacts:
Time-delayed switching of
contactors
3RA2812-.DW10 1 semiconductor output (NO
contact)
3RA2832-.DG10 1 semiconductor output (NO
contact)
3RA2832-.DH10 1 semiconductor output (NO
contact)
Time-delayed switching of
auxiliary contacts
3RA2814-.AW10
1 CO contact
3RA2814-.FW10
1 NC contact and 1 NO contact
Time ranges
The function modules support time-delayed switching from 0.05 to 100 s.

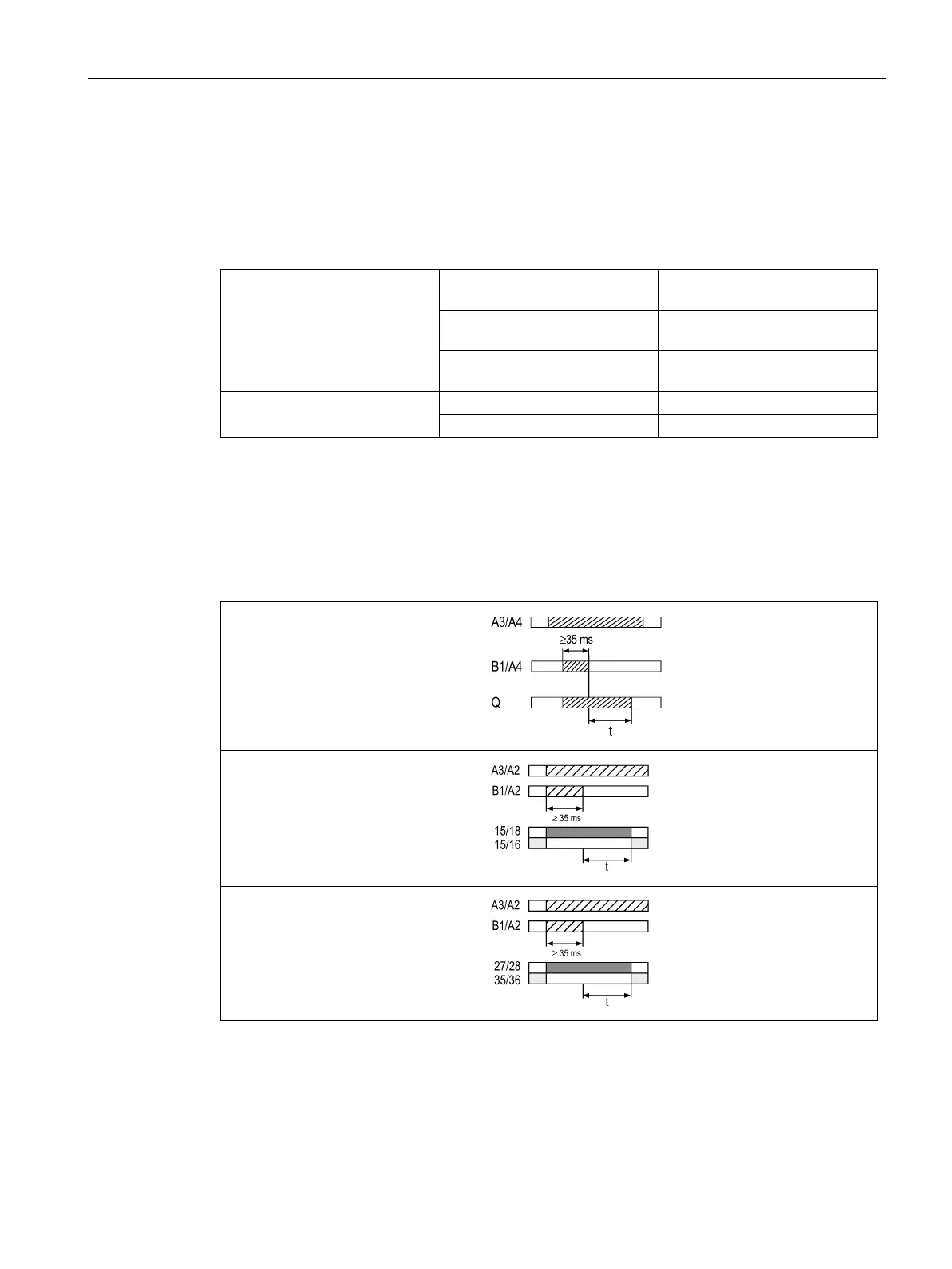

Function charts
3RA2812-.DW10
3RA2832-.DG10
3RA2832-.DH10
3RA2814-.AW10
3RA2814-.FW10
