Siemens SIRIUS 3RT2 - Star-Delta (Wye-Delta) Modules

Dimension drawings
B.4 Star-delta (wye-delta) modules
SIRIUS 3RA28 function modules for mounting on 3RT2 contactors
80 Manual, 02/2019, A5E03656507620A/RS-AD/005
B.4 Star-delta (wye-delta) modules
①
Star-delta (wye-delta) function module (mounted)
②
Contactor
③
Coupling modules
④
Basic module

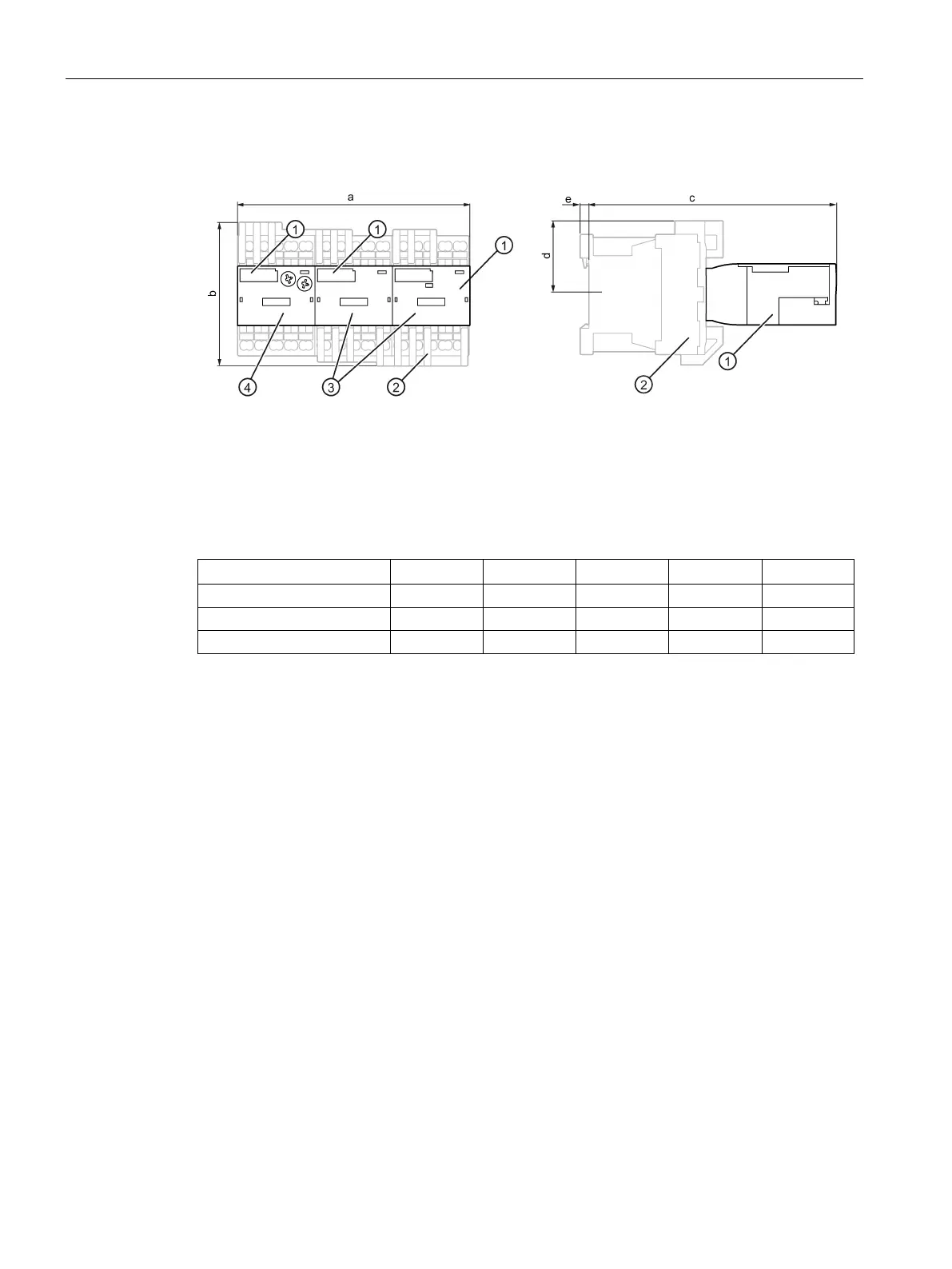

Figure B-3 Star-delta (wye-delta) function module with spring-loaded terminal
Article number
a
b
c
d
e
3RT2.1.-2
135
84
142
43
5
3RT2.2.-2 (AC)
135
114
166
59
5
3RT2.2.-2 (DC)
135
114
176
59
5
