8.3.2 Conductor cross-sections for spring-loaded connection systems
Conductor cross-sections for spring-loaded connection systems
The tables below define the permissible conductor cross-sections for main terminals and
auxiliary conductor connections in sizes S00, S0, S2 and S3 for spring-loaded connection
systems.

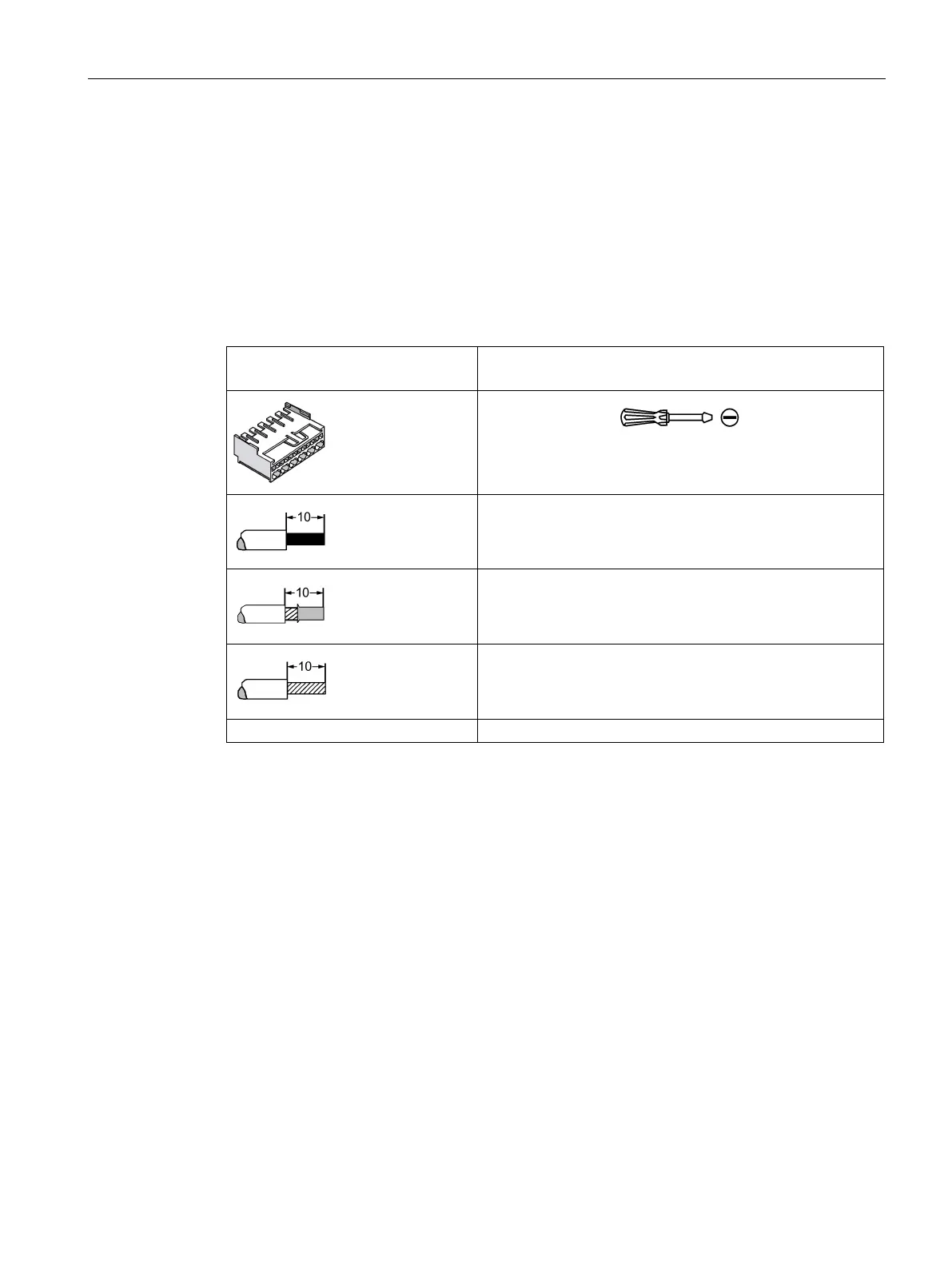

Table 8- 2 Conductor cross-sections for spring-loaded terminals
Connection type
3RA2811, 3RA2812, 3RA2813, 3RA2814, 3RA2815,
3RA2831, 3RA2832
3RA2908-1A
(3.0 x 0.5) mm
2 x (0.25 … 1.5) mm
2
2 x (0.25 … 1.5) mm
2
2 x (0.25 … 1.5) mm
2
AWG
2 x (24 to 16)
