7.3 Mounting
SIRIUS 3RA28 function modules for mounting on 3RT2 contactors
44 Manual, 02/2019, A5E03656507620A/RS-AD/005

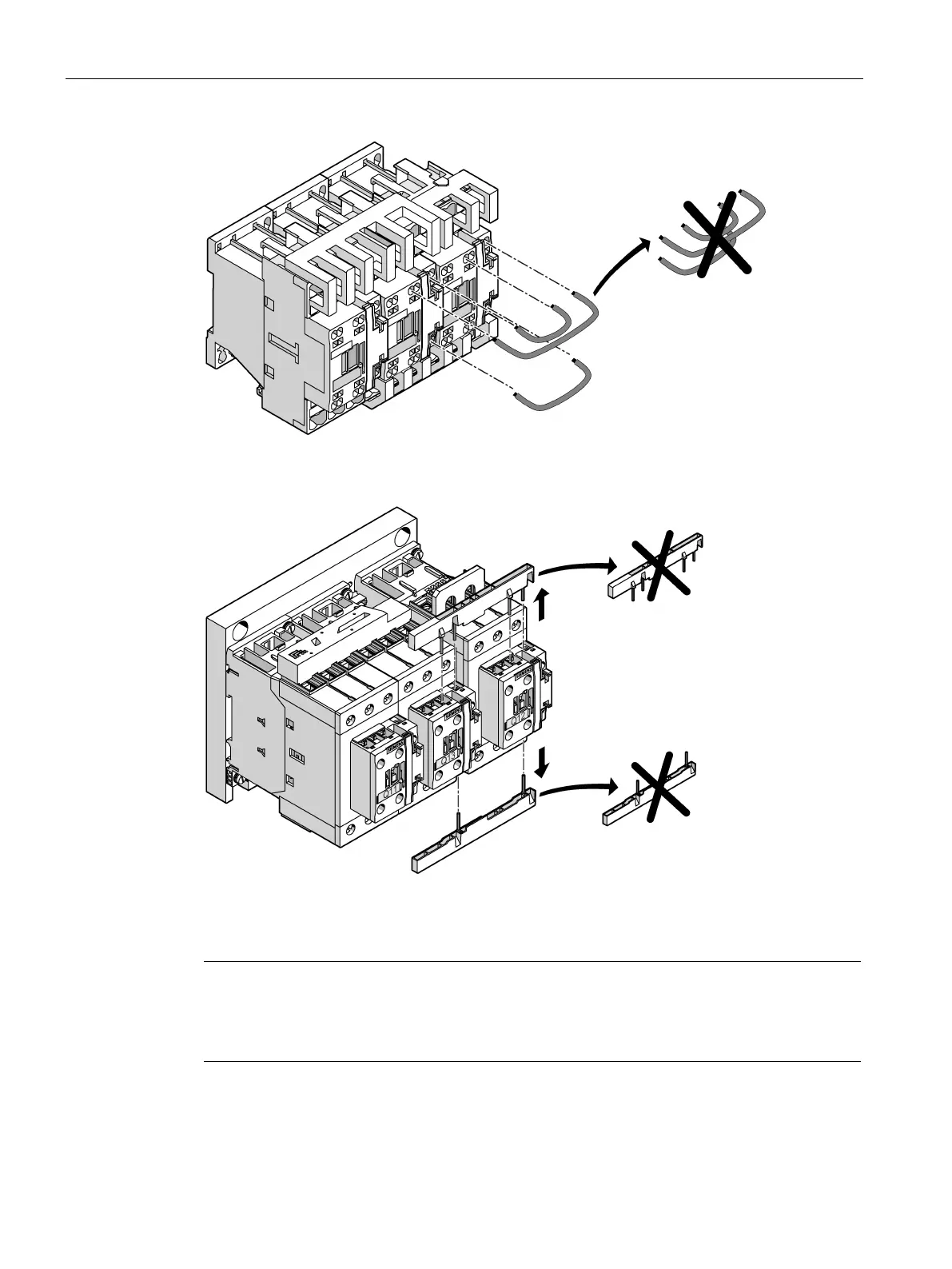

Figure 7-4 Removal of the wiring modules for connecting the control current paths on a contactor
assembly for star-delta (wye-delta) start with spring-loaded connections of size S0
Figure 7-5 Removal of the wiring modules for connecting the control current paths on a contactor
assembly for star-delta (wye-delta) start with screw-type connections of size S2
Note
Removal of the wiring modules
The procedure for removing the wiring modules on a contactor assembly for star
-delta (wye-
delta) start of size S3 is identical.
