C.1 Dimension drawings 3RR2 monitoring relay
3RR2.41-1A.30 (screw connection, S00)






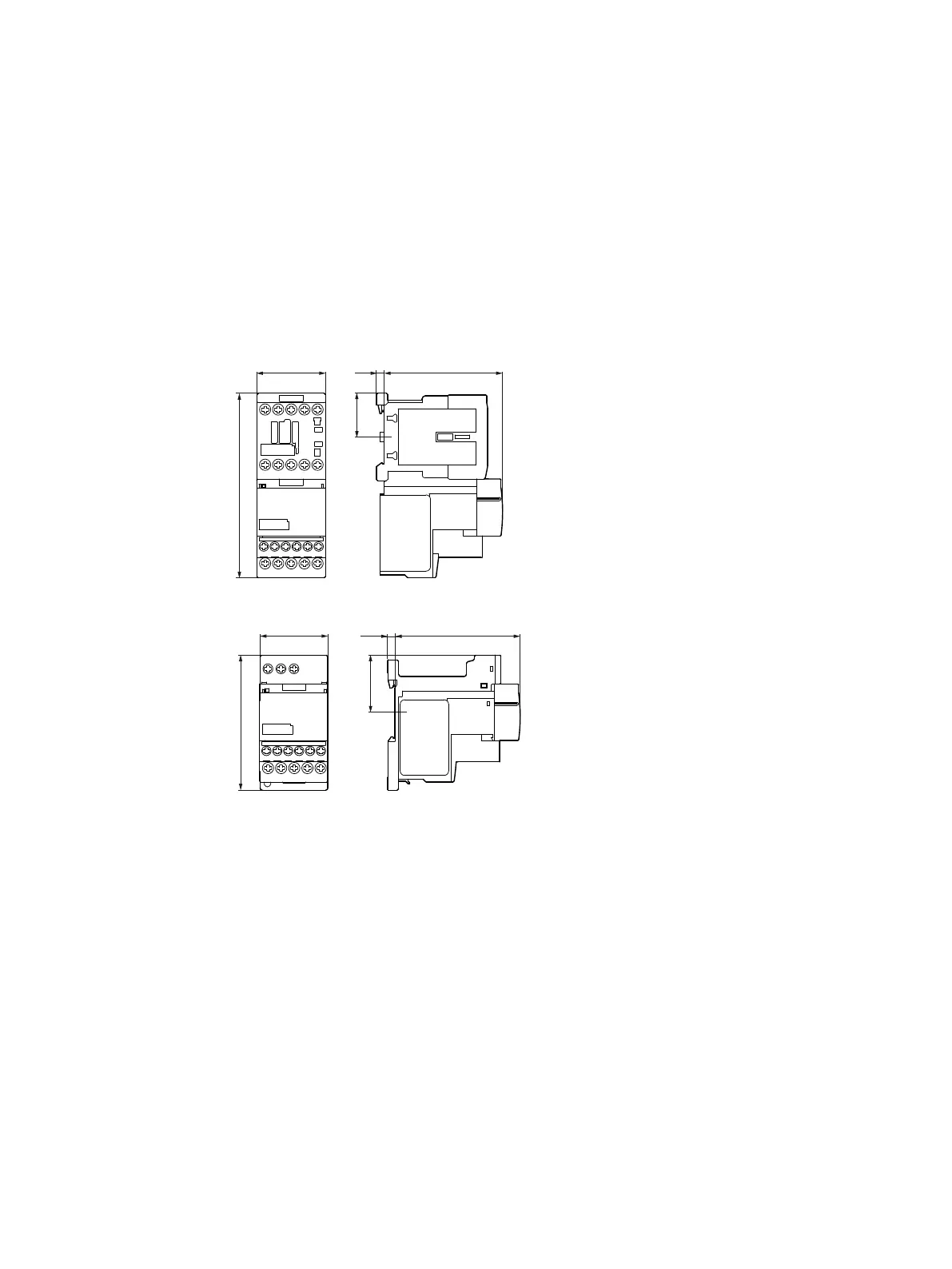

Figure C-1 3RR2.41-1A.30 with contactor





Figure C-2 3RR2.41-1A.30 with terminal support for stand-alone assembly
