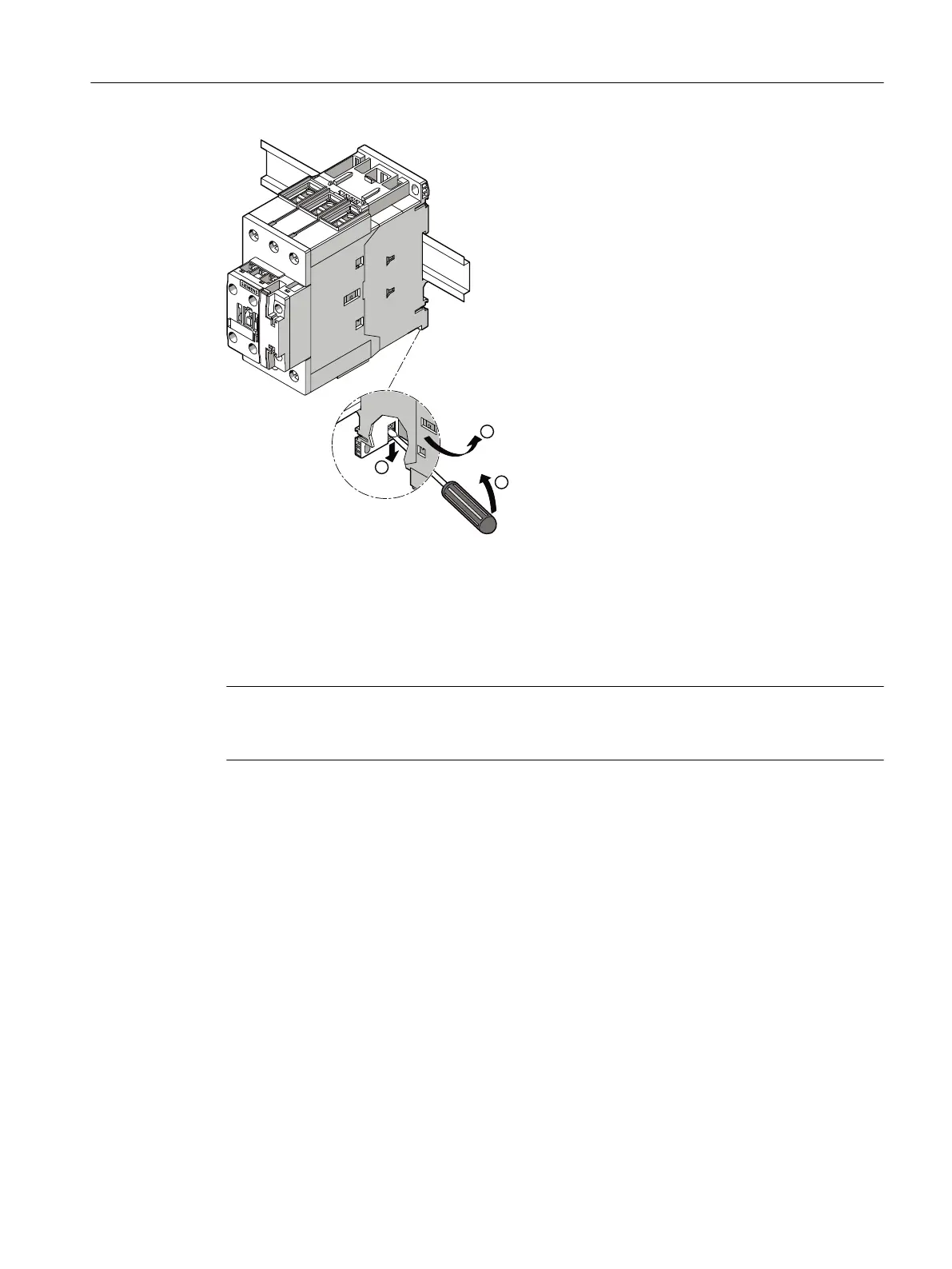

③ Push the release slide down with a screwdriver
④
⑤ Swing the contactor upwards to remove it
Separately mounted
Note
The accessories required for separate mounting are described in the Chapter "Terminal support
for stand-alone assembly (Page 242)".
3.4.2 Mounting the 3UG4 monitoring relay
Mounting position
It can be mounted in any position.
Screw mounting
The illustration below shows how to screw-mount the 3UG4 monitoring relay.
System overview
3.4 Mounting / removal
SIRIUS 3UG4 / 3RR2 monitoring relay
Equipment Manual, 07/2021, NEB927043002000/RS-AD/005 37
