Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
Manual, 09/2016, A5E03656507520A/RS-AB/003
153

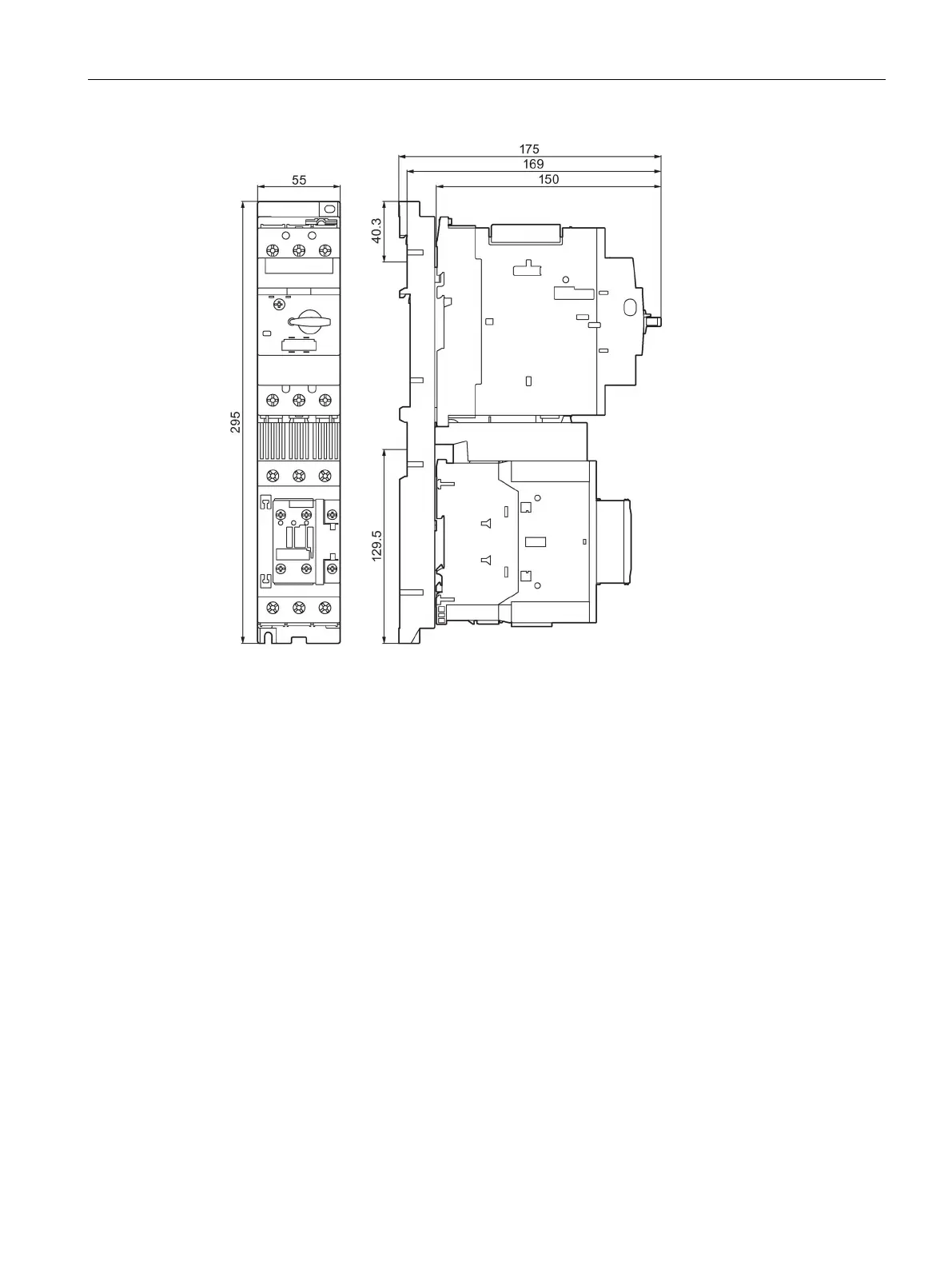

Figure C-17 Direct-on-line starter S2, screw-type connection system
3RA2130-4.A..-...., DIN rail adapter 3RA2932-1AA00
