Dimension drawings (dimensions in mm)
C.2 3RA2 fuseless load feeders – Size S00 to S3 for DIN rail
SIRIUS - SIRIUS 3RA load feeders
154 Manual, 09/2016, A5E03656507520A/RS-AB/003

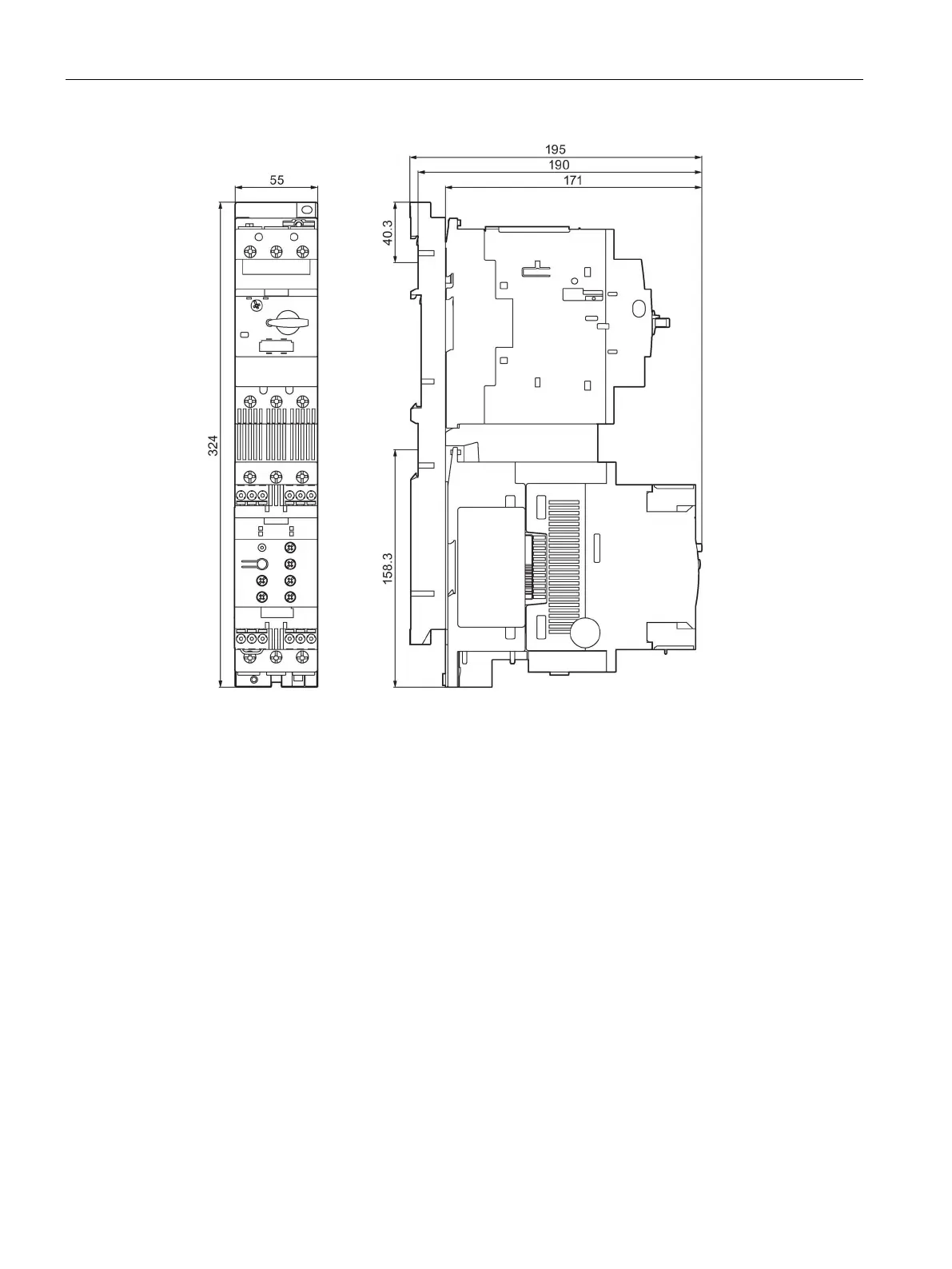

Figure C-18 Direct-on-line starter S2 with 3RW4.3 soft starter, screw-type connection system, DIN rail
adapter 3RA2932-1CA00
