Siemens SITRANS P DS III Compact Operating Instructions

SITRANS P DS III/P410 (7MF4.33.. 7MF4.34.. 7MF4.35..)
A5E03434626-04, 05/2015
7
Layout of nameplate with approval information
The nameplate with approval information is on the opposite side. This nameplate shows the hardware and firmware
versions, for example. You must also observe the information in the relevant certificate for a pressure transmitter version for
use in hazardous areas.

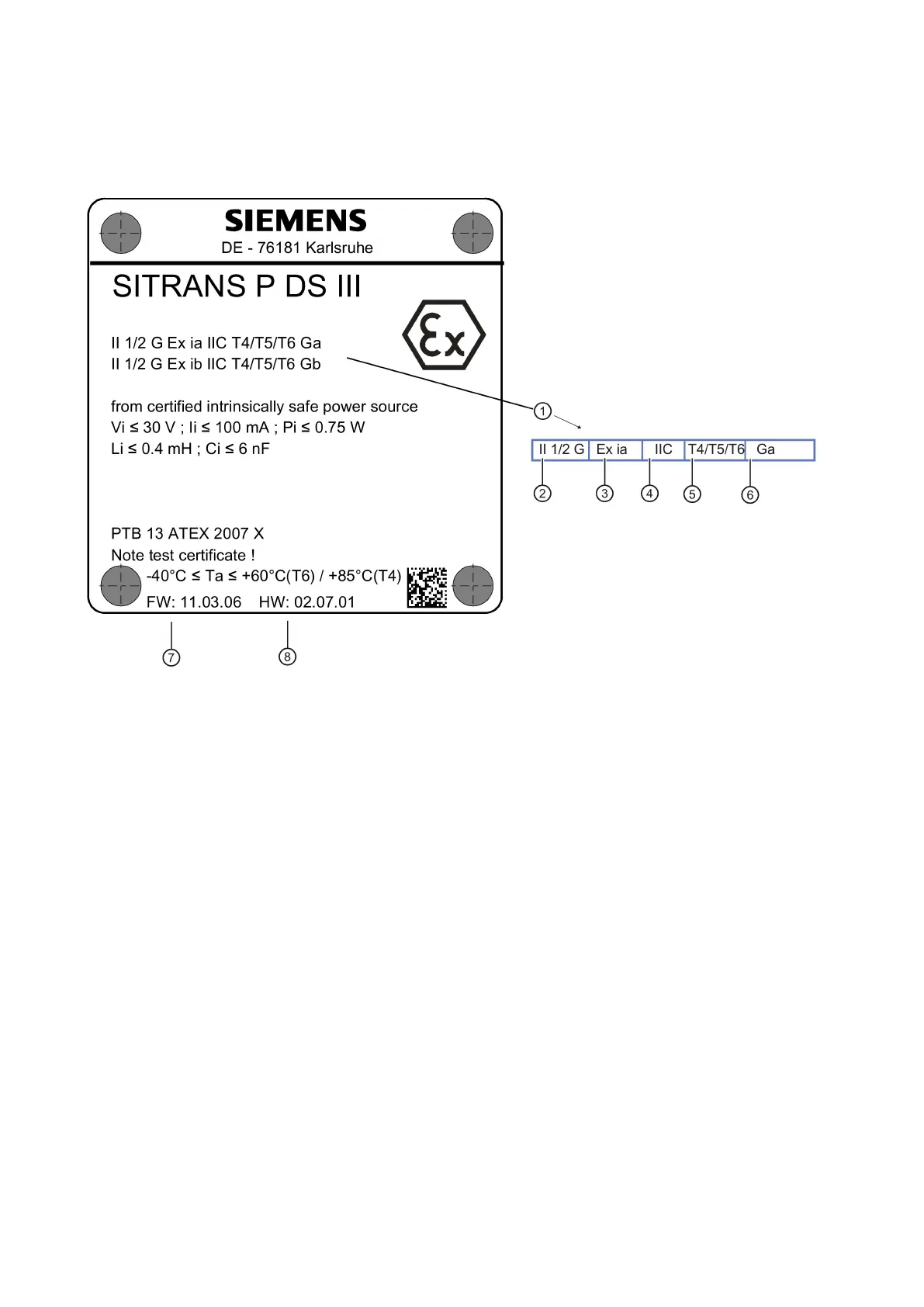

Figure 1-3 Example for approval plate SITRANS P DS III

Siemens SITRANS P DS III Specifications

General

Type	Pressure Transmitter
Communication	HART, PROFIBUS PA, FOUNDATION Fieldbus
Housing material	Aluminum or Stainless Steel
Measured variable	Pressure
Output signal	4...20 mA HART, PROFIBUS PA, Foundation Fieldbus
Ambient temperature range	-40 to +85 °C
Power supply	10.5...45 V DC
Protection class	IP66, IP67
Process connection	Various
