6.5 Connection of Siebert display via RS485
SIWAREX WP321
30 Manual, 07/2014, A5E33715669A-02
6.5
Connection of Siebert display via RS485
A Siebert display S102 with the order no. S102-W6/14/0R-000/0B-SM can be connected to
the RS485 interface of the weighing module. Connect a 24 V DC supply to the Siebert
display, and connect the latter to the RS485 interface of the weighing module as shown in
the following diagram.

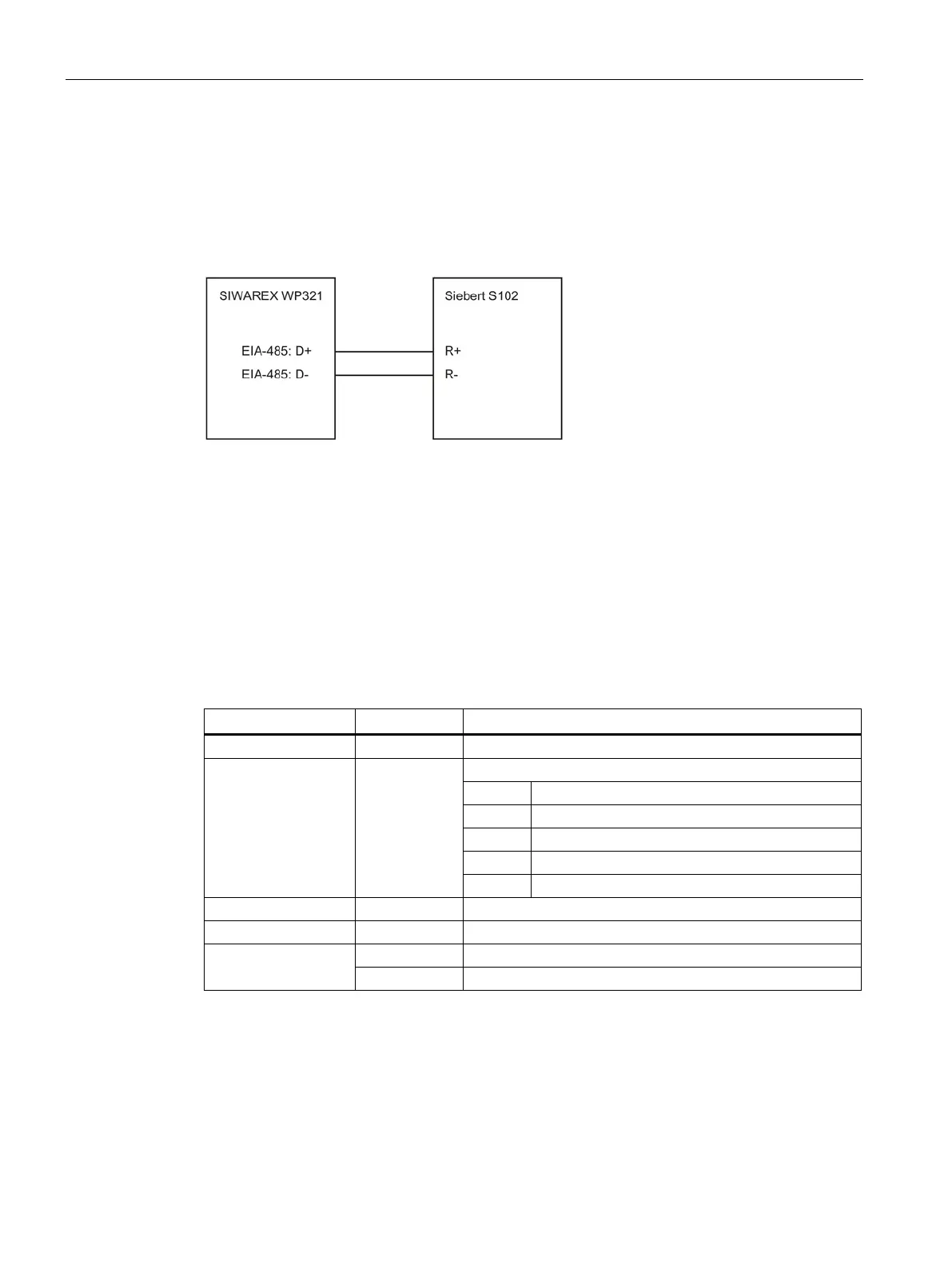

Figure 6-4 Connection of Siebert display S102
The RS485 interface in the DR13 of the SIWAREX WP321 is set as follows:
● Baud rate: 9 600 bit/s
● Character parity: Even
● Number of data bits: 8
● Number of stop bits: 1
The S102 is set as follows:
Table 6- 3 Settings of Siebert display S102
Menu item
Setting
Meaning
1 Interface
485
RS485 interface
9 Station address
01
Address meaning:
Address
Weight value
01 Weight
02 Total
03 Net
04 Tare
t Timeout
2
e.g. timeout after 2 seconds
C
0.0
No decimal point
F Segment test
----*
No segment test when switching on
8.8.8
Segment test when switching on
