SONOLINE G20 System Delivery Procedure 21
Page 21 of 26
Medical Solutions USA, Inc.
10. Press Print on the front panel of the printer and verify that the image prints.
11. Press Copy on the front panel of the printer and verify that the image prints.
NOTE
Contact the Siemens Uptime Service Center if there are any prob-
lems with the printer.
Verify VCR Operation (if installed) 0
1. Verify the cable connections between the HS-MD3000 S-VCR and the G20 system.
- Verify that the AC power cord is connected between the VCR AC inlet and the OEM
shelf outlet.
2. Verify the VCR cables are connected between the VCR and the I/O module.

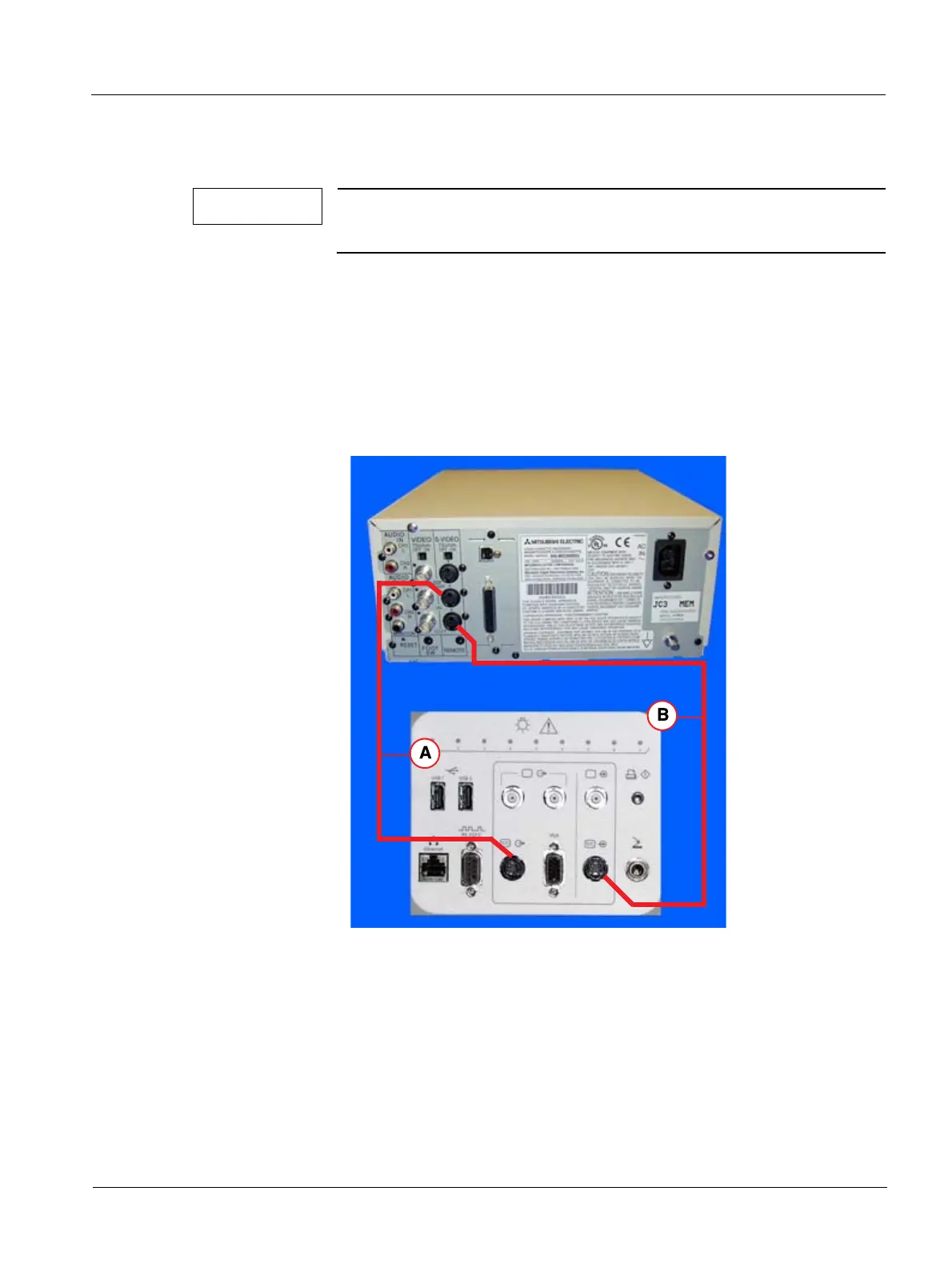

Fig. 22: VCR Cable Connections (from the I/O Module to the VCR)
Pos. A S-Video out
Pos. B S-Vidoe in
