ST950 Plus+ User Manual
Page 158 of 176
667/HE/53000/000

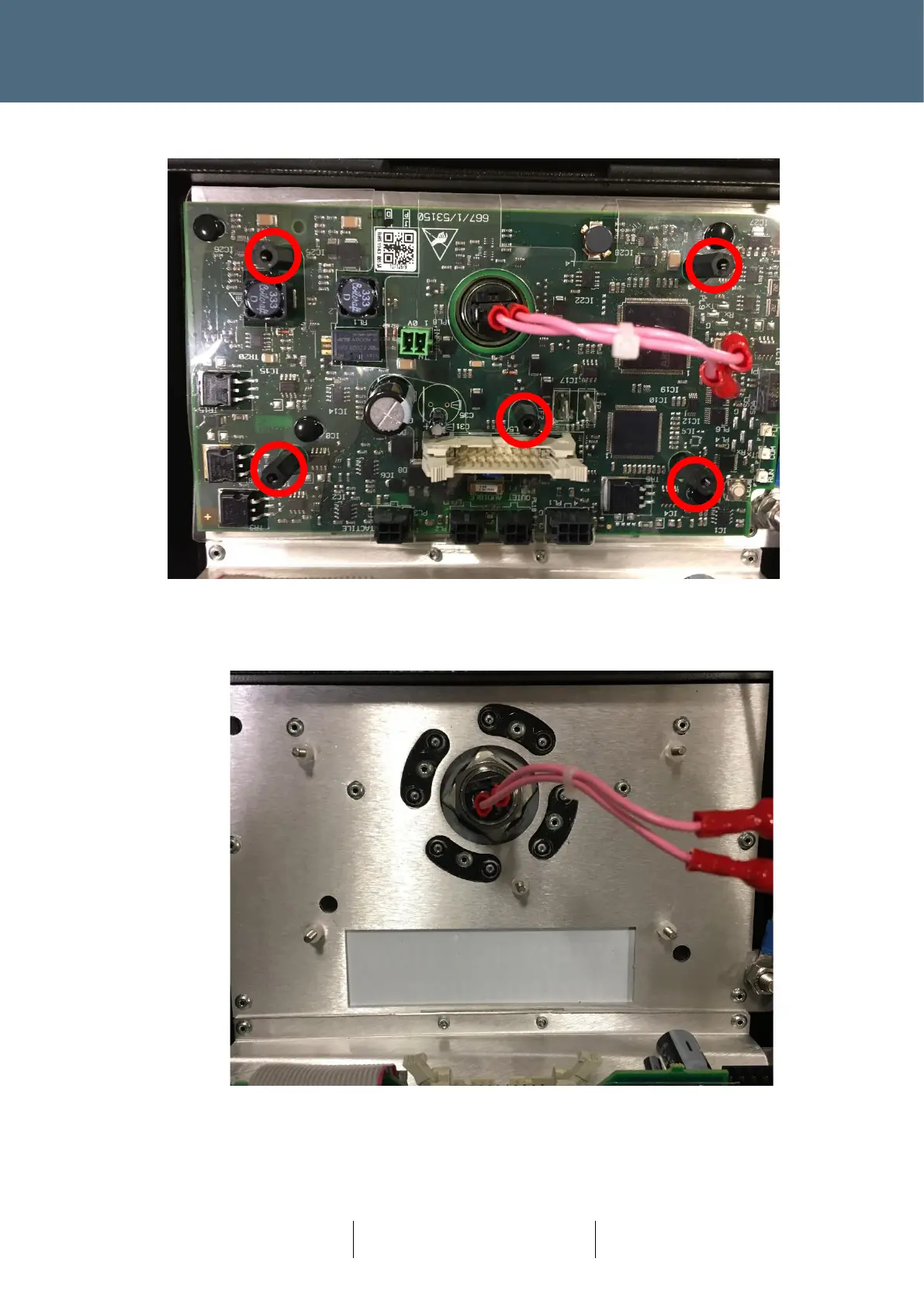

4. Remove the Five Board Fixings
Figure 76 : Wait/PDU PCB Mounting Detail
5. Remove PCB
Figure 77 : Wait/PDU PCB Removed
