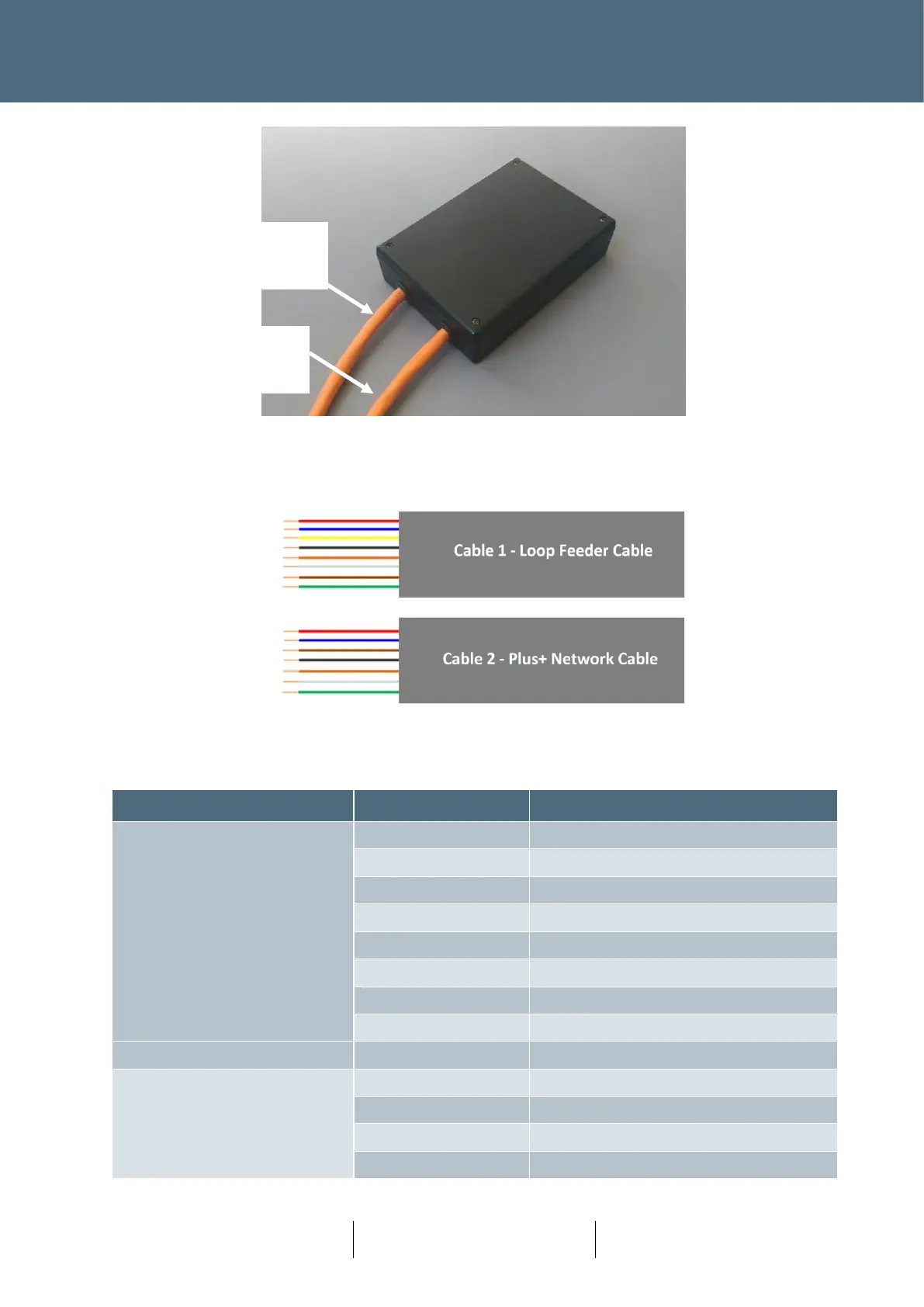

Figure 52 : Smartloop Cables (Loop Feeder and Plus+ Network)
Figure 53 : Cable Interface Detail
Cable
Core
Function
1 – Loop Feeder/Tails Cable
Red
Loop 1
Blue
Loop 1
Yellow
Loop 2
Black
Loop 2
Orange
Loop 3
White
Loop 3
Brown
Loop 4
Green
Loop 4
2 – Plus+ Network Cable
Brown
D+ (upstream)
Black
D- (upstream)
Red
+48V Plus+ Supply
Blue
0V Plus+ Supply
Cable 1 – Loop
Feeder Cable
Cable 2 – Plus+
Network Cable
