Siemens Startdrive V12 SP1

5 Installation and Commissioning
5.1 Connection diagram
SINAMICS G120 as a Speed Axis on the S7-1500
V1.0a, Entry ID: 78788716
34
Copyright  Siemens AG 2013 All rights reserved
5 Installation and Commissioning
5.1 Connection diagram
5.2 Connection diagram

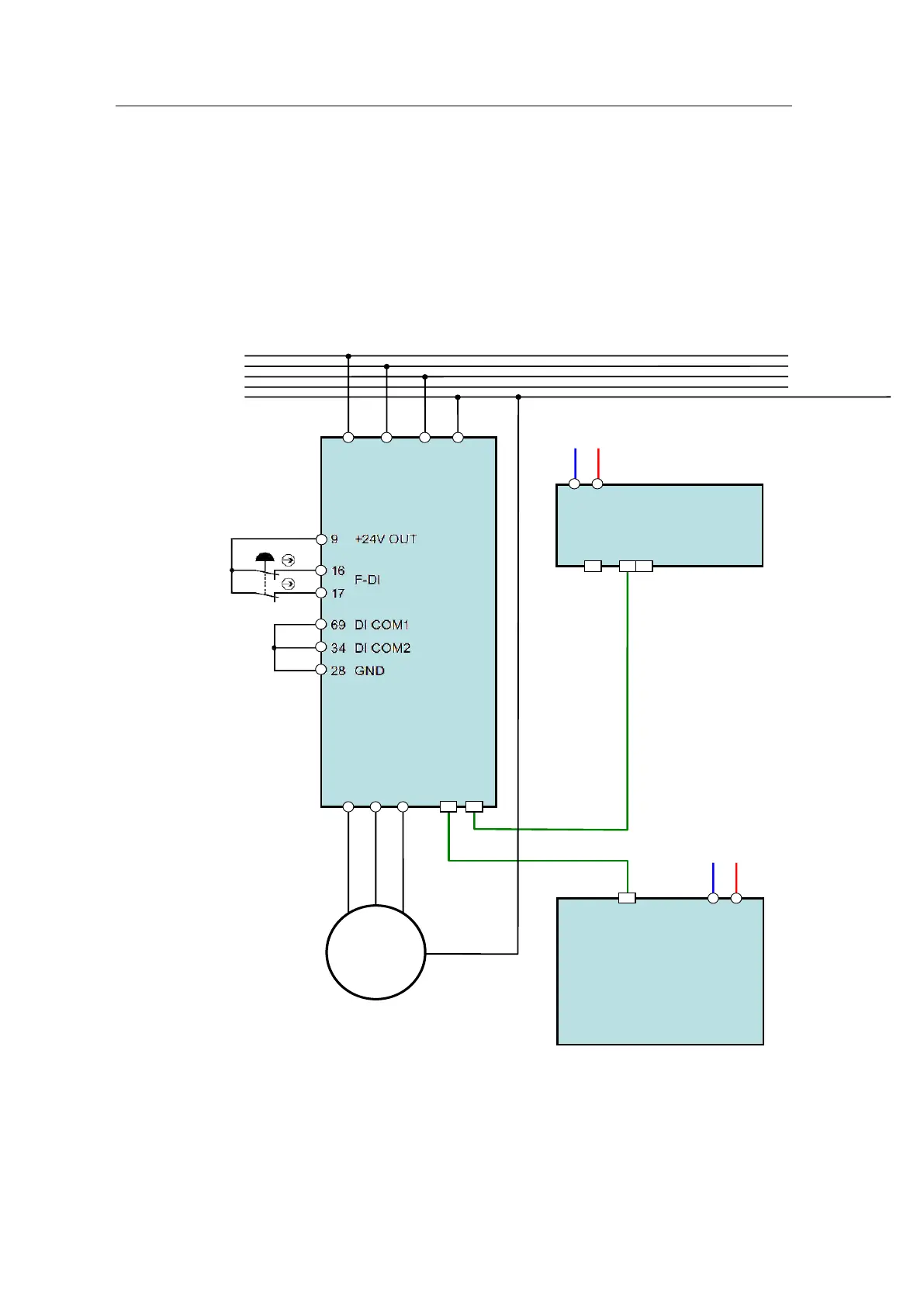

Figure 5-1: Wiring for PROFINET
L1
L2
L3
N
PE
M
Y
L1 L2 L3 PE
U2 V2 W2 PN
PN1 PN 2
PN M L+
24 V DC
SINAMICS
G120C PN
SIMATIC Panel
KTP600
CPU 1516
24 V DC
