6 Operation of the Application
6.2 Operation of the application with a panel
SINAMICS G120 as a Speed Axis on the S7-1500
V1.0a, Entry ID: 78788716
Copyright Siemens AG 2013 All rights reserved
6.2.2.5 Error

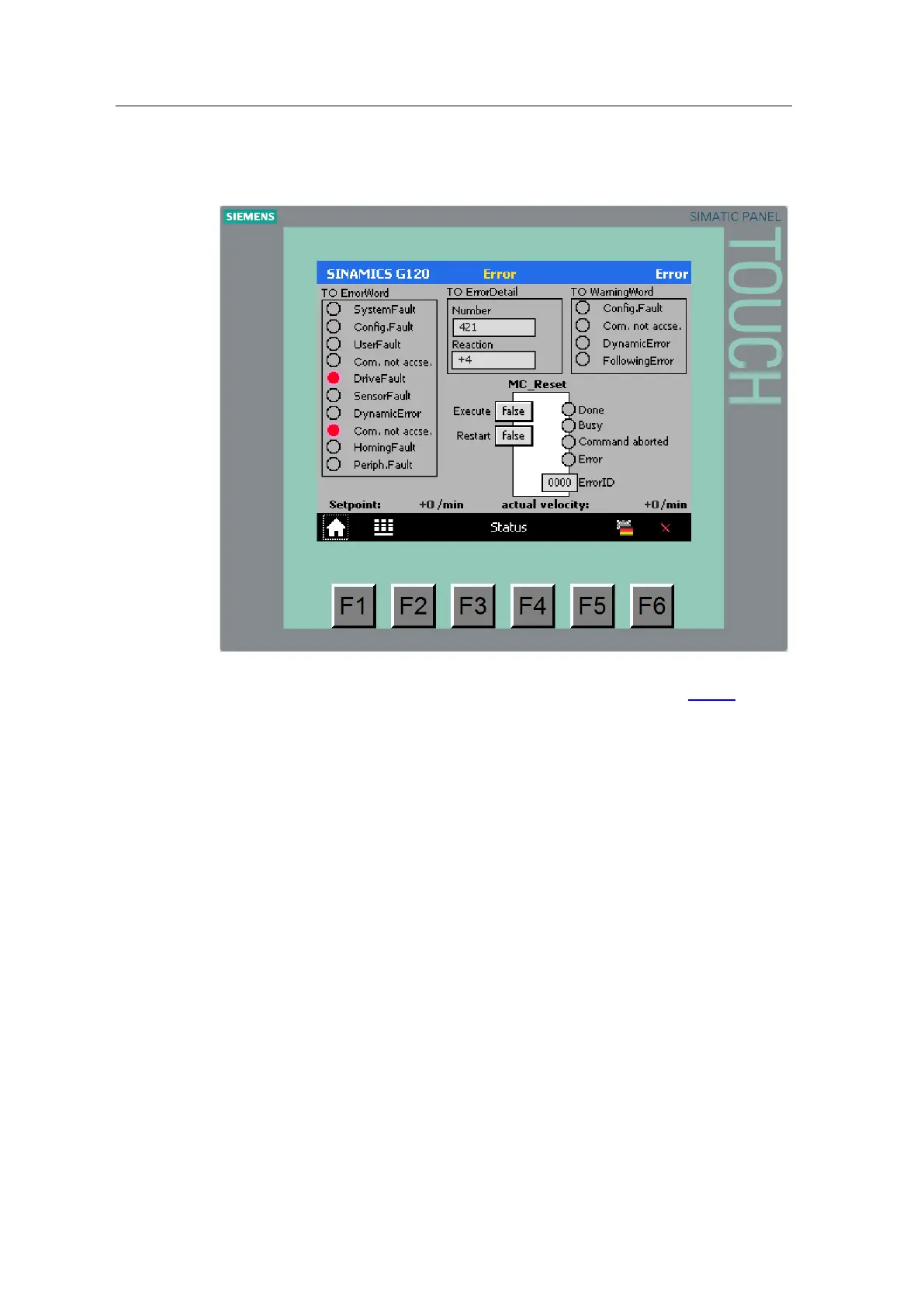

Figure 6-5
This operating screen displays the error bits of the axis.
MC_Reset allows you to acknowledge pending errors. (See chapter 6.2.2.3)
The footer of this screen includes a hot key that allows you to go directly to the
“Status” operating screen.
