6.2.2.4 Status

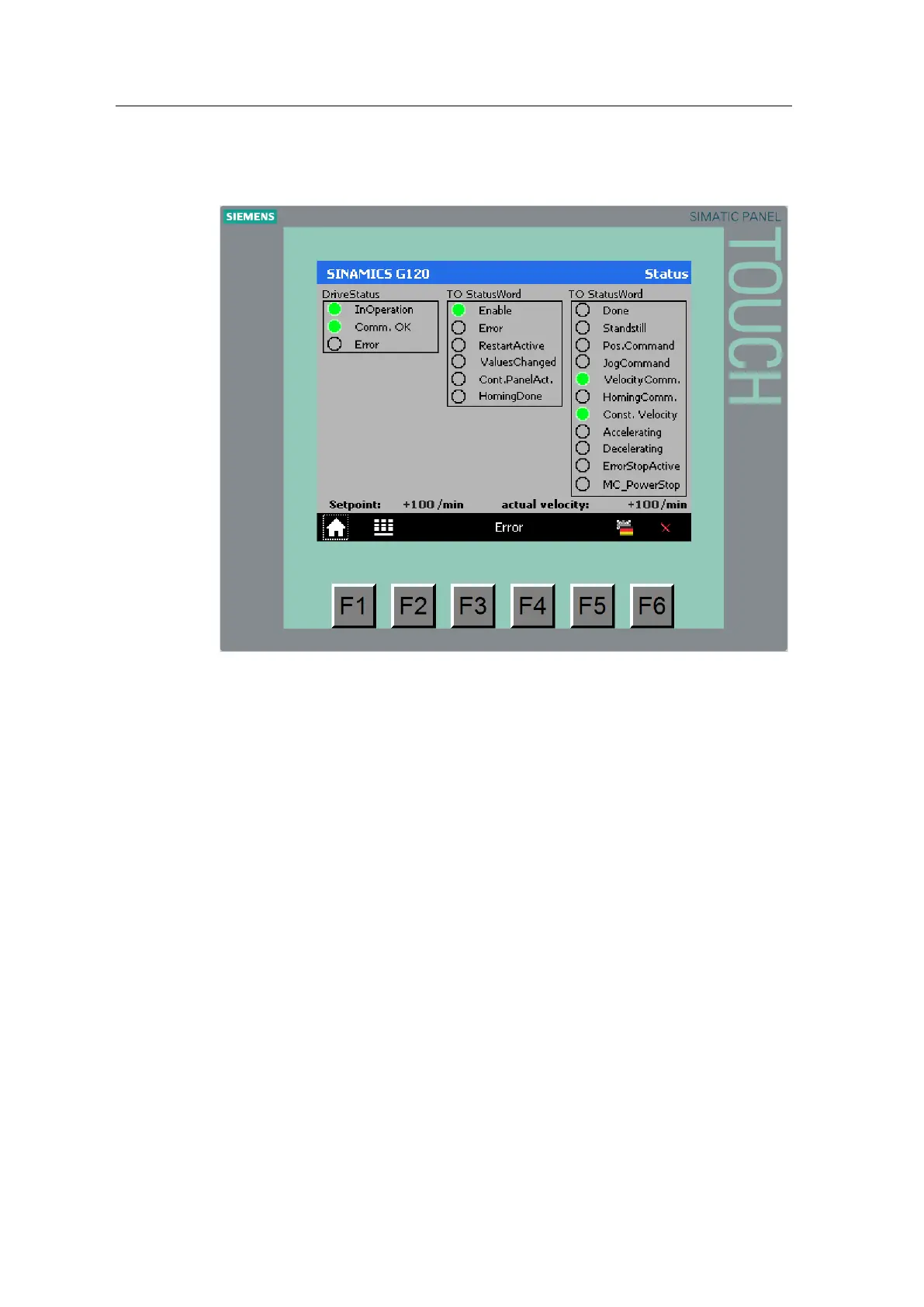

Figure 6-4
This operating screen displays the status bits of the axis.
The footer of this screen includes a hot key that allows you to go directly to the
“Error” operating screen.
