SINAMICS G120 as a Speed Axis on the S7-1500
V1.0a, Entry ID: 78788716
Copyright Siemens AG 2013 All rights reserved
1 Task
1.1 Overview
SIMATIC S7-1500 CPUs support the connection of PROFIdrive-capable drives via
PROFINET or PROFIBUS as a speed axis or positioning axis. The standardized
PLCopen blocks make configuration particularly easy.
This application example shows how to configure and commission the SINAMICS
G120 and the SIMATIC S7-1500 using the technological functions of the SIMATIC
S7-1500.
Overview of the automation task

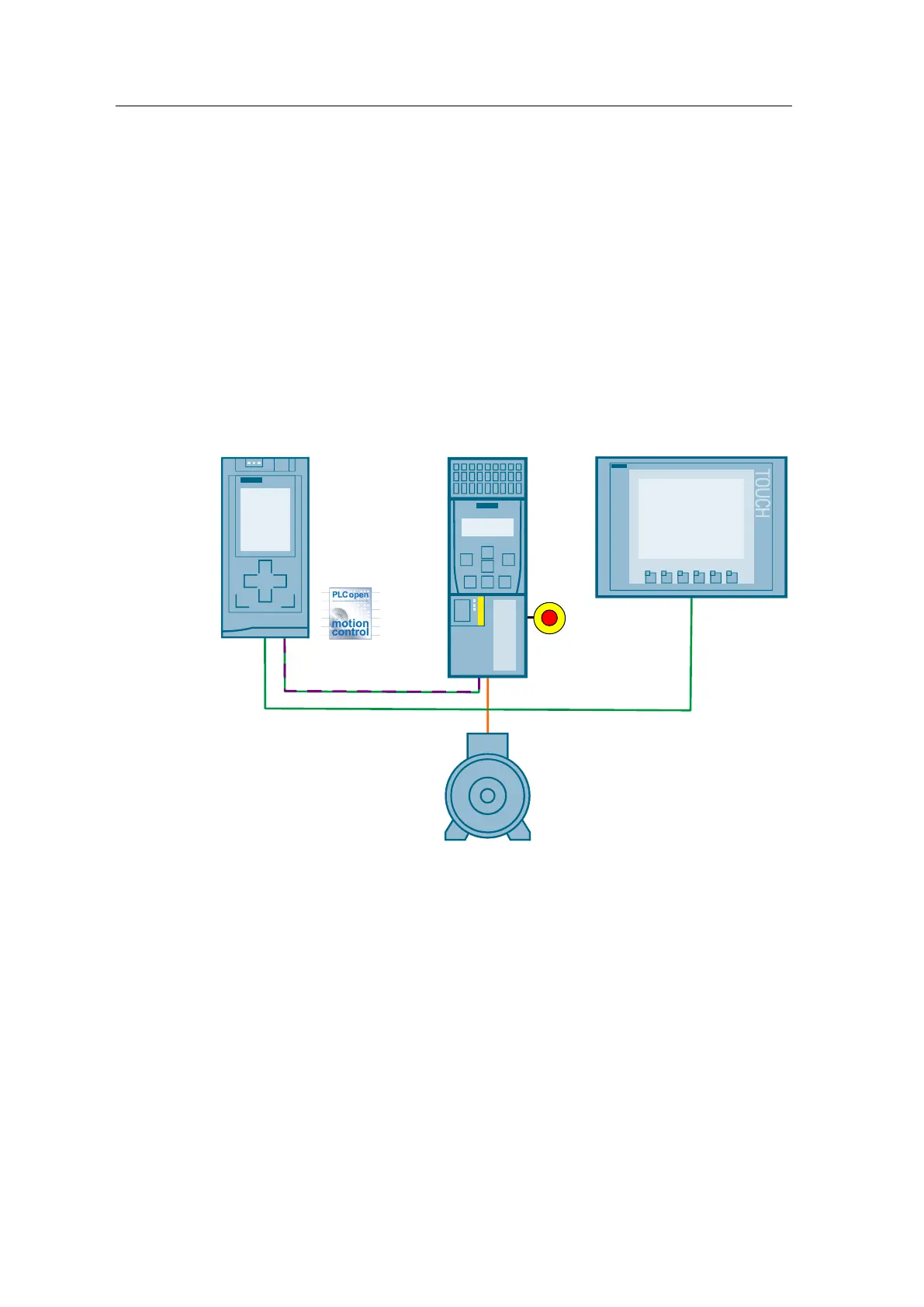

The figure below provides an overview of the automation task:
Figure 1-1
