5.1.2 Operating Panel
The centrifuge is started directly via the operating panel. When the centrifuge is
switched on, all of the operating keys and displays will be illuminated for a short
time. It is now ready for operation.
5.1.2.1 Name Plate

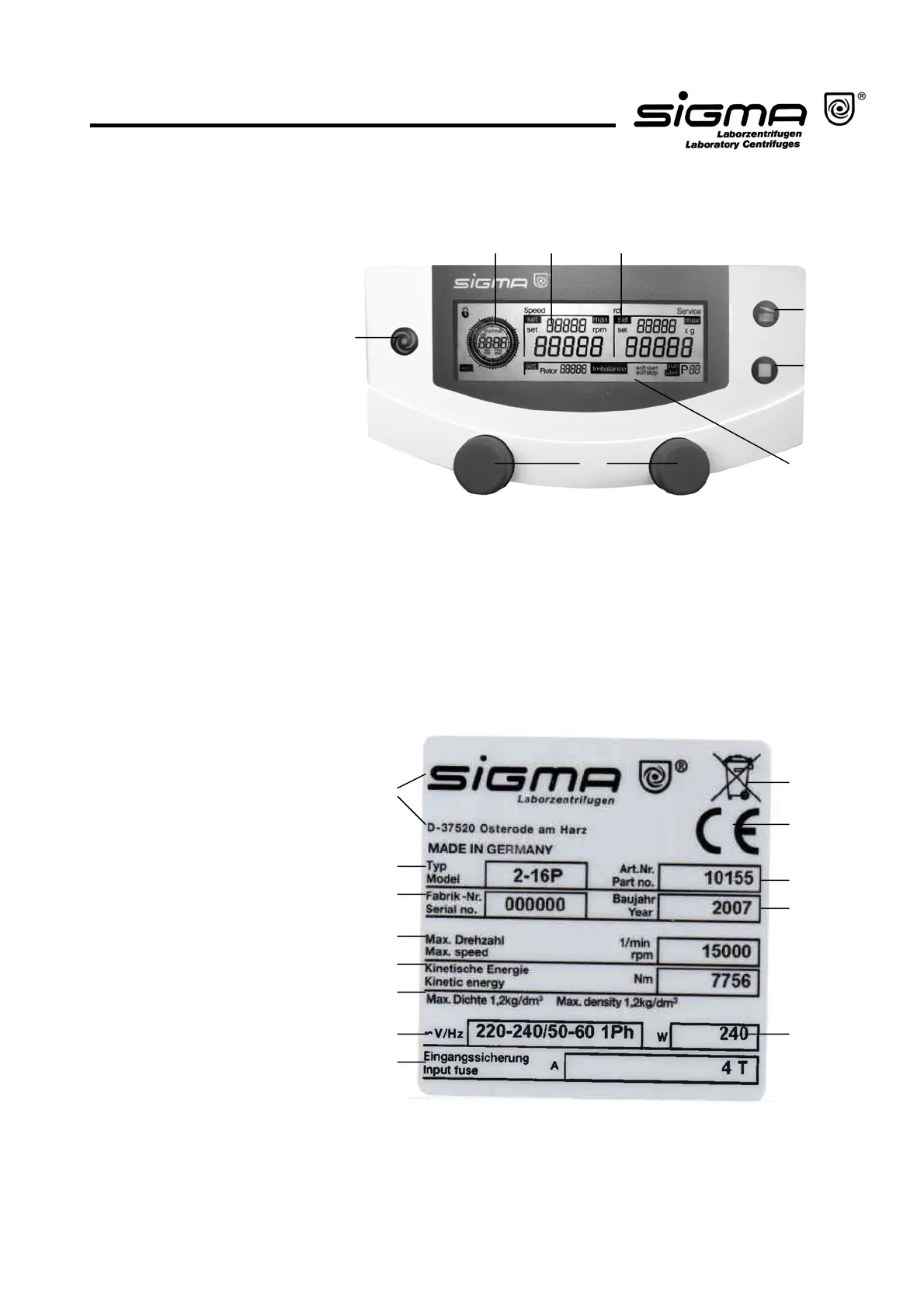

1 Start key
2 Time Display
3 Speed Display
4 RCF Display
5 Lid key
6 Stop key
7 Display for rotor,
deceleration curve and
programs
8 Rotary knobs
1
23 4
5
6
78
1
2
3
4
5
6
7
8
9
10
13
1 Manufacturer and
registered office
2 Type name
3 Serial number
4 Max. speed
5 Kinetic energy
6 Max. density
7 Nominal voltage
8 Input fuse
9 Symbol for special disposal
(see chapter 8, page 51)
10 CE mark in accordance
with the directive 94/9/EC
11 Part number
12 Year of manufacture
13 Power consumption
Fi
. 5.4: Name
late
11
12
Fig.3: Operating Panel
