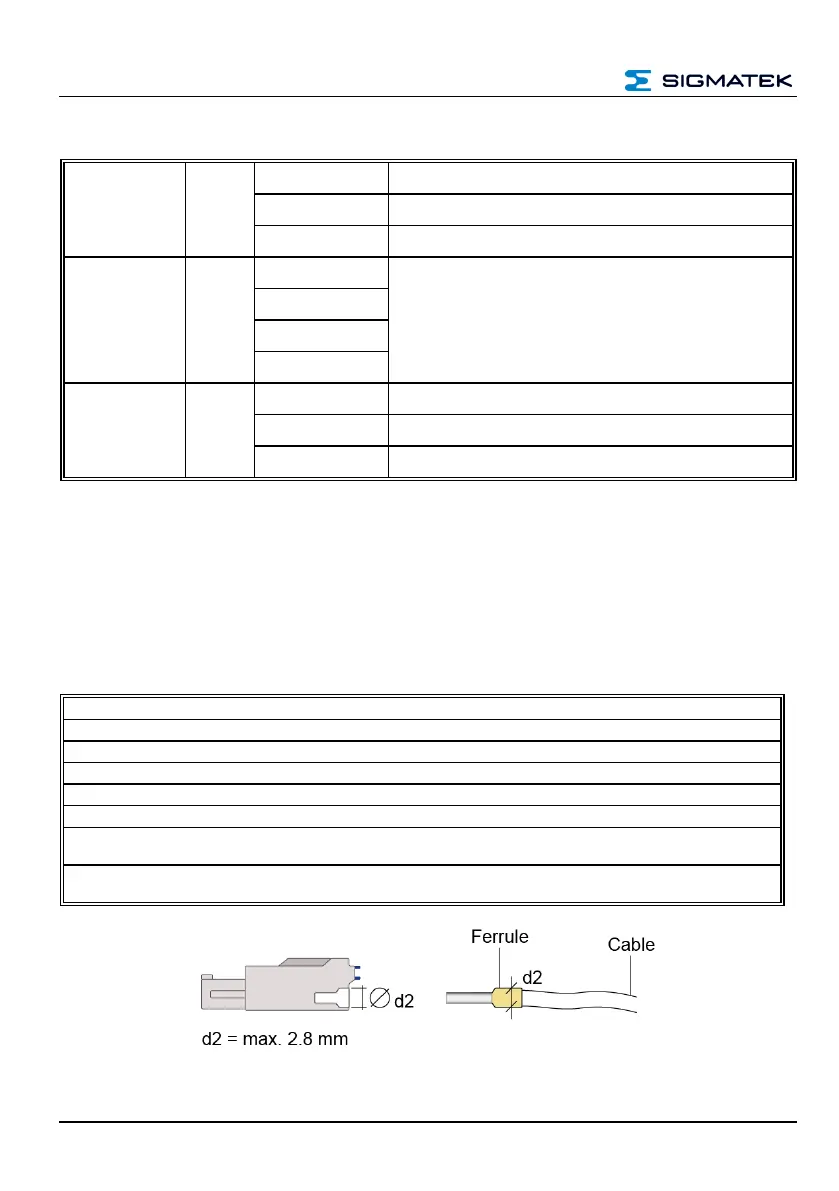

7.1 Status LEDs
Module Status
green
ON
module active
OFF
No supply available
BLINKING (5 Hz)
no communication
User
yellow
ON
can be set from the application
(e.g. the module LED can be set to blinking through the
visualization so that the module is easily found in the control
cabinet)
OFF
BLINKING (2 Hz)
BLINKING (4 Hz)
Error reference
red
ON
10 V reference overload
OFF
no errors
BLINKING (20 Hz)
overload GND, if Aix- is switched to GND through the software!
7.2 Applicable Connectors
Connectors:
X1-X5: Connectors with spring terminals (included in delivery)
The spring terminals are suitable connecting ultrasonically compacted (ultrasonically weld-
ed) strands.
Connections:
Stripping length/Sleeve length:
10 mm
Mating direction:
parallel to the conductor axis or circuit board
Conductor cross section rigid:
0.2-1.5 mm
2
Conductor cross section flexible:
0.2-1.5 mm
2
Conductor cross section ultrasonically compacted:
0.2-1.5 mm
2
Conductor cross section AWG/kcmil:
24-16
Conductor cross section flexible with ferrule without plastic
sleeve:
0.25-1.5 mm
2
Conductor cross section flexible with ferrule with plastic sleeve:
0.25-0.75 mm
2
(reason for reduction d2 of the
ferrule)
