S-DIAS ANALOG MIXED MODULE ±10 V AM 441

26.07.2023 Page 25

8.3.2 Voltage Measurement of Potential-free Voltage Sources

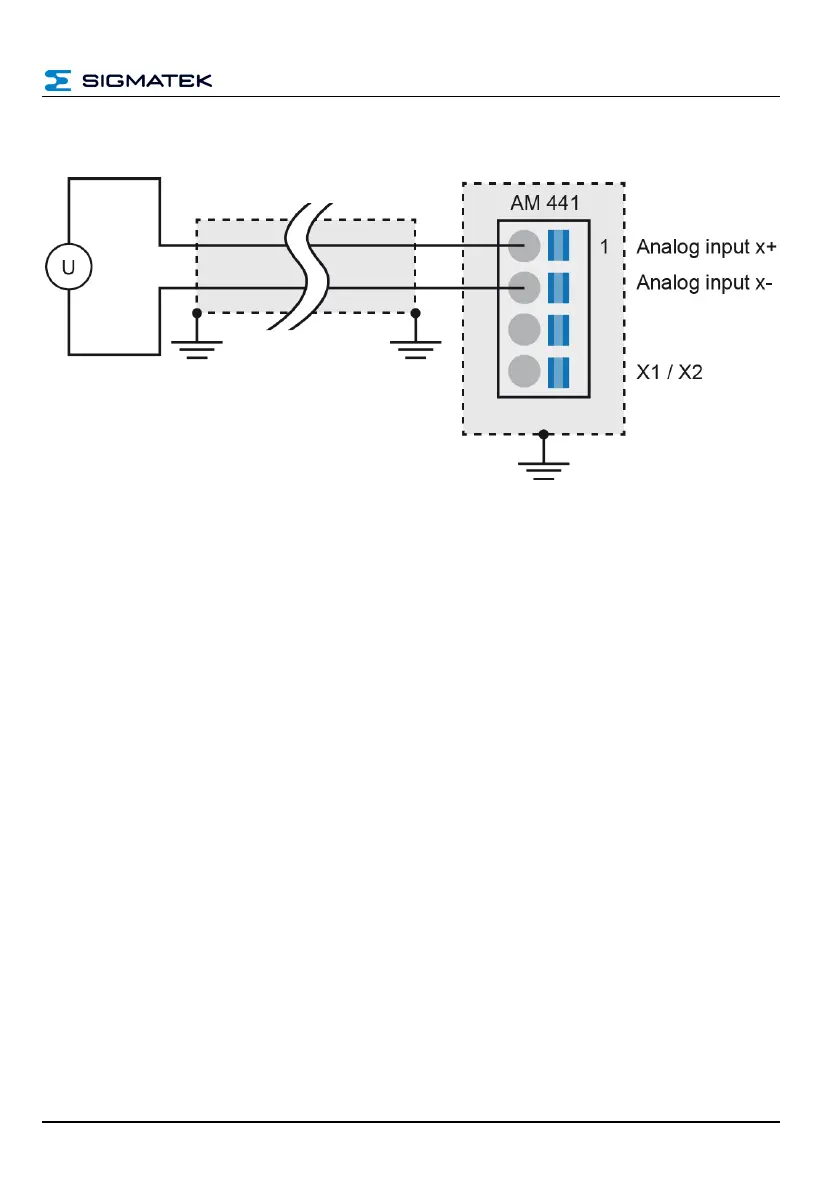

Connection scheme 2

When using a potential-free voltage source (voltage source without connection to the earth

or GND), the input must either be configured via the software as an "Input with reference to

mass" so that the analog input connection x- internal is connected to AGND, or as a differ-

ential analog input and the reference to mass for the analog signal made externally.
