AM 441 S-DIAS ANALOG MIXED MODULE ±10 V
Page 24 26.07.2023
8.3 Connection Variants
8.3.1 Voltage Measurement of not Potential-free Voltage Sources

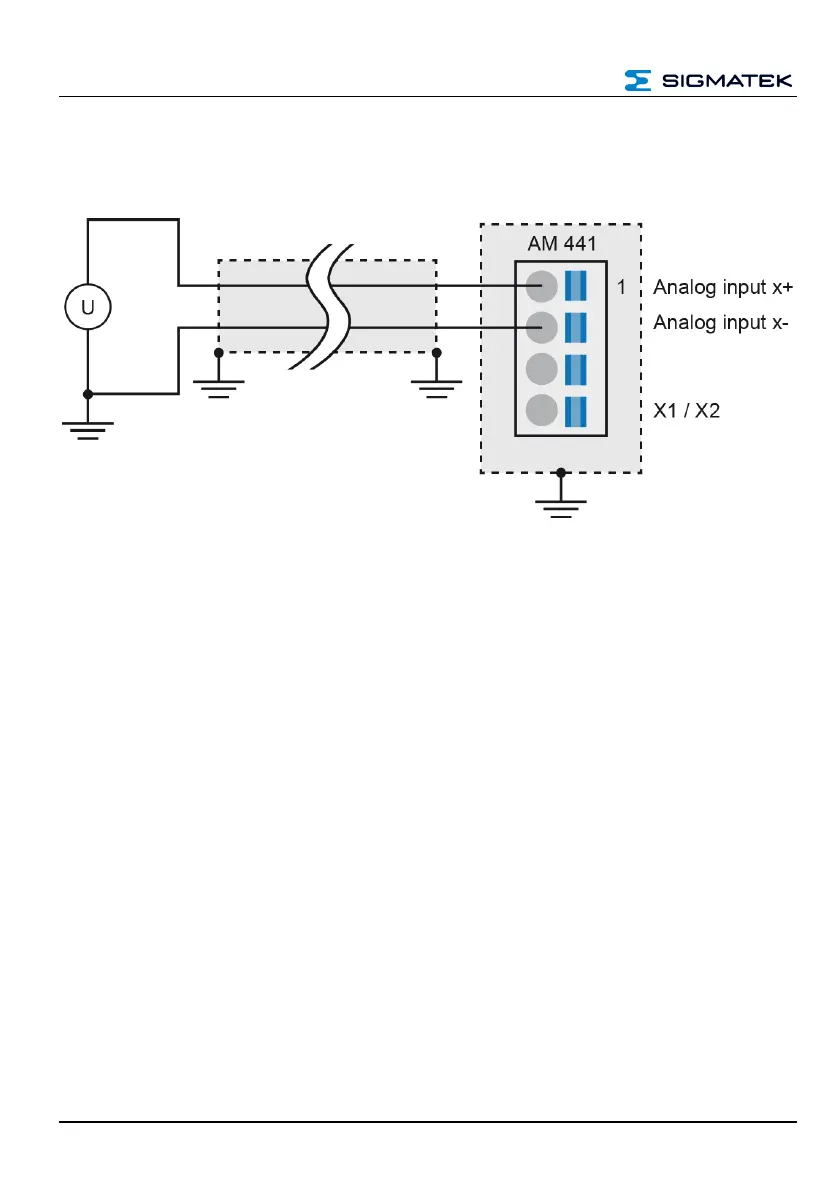

Connection scheme 1
When using a non potential-free voltage source (voltage source with connection to the
ground or GND), the input must be configured as a differential analog input via the soft-
ware. For the analog input of the module, no connection to AGND, GND or ground can be
made. Otherwise compensating currents and measurement error can occur.
