S-DIAS ANALOG MIXED MODULE ±10 V AM 441
26.07.2023 Page 27

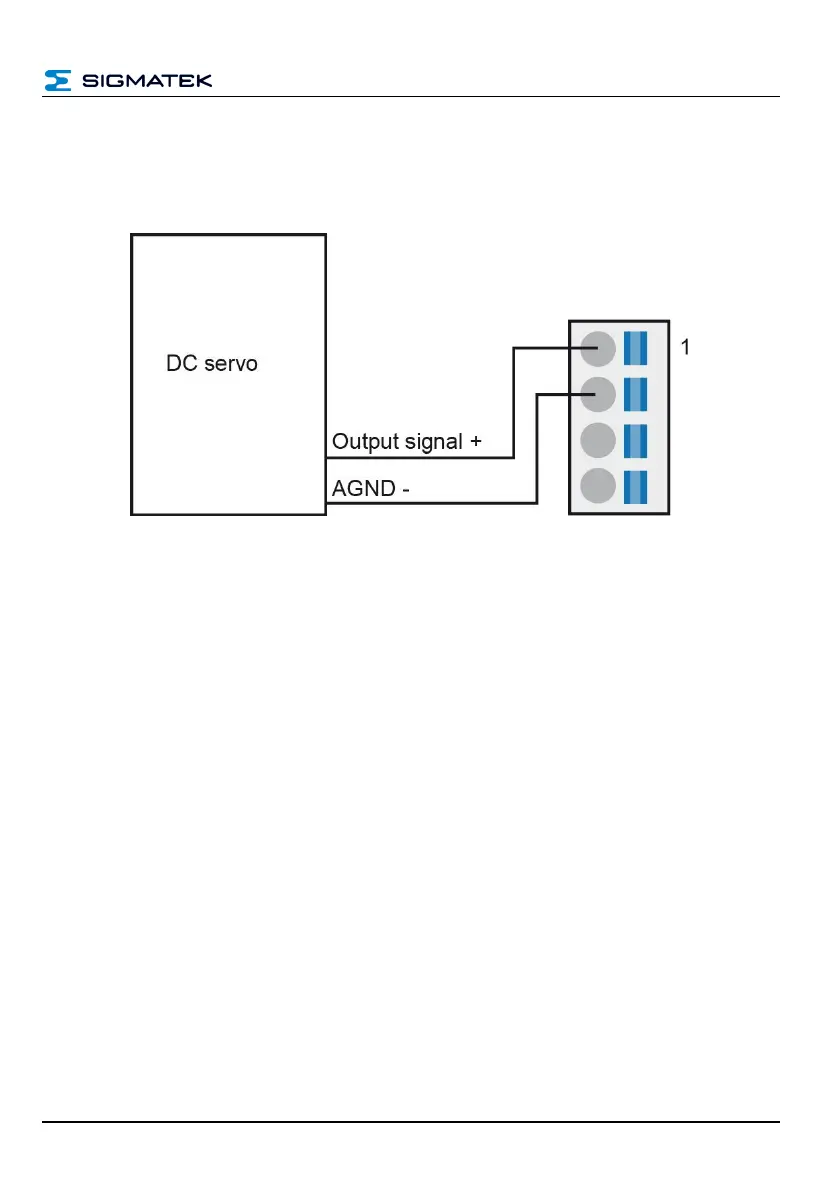

8.3.4 Connection to Analog Outputs
Example application: axis control for a DC servo, frequency converter.
