SIGNODE BPT-H32
3 Description

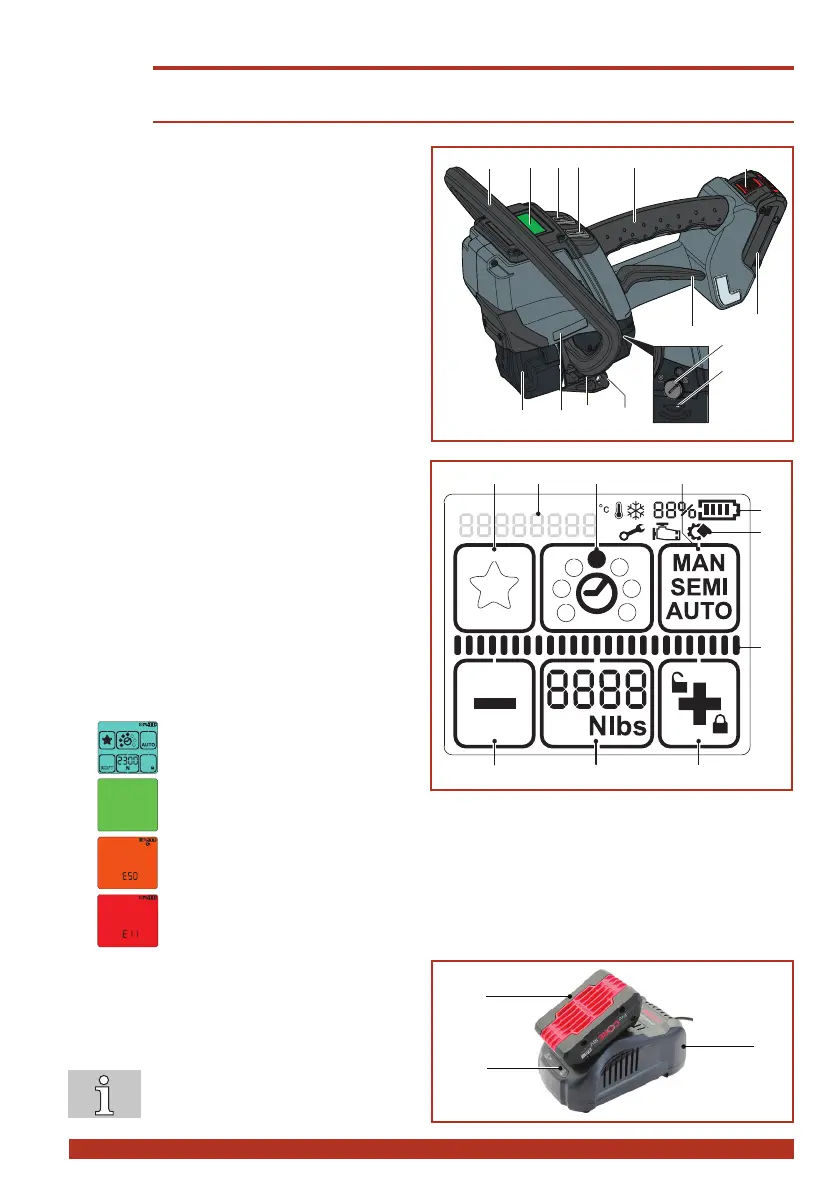

3.1 Design
1 Carrying handles
2 Operating panel
3 Sealing button
4 Tensioning button
5 Unlock button, battery
6 Battery
7 Rotaryknob“strapinsertionaidon/o󰀨”
8 Direction of rotation indicator tension wheel
9 Operating lever
10 Serial number (XJJMMYYYY)
X H=BPT-H32
JJ Year
MM Month
YYYY consecutive number
11 Tensioning device
12 Type designation
13 Sealing device
Operating panel
1 Keypad "Favourite"
2 Keypad “Operating mode”
3 Keypad “Plus & Keylock”
4 Keypad “Tensioning force”
5 Keypad “Minus”
a Display “Messages”
b Status indicator “Sealing”
c Display “Battery charge status”
d Display “Information symbols”
e Status indicator bar “Tensioning“
Background lighting
● Display activated.
● Tension force reached or sealing
process completed
●  Applicationerror:temporarysystemerror,canberectiedbytheoperator(Section6.8).
●  Toolfault:staticsystemerror,rectifyerror(Section6.8).Iftheerrorcannotberectied
Service department.
Battery and charger
1 Charger
2 Battery
3 LED indicator
For detailed information, refer to the
operating instructions for the battery
and the charger.
