SIGNODE BPT-H32
6.5 Cleaning/replacing jaws, notchers and object guard
Required parts Order no.19 mm (
3
/
4
″) Order no. 25 mm (1″) Order no. 32 mm (1
1
/
4
″)
Outer notchers (8) (13)* 1821.200.024 1821.200.026 1821.200.022
Centre notcher (11)* 1821.200.025 1821.200.028 1821.200.023
Jaws (9) (12)* 1821.200.031 1821.200.029 1821.200.021
Guiding jaw (7)* 1821.200.032 1821.200.030 1821.200.020
Object protection (3)* 1831.021.098 1831.021.101 1831.021.080
Bolt (1) 1821.030.051 ʺ ʺ
Jaw pin (10) 1821.030.052 ʺ ʺ
Countersunk screw Torx (6) 1912.203.066 ʺ ʺ
Cylinder screw M3x18 (2) 1911.003.181 ʺ ʺ
* Wear part
Dismantling
► Remove battery from tool.
► Remove front covers (Section 6.3).
► Pull out two bolts (1), remove outer notcher (13), jaws (12), centre notcher (11) together with
object protection (3).
► Pull out two jaw pins (10) and remove guiding jaw (7) together with jaw (9).
► Loosen two countersunk screws (Torx) (6) and cylinder screw (2) with bushing and nut. Remove
the mount (5) together with the four compression springs (4).
► Clean the two object protections (3), check for wear and replace if necessary.
► Clean centre notcher (11), jaws (9) (12), guiding jaw (7) and outer notchers (8) (13), check for
wear and replace if necessary. The outer notchers (8) (13) can also be turned 180° to use the
second cutting edge.
Fitting
► Lubricate the cleaned or replaced parts at the joints and sliding points with universal grease (e.g.
Klüber GBU Y 131, Microlube) or spray with high-pressure resistant adhesive lubricating oil spray
(e.g. Würth HHS 2000).
► Fitting is performed in reverse order.
► After reassembly, check that the object protection (3) between the jaws are in place and function-
ing.

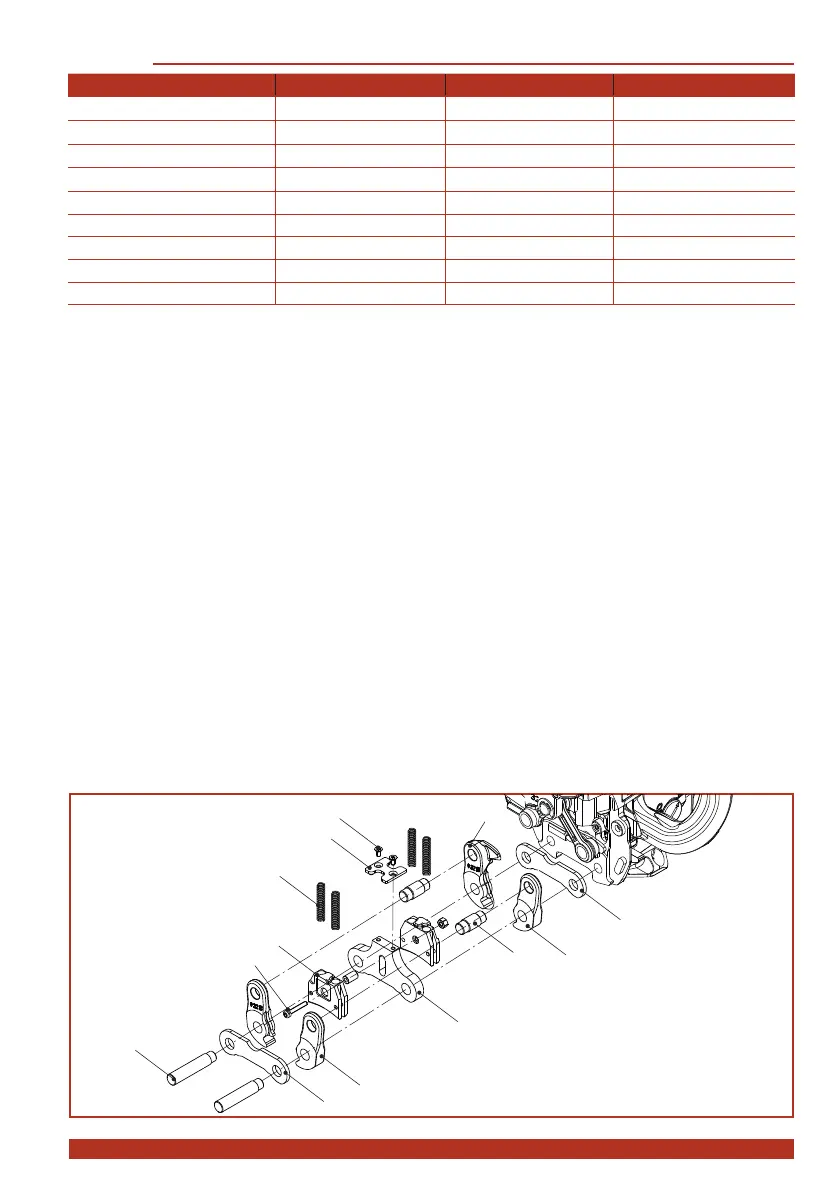

Illustration: strap width 32 mm
(19and25mmslightlydi󰀨erent)
1
2
3
4
9
8
7
6
5
11
12
10
13
