Silca REKORD - Electric Circuit

Operating manual - English REKORD
Copyright Silca 2 007 9
3.2

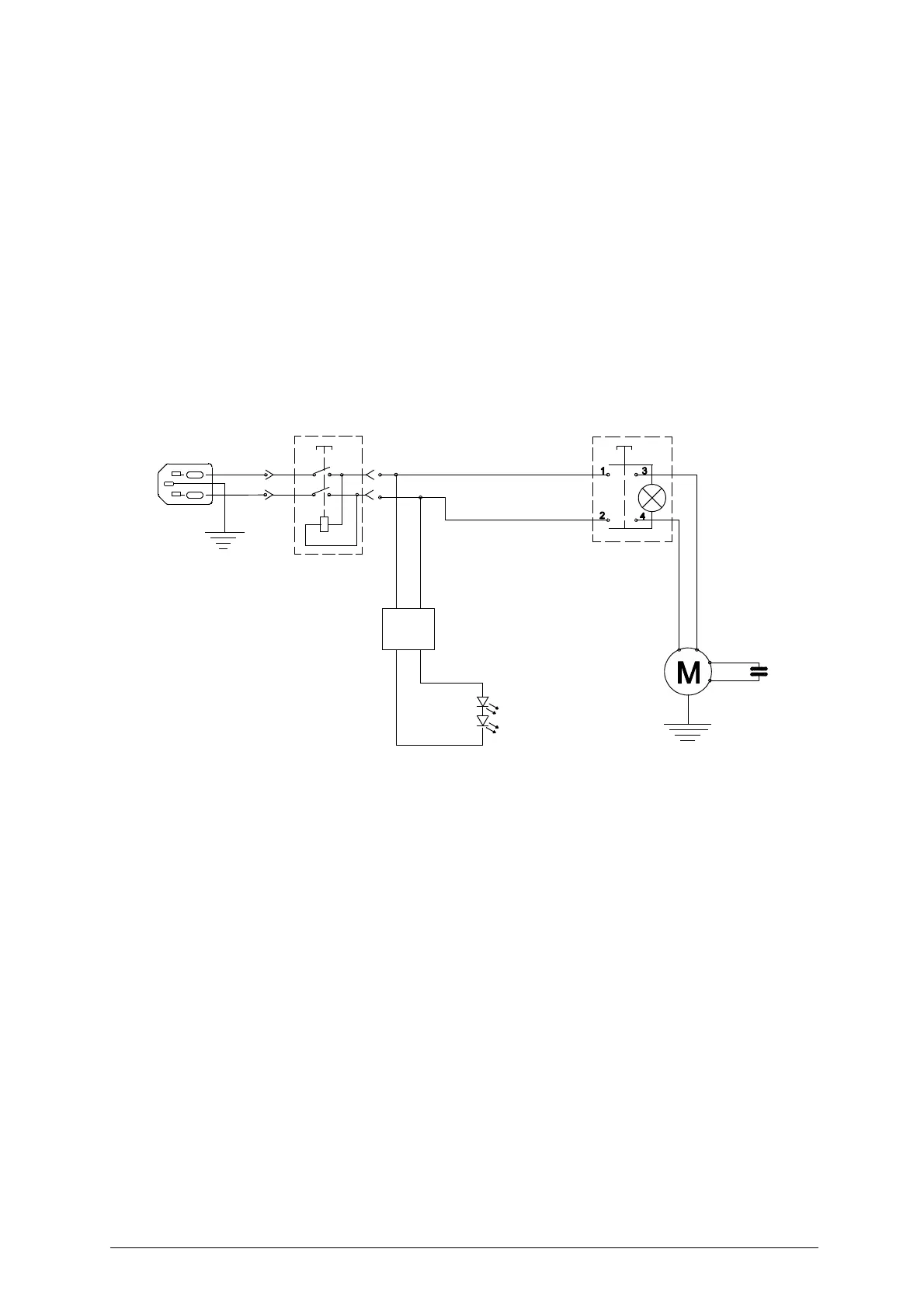

Electric circuit
The REKORD key-cutting machine is provided with a single phase one-speed motor;
-
1350 rpm, consumes approx
imately 0.18 Kw, absorption 2A
(230V-50Hz)
- 1620
rpm, consumes approximately 0.18 Kw, absorption 2A
(230V-60Hz)
- 1620 rpm,
consumes approximately
0.18 kw,
absorption
4,6A (120V-60Hz)
The main parts of the electric circuit on the REKORD are listed below:
1)
Main plug with fuses
2) Safety main switch
3) Illuminated switch
4) Motor: 230V a.c. 50/60Hz - (120V a.c. 60Hz)
5) Condenser
6) Feeder
7) 6 LED circuit board (lamp)
black
red
Feeder (lamp)
6 LED circuit board
brown
light bluelight blue
brown
yellow/green
1
23
6
4
7
5
()
()
(lamp)
