8 MAINTENANCE
ATTENTION: for repairs or replacement of parts for maintenance, the ‘CE’ mark is guaranteed only if original
spare parts provided by the manufacturer are used.
Although the REKORD key-cutting machin e does not r equire special maintenance, it is advisabl e to
check and, if necessary, replace the parts subject to wear, such as: the belt, cutting tool, brush, tracer
point. Replacement is simple and can be carried out by the operator.
CLEANING
Keep the carriage and clamps free of chippings from the cutting operations by cleaning with a dry brush.
ATTENTION:
do not use compressed air!
ATTENTION: to keep the machine well maintained we recommend using protective oil, e.g. WD40 or similar,
applied to the burnished mechanical parts. This prevents oxidation of the parts in question
(clamps, guides, carriages, etc.). Do not contaminate the electronic parts with the oil.
Before starting any type of maintenance (checks or re
placements), read the instructions below:
-
never carry out maintenance or servicing with the machine switched on
.
-
always remove the mains
plug.
-
follow all the instructions in the
manual to the letter.
-
use original spare parts.
-
always check that an
y screws or nu
ts removed when replacing a piece are properly tightened.
8.1
Replacing the cutting tool
In order to substitute the cutting tool you don’t need to remove the cutting tool cover.
To replace a worn cutting tool, proceed as follows:
ATTENTION:
remove the mains plug
.
1)
Slot the locking rod (standard) into
the hole of the cutting tool shaft (fig. 18).
2) Use the spanner provided to loosen the cutting too
l locking the nut.
ATTENTION:
the thread is left-handed.
3) Remove the w
orn cutting tool.
4) Carefully clean the new cutting tool and its seat.
5) Install the new cutting tool and tighten the nut.
ATTENTION: the tool rotates clockwise.
6)
Re
move the locking pi
n.

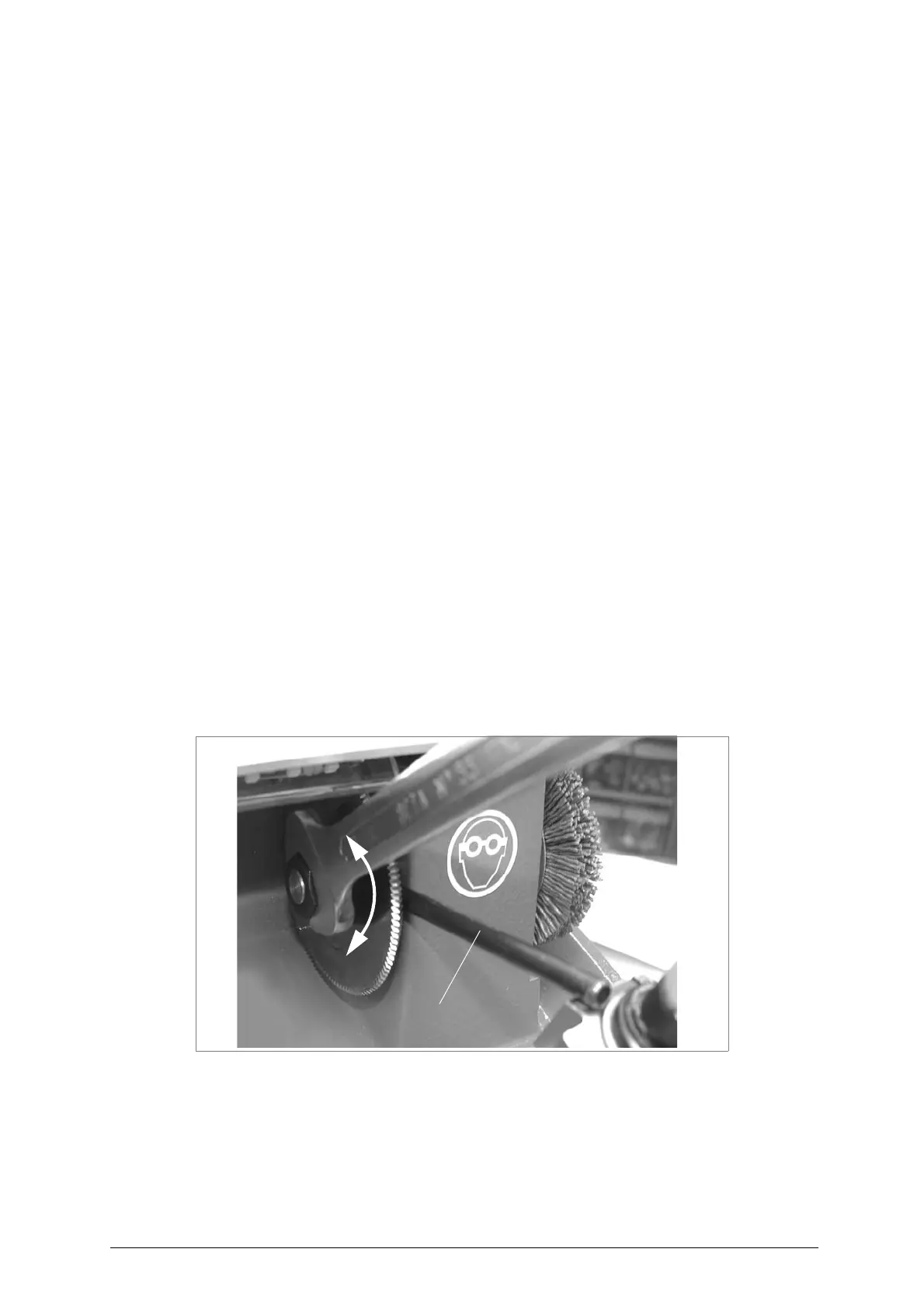

Fig. 18
