Silca REKORD - WORKING PARTS OVERVIEW

REKORD Operating manual - English
6 Copyright Silca 2 007

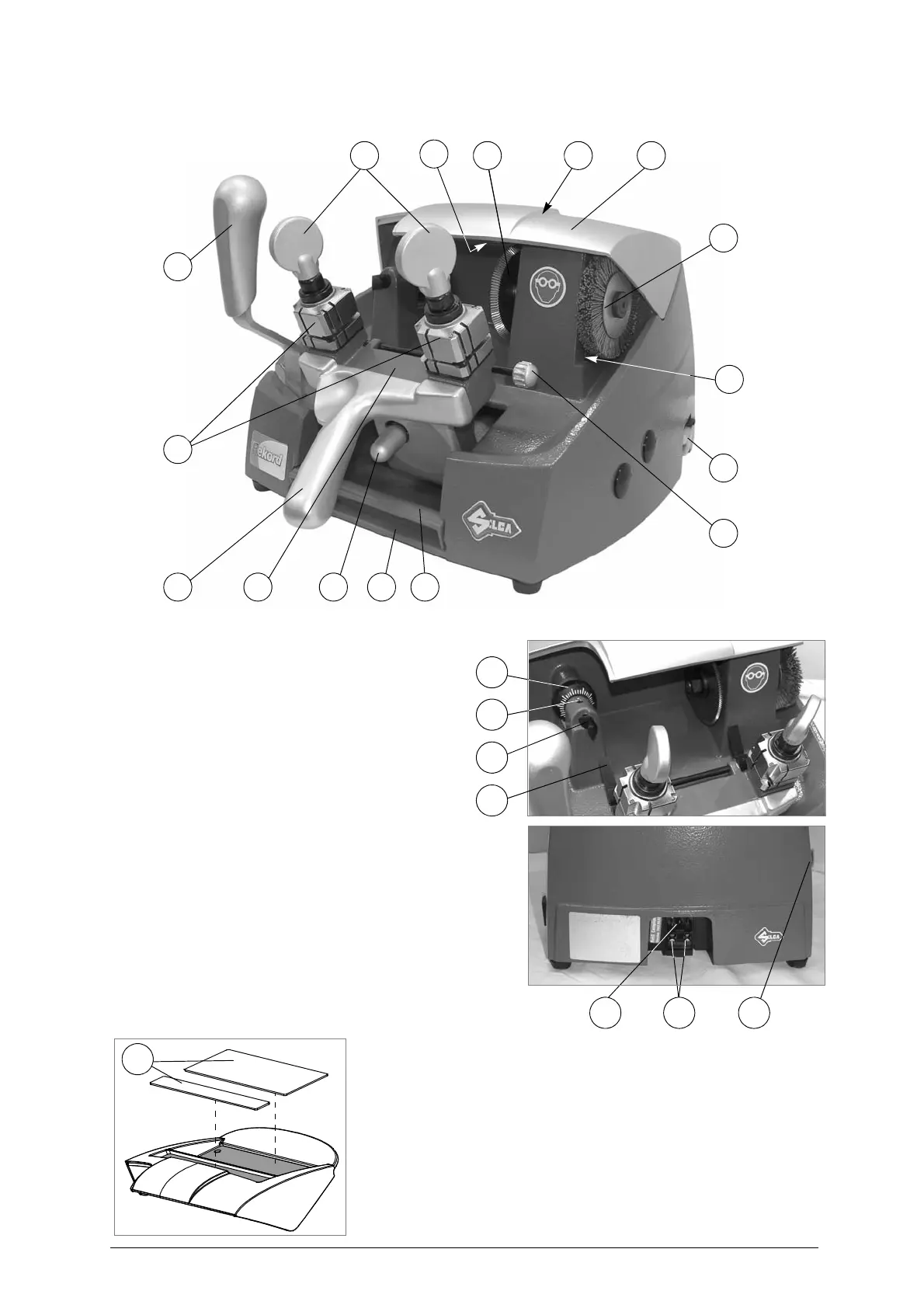

2 WORKING PARTS
Fig. 4
A-carriage lever handle
B-carriage release lever
C-chippings tray
C1 - tool tray
D-carriage movement lever
E-clamps
F-clamp knobs
G - gauge knobs
H-gauge tabs
H1 - lamp
I - tracer point
J-tracer point locking grub screw
K -
centesimal ring
L - cutting tool
M - top cover
N-
motor on switch
O - main switch
P-brush
Q - protective pad
R-clamp carriage
S - motor
U - fuses
V-supply socket
W - protective belt cover
B CA C1
D
E
G
F L M
O
P
R
S
H1
w
UV
I
J
K
N
H
Q
