Technica EU Operating manual - English
Copyright Silca 2005 7
1.5 Safety
•CUTTER MOTOR PROTECTION
ATTENTION: the cutter motor is protected from overheating by a device (inside the motor) that stops it when it
reaches a dangerous temperature
.
This condition can occur when the machine motor is left on continuously, with high ambient temperatures
or in severe working conditions. If the cutter motor overheats it cuts out automatically. In such cases
proceed as follows:
a) turn off the master switch (A).
b) let the motor cool for at least 2 hours then use the machine normally.
•START-UP
The master switch (A) has a safety function that prevents untimely start-up when voltage returns after a cut-out.

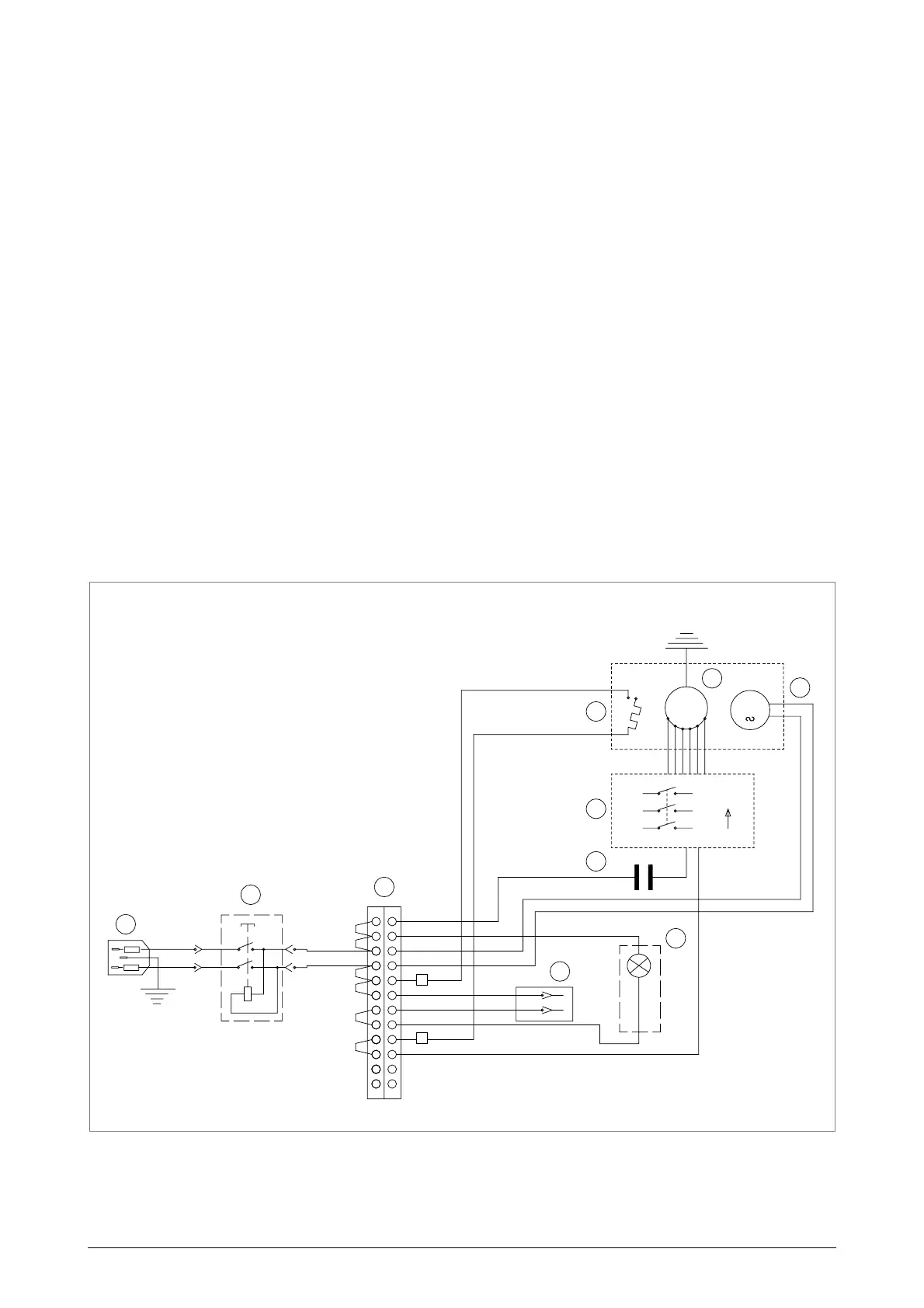

1.6 Electric circuit
1) Main plug with fuses
2) Safe main switch
3) Terminal board
4) Lamp reactor
5) Neon lamp
6) Cutter motor condenser
7) Commutator
8) Motor cut-out safety switch
9) Cutter motor
10)Motor ventilator
(
)
(
)
2
1
3
6
8
10
9
7
5
4
M
V
0
12
brown
black
brown
blue
black
blue
brown
blue
brown
blue
yellow/green
WVU 3 2 1
-
-
7
8
