1 MACHINE DESCRIPTION

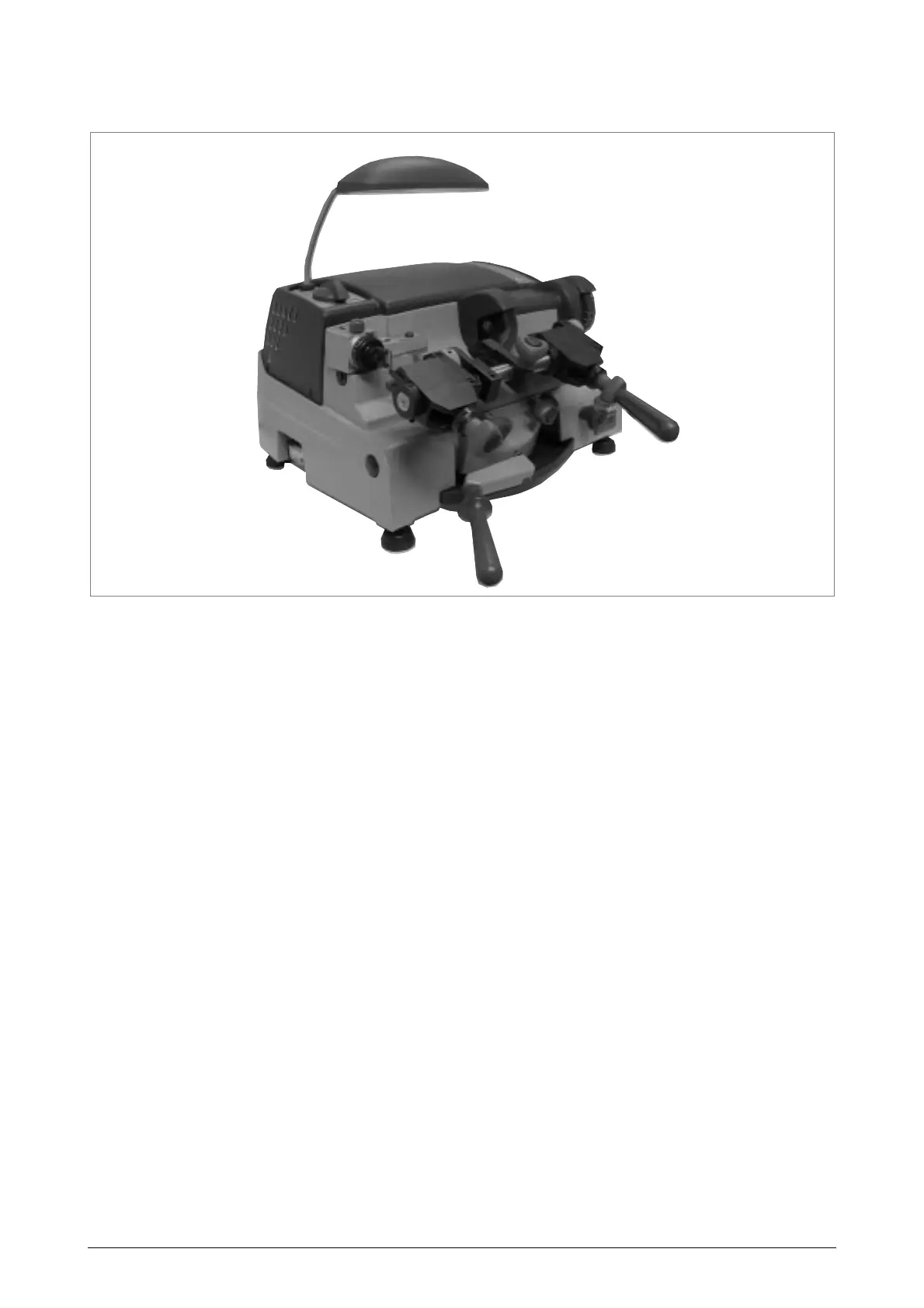

Fig. 4
1.1 Main Characteristics
•KEY-CUTTING UNIT WITH CARRIAGE
The key-cutting unit contains the working parts of the
TECHNICA EU
key-cutting machine, which carry out
reading and cutting of the original key and the necessary finishing off. The working parts are
:
Cutter:
The cutter is the part of the key-cutting machine used to cut keys. It is in super rapid steel (HSS) and is protected
by a special shield to guarantee safety for the operator.
Tracer point unit:
The tracer point is dedicated to reading the cuts on the keys. It is easily regulated (depth and axial gauging).
Carriage:
The carriage comprises a clamp unit for cutting bit and double bit keys.
The carriage movement is horizontal on 2 axes (X-Y) and controlled by means of the lever (L) (fig. 5, page 5).
The knob (R) is used for rounding off bit and double bit keys.
Clamps for bit and double bit male and female keys:
The clamps comprise two self-centering jaws that ensure perfect grip on the stem of bit-double bit and pump keys
(with round or square stems).
•MASTER SWITCH
The master switch is located on the bottom left-hand side of the lamp.
•MOTOR ON SWITCH / SPEED COMMUTATOR
On the top left-hand side there is a switch for starting the motor at the required speed.
•ILLUMINATION
The lamp is fixed and it illuminates the work zone to be used perfectly.
