5.8 Condenser (motor) and/or Feeder (lamp) replacement
ATTENTION:
Turn the machine off and unplug it
.
1) Remove the swarf tray.
2) Use the lever to raise the carriage and secure by tightening the knob (G) (fig. 31).
3) Place the machine on its back.
4) Loosen the 7 screws (N1) and remove the bottom
protective plate (N) (fig. 31).
CONDENSER
1) Loosen the nut (J1) and remove the washer (J2) and
condenser (fig. 32).
2) Remove the cap (J3) on the new condenser.
3) Remove the cap on the old condenser and detach the
connectors paying attention to their position, to
connect them to the new one.
4) Replace the cap (J3) on the new condenser.
5) Fit the new condenser and secure with the washer
(J2) and nut (J1).
6) Replace the bottom protective plate and secure with
the 7 screws (N1).
7) Place the machine upright on the bench and fit the
swarf tray.

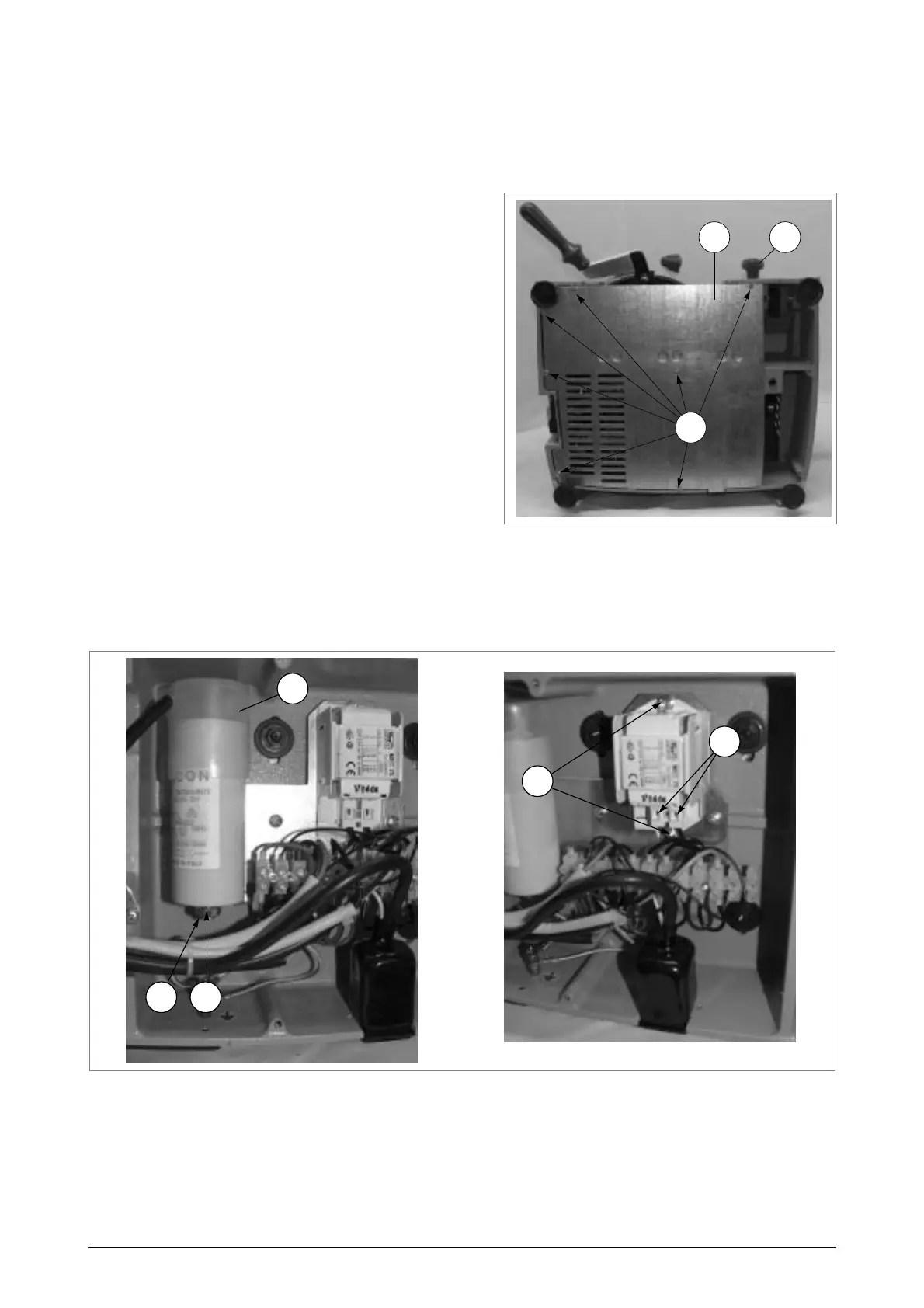

Fig. 31
FEEDER
1) Loosen the 2 screws (K1) and remove the reactor.
2) Use the tip of a small plain screwdriver to enter the slits (K2) and detach the 2 wires.
3) Fit the 2 wires into the special connections on the new reactor.
4) Place the new reactor into its seat and secure with the 2 screws (K1).
5) Replace the bottom protective plate and secure with the 7 screws (N1) (fig. 31).
6) Replace the machine upright on the bench and fit the swarf tray.
Fig. 32
N1
N G
J1 J2
J3
K1
K2
