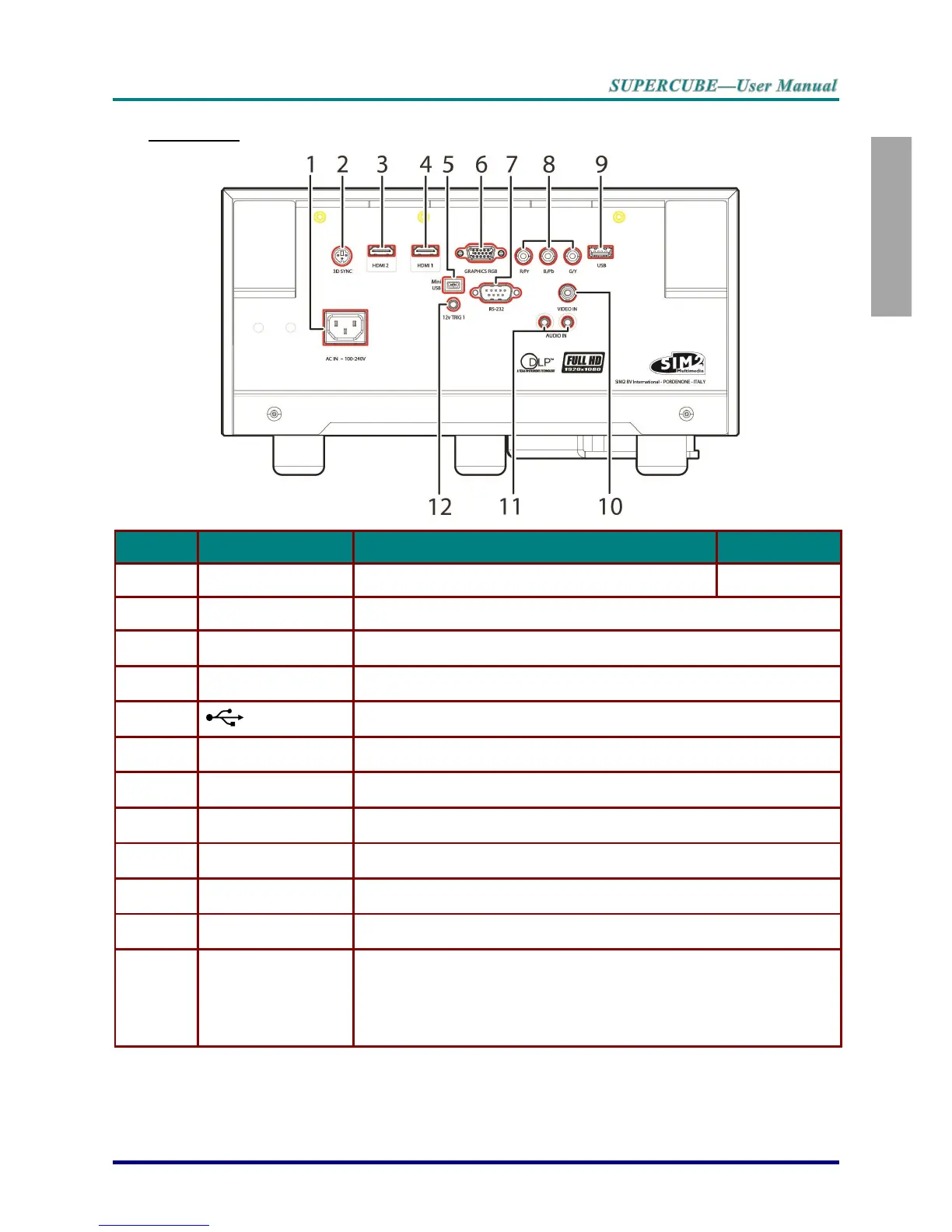

Sim2 SuperCube - Rear View

– 3 –
English
Rear view
ITEM
LABEL
DESCRIPTION
SEE PAGE
1.
AC IN
Connect the POWER cable
6
2.
3D SYNC
Connect the SIM2 3D glasses RF transmitter
3.
HDMI 2
Connect the HDMI cable from a HDMI device
4.
HDMI 1
Connect the HDMI cable from a HDMI device
5.
(USB)
Connect the USB cable from a computer
6.
VGA IN
Connect the RGB cable from a computer
7.
RS-232C
Connect RS-232 serial port cable for remote control
8.
COMPONENT
Connect the Component cable from a component device
9.
USB POWER
For USB charge support DC 5V
10.
VIDEO IN
Connect the COMPOSITE cable from a video device
11.
AUDIO IN (L and R)
Connect an AUDIO cable from a audio device
12.
DC 12V TRIGGER
When connected to the screen through a commercially available cable,
the screen deploys automatically on start up of the projector. The screen
retracts when the projector is powered off (see notes below).
Note: do not use a 3.5mm mono type cable; use a 3.5mm 3 pin type
stereo cable
