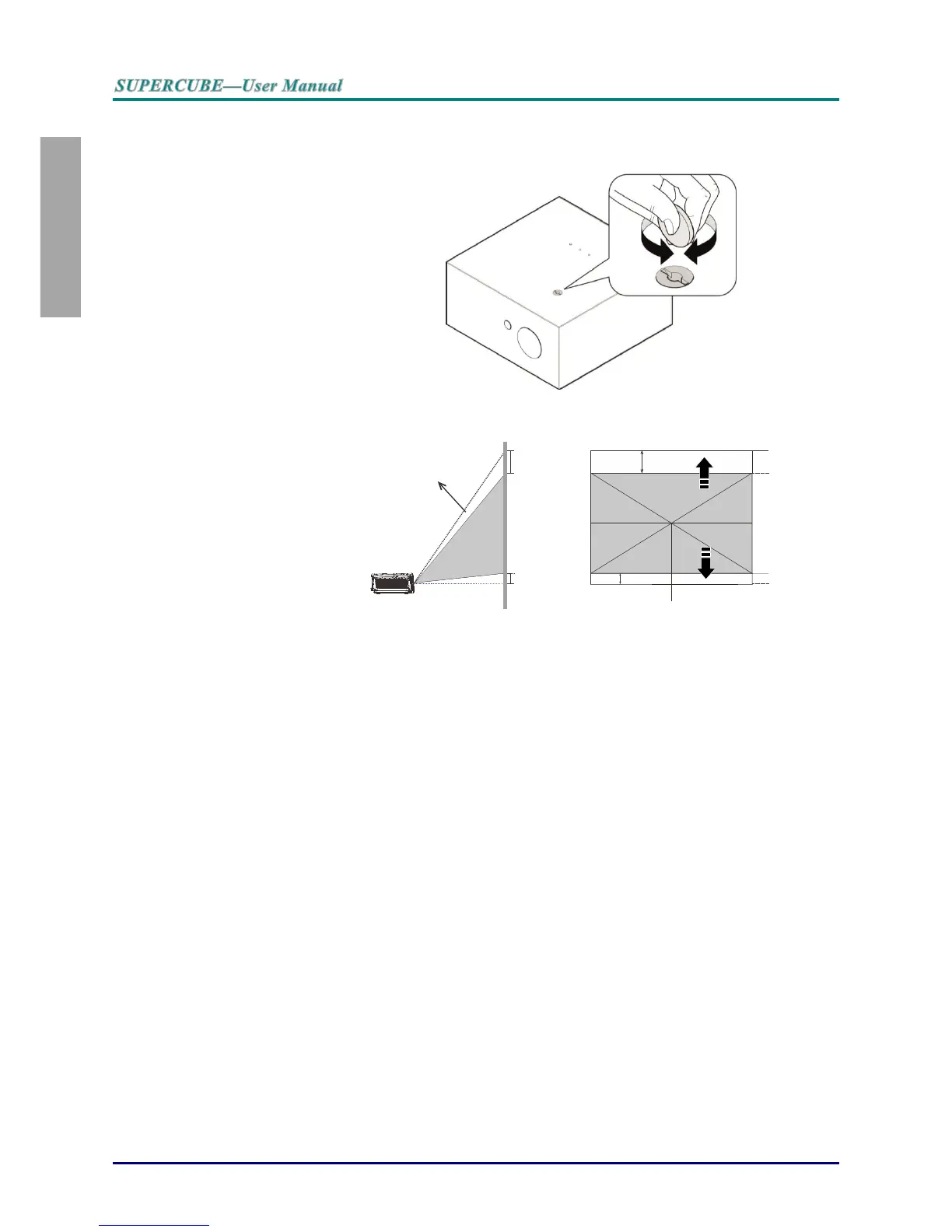

Adjusting the vertical image position
Rotate the mechanical
register with a coin, or
other suitable tool, in
order to optically adjust
the vertical image
position.
The display position can
be shifted upward up to
9% and down to 5%
elevation of the display.
Lens shift adjustable range
9%
Shift to top
9%V
1V
5%V
5%
Shift range
Lens shift center position
Shift range
