Simonelli MUSICA - Removal of the Side Panels

3.3 reMOval OF THe SiDe
panelS
NOTE
To remove the side panels, it is necessary to
remove the cup holding surface first.

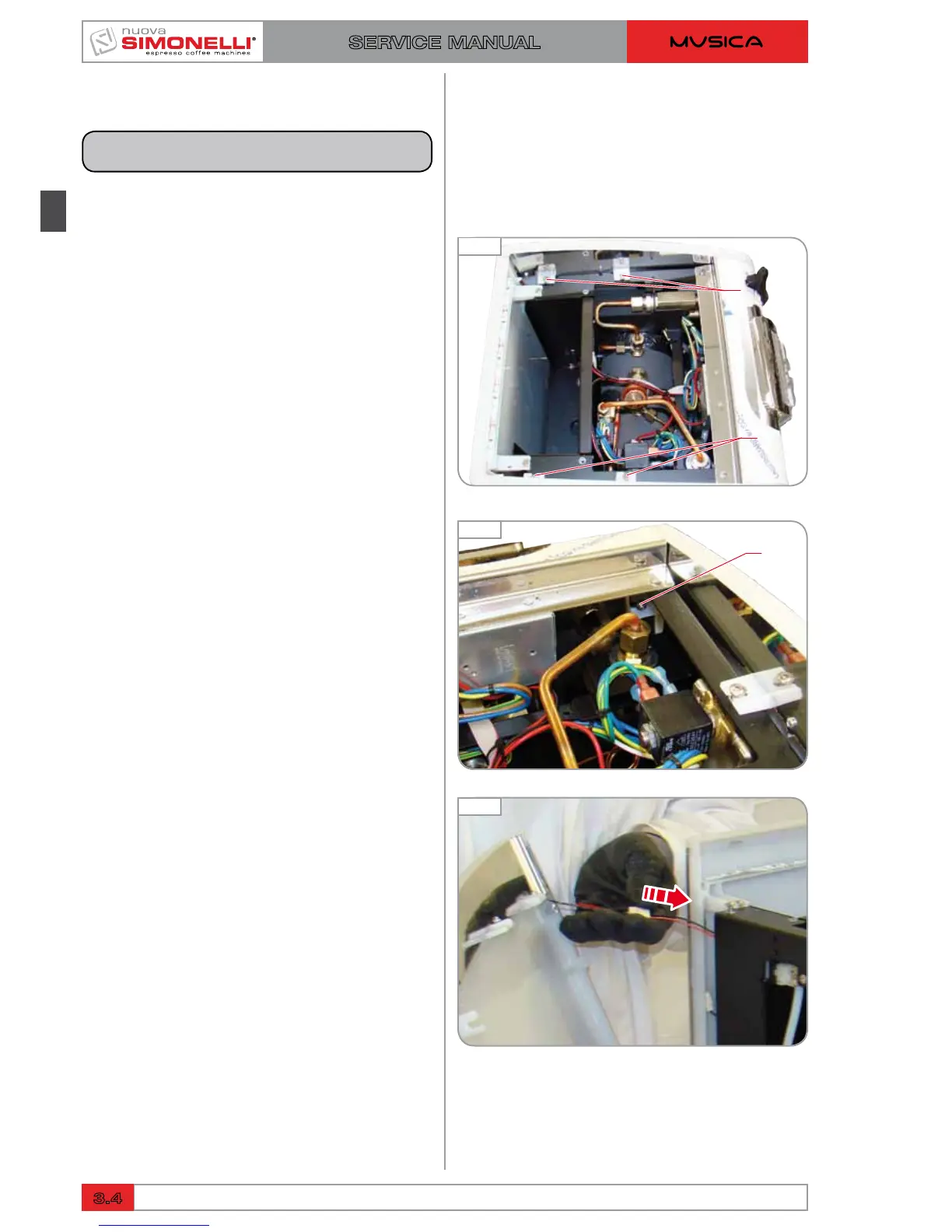

1 Loosen the screws “A” of each panel using a
2,5 mm Allen key.
2 Loosen the screws “B” on the front side
(underneath the frame) of the front panel
using a Phillips screwdriver.
3 For LUX version, disconnect the LEDs before
completely removing the panel.
Ed. 01 of 12/2015
3.4
Service Manual
A
A
Fig. 28
B
Fig. 29
Fig. 30
