Simonelli MUSICA - Hydraulic Diagram (Direct Connect)

Ed. 01 of 12/2015
9.2
Service Manual

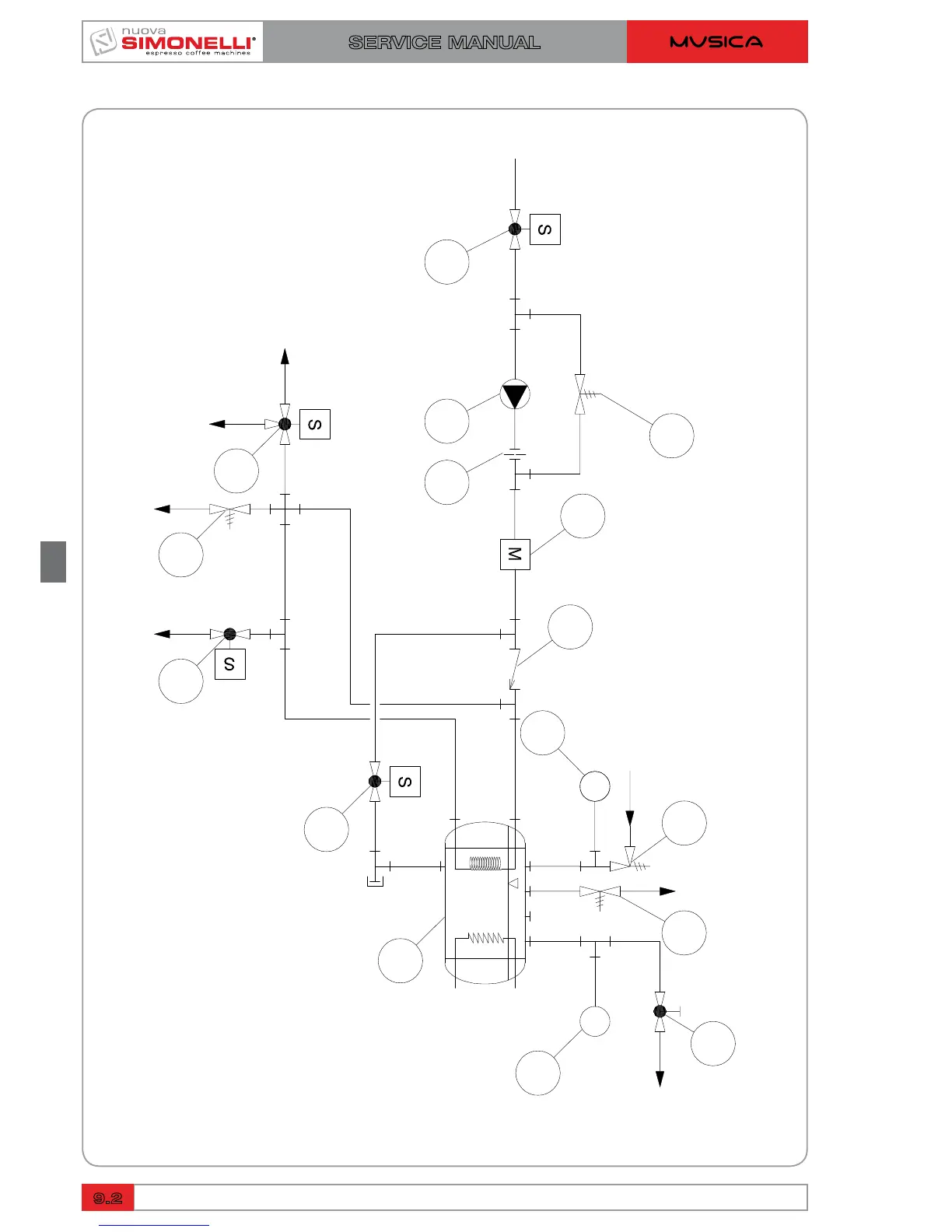

9.2 HYDraulic DiaGraM DirecT cOnnecTiOn verSiOn
431
2
5
6
7
8
9
10
11
12
13
1415
16
1 Water supply valve 2 By-pass valve 3 Pump 4 Calibrated orifice 5 Flow meter 6 Retaining valve 7 Pressure meter 8 Anti-vacuum valve 9 Safety valve
10 Steam valve 11 Pressostat 12 Boiler 13 Auto level valve 14 Hot water valve 15 Maximum pressure valve
circuit coffee
16 Delivery valve
