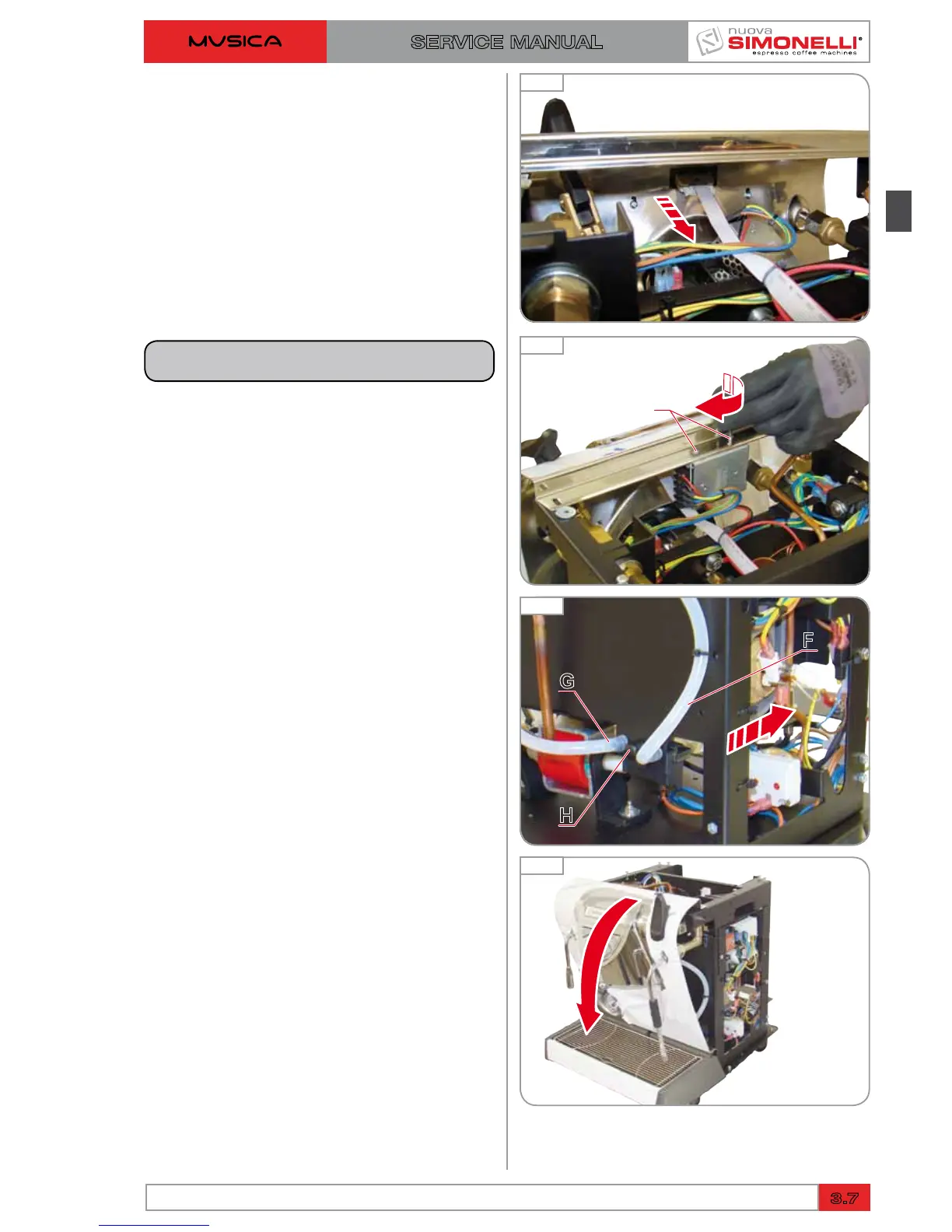

5 Disconnect keyboard wiring.
NOTE
For LUX version, remove the light transformer
before disconnecting the keyboard. Loosen
the corresponding screws “E” by means of a
Phillips screwdriver.
6 Disconnect pipes of the coffee valve “F” and
the ones of expansion valve “G”.
7 Loosen the screw “H” by means of a Phillips
screwdriver and remove the discharge col-
lector toward the machine rear side.
8 Take out the front panel toward the machine
front side.
Ed. 01 of 12/2015
3.7
Service Manual
Fig. 37
E
Fig. 38
F
G
H
Fig. 39
Fig. 40
