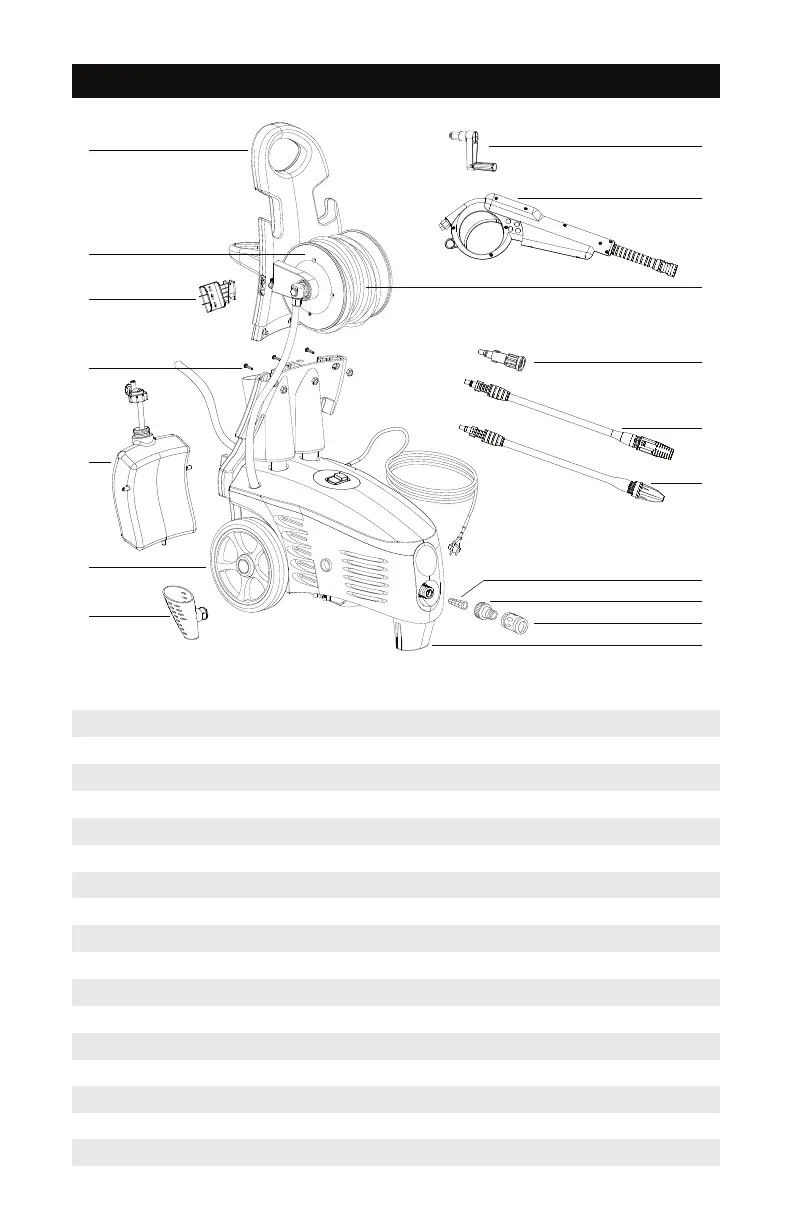

PARTS AND DIAGRAM LIST
Item No. Quantity Part Name Parts No.
A 1 Up-handle assembly JH05-002-0000
B 1 Hose reel JH05-002-0001
C 1 Gun holster (Top) JH01-000-0004
D 3 Screw + Nut JH02-000-0006
E 1 Detergent bottle assembly JH02-050-0003
F 2 Wheel JH05-000-0005
G 1 Gun holster (Bottom) JH01-000-0019
H 1 Gun assembly JH02-061-0000
I 1 Pressure hose JH05-000-0003
J 1 Adjustable wand JH02-000-0007
K 1 Turbo wand JH02-000-0008
L 1 Water filter JH02-020-0009
M1 1 Inlet adaptor JH05-020-0026
M2 1 Quick-connect coupling JH05-020-0026
N 1 Front foot JH01-000-0017
P 1 Universal Pressure Washer Accessories Adaptor JH05-062-0002
O 1 Hand crank JH05-002-0035
A
H
O
C
J
E
M2
G
N
B
I
D
K
F
M1
L
P
