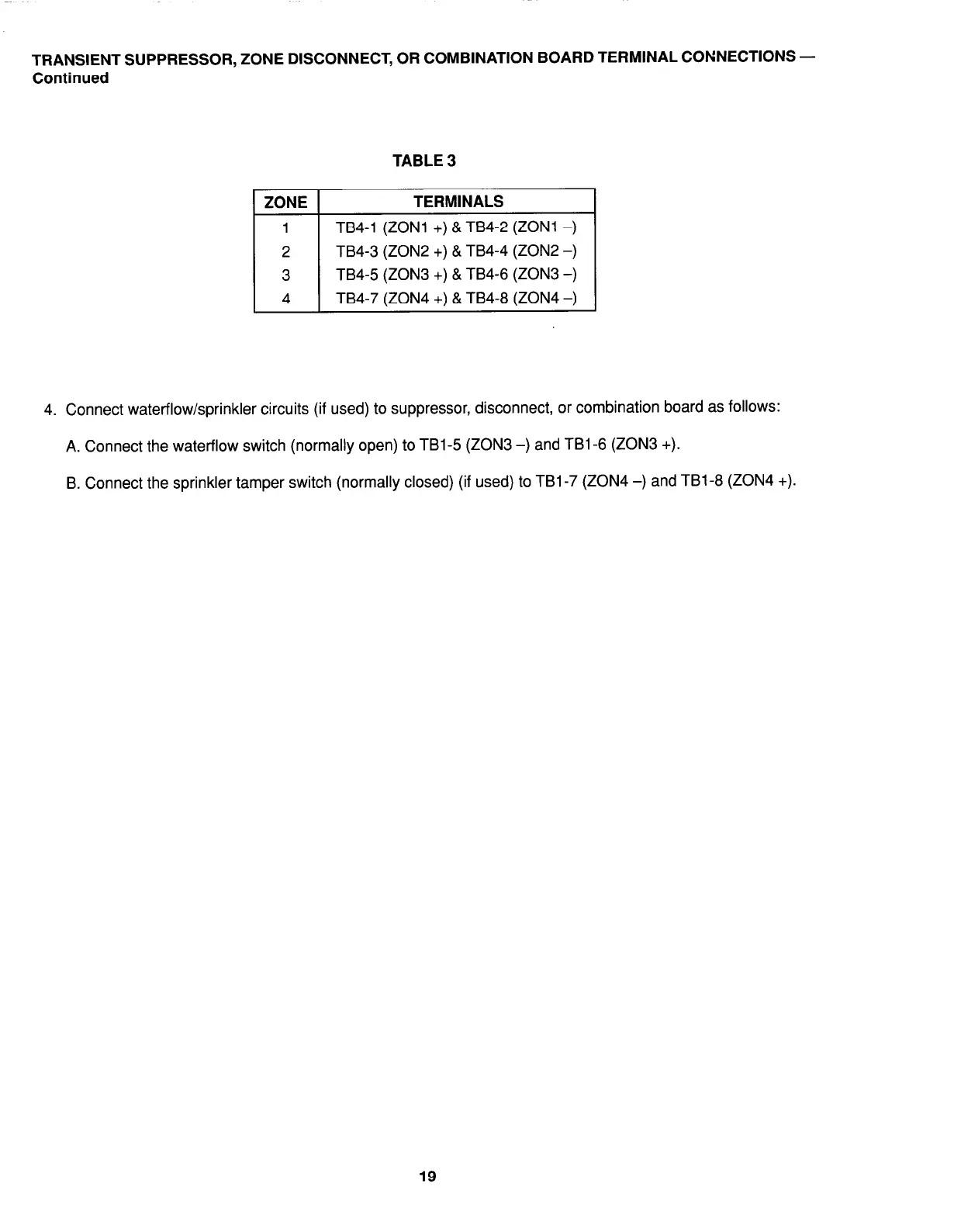

TRANSIENT SUPPRESSOR, ZONE DISCONNECT, OR COMBINATION BOARD TERMINAL CONNECTIONS -
Continued
TABLE 3
rZONE 1
TERMINALS
I
(ZONl +) & TB4-2 (ZONl -)
TB4-3 (ZON2 +) 81 TB4-4 (ZON2 -)
TB4-5 (ZON3 +) & TB4-6 (ZON3 -)
TB4-7 (ZON4 +) & TB4-8 (ZON4 -)
4. Connect water-flow/sprinkler circuits (if used) to suppressor, disconnect, or combination board as follows:
A. Connect the waterflow switch (normally open) to TBl-5 (ZON3 -) and TBl-6 (ZON3 +).
B. Connect the sprinkler tamper switch (normally closed) (if used) to TBl-7 (ZON4 -) and TBl-8 (ZON4 +).
19
