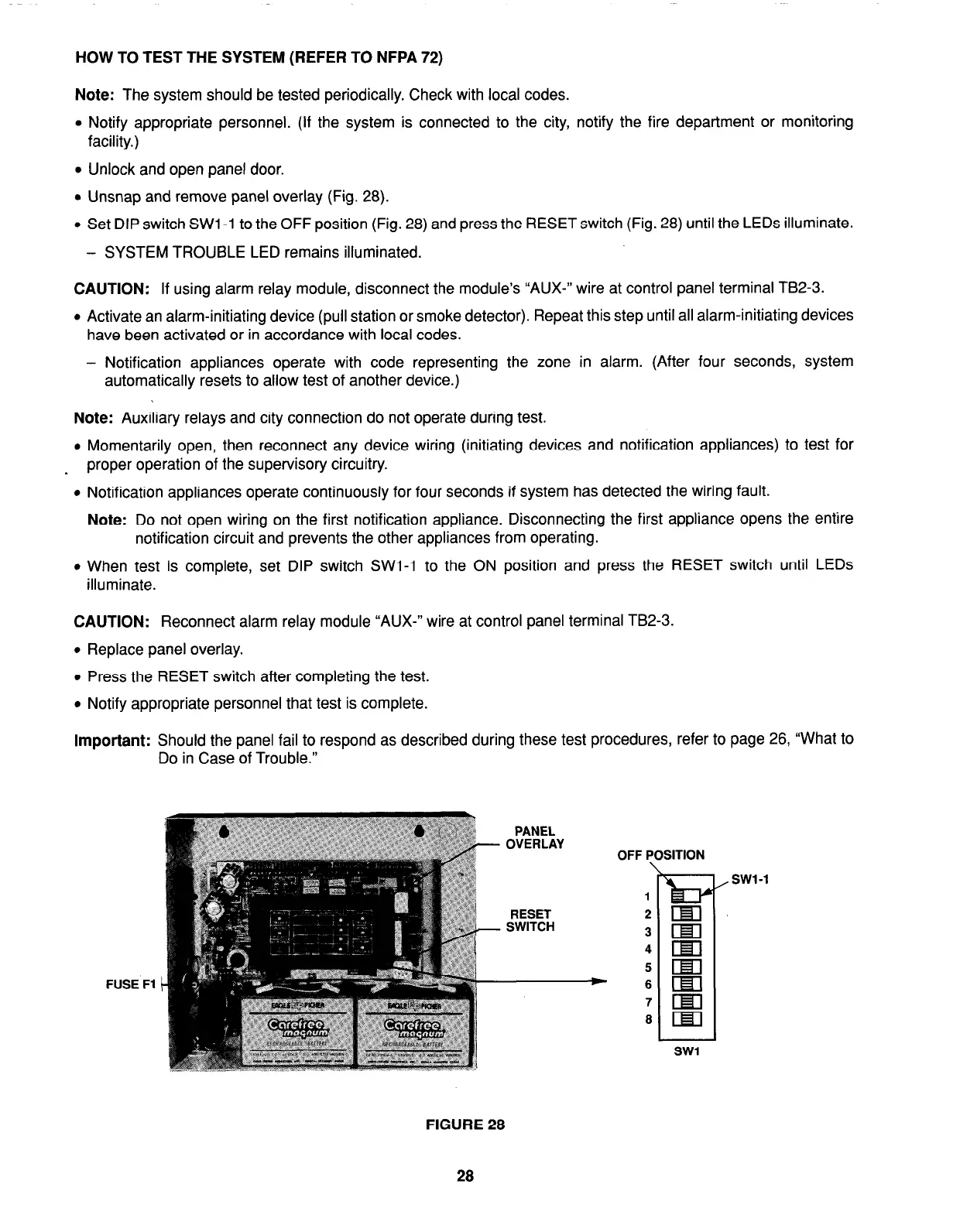

HOW TO TEST THE SYSTEM (REFER TO NFPA 72)
Note: The system should be tested periodically. Check with local codes.
l
Notify appropriate personnel. (If the system is connected to the city, notify the fire department or monitoring
facility.)
l
Unlock and open panel door.
l
Unsnap and remove panel overlay (Fig. 28).
l
Set DIP switch SW1 -1 to the OFF position (Fig. 28) and press the RESET switch (Fig. 28) until the LEDs illuminate.
- SYSTEM TROUBLE LED remains illuminated.
CAUTION: If using alarm relay module, disconnect the module’s “AUX-” wire at control panel terminal TB2-3.
l
Activate an alarm-initiating device (pull station or smoke detector). Repeat this step until all alarm-initiating devices
have been activated or in accordance with local codes.
- Notification appliances operate with code representing the zone in alarm. (After four seconds, system
automatically resets to allow test of another device.)
Note: Auxiliary relays and city connection do not operate during test.
l
Momentarily open, then reconnect any device wiring (initiating devices and notification appliances) to test for
. proper operation of the supervisory circuitry.
l
Notification appliances operate continuously for four seconds if system has detected the wiring fault.
Note: Do not open wiring on the first notification appliance. Disconnecting the first appliance opens the entire
notification circuit and prevents the other appliances from operating.
l
When test is complete, set DIP switch SWl-1 to the ON position and press the RESET switch until LEDs
illuminate.
CAUTION: Reconnect alarm relay module “AUX-” wire at control panel terminal TB2-3.
l
Replace panel overlay.
l
Press the RESET switch after completing the test.
l
Notify appropriate personnel that test is complete.
Important: Should the panel fail to respond as described during these test procedures, refer to page 26, “What to
Do in Case of Trouble.”
FUSE
Fl
PANEL
OVERLAY
OFF POSITION
RESET
SWITCH
FIGURE 28
28
