Simplex 6351 - Ac Power Wiring 115 Vac; Ac Power Wiring 230 Vac

TERMINALS FOR
AC LINE
STRAPPING AC IN
(UNFUSED)
AC NEUTRAL
JUMPERS
TERMINAL FOR
STRAPPING NEUTRAL
Cl,-, nc OUT bx IN I’J/Z,I *,ntw
NC”lltnL EXr lH?“l CECES,“ll ““Trl
\ I HP EPH NC~ r-7 ri ry-:-ca--y7 r- ----I r-q I-iz-7
I
ASSY NO. 562-765

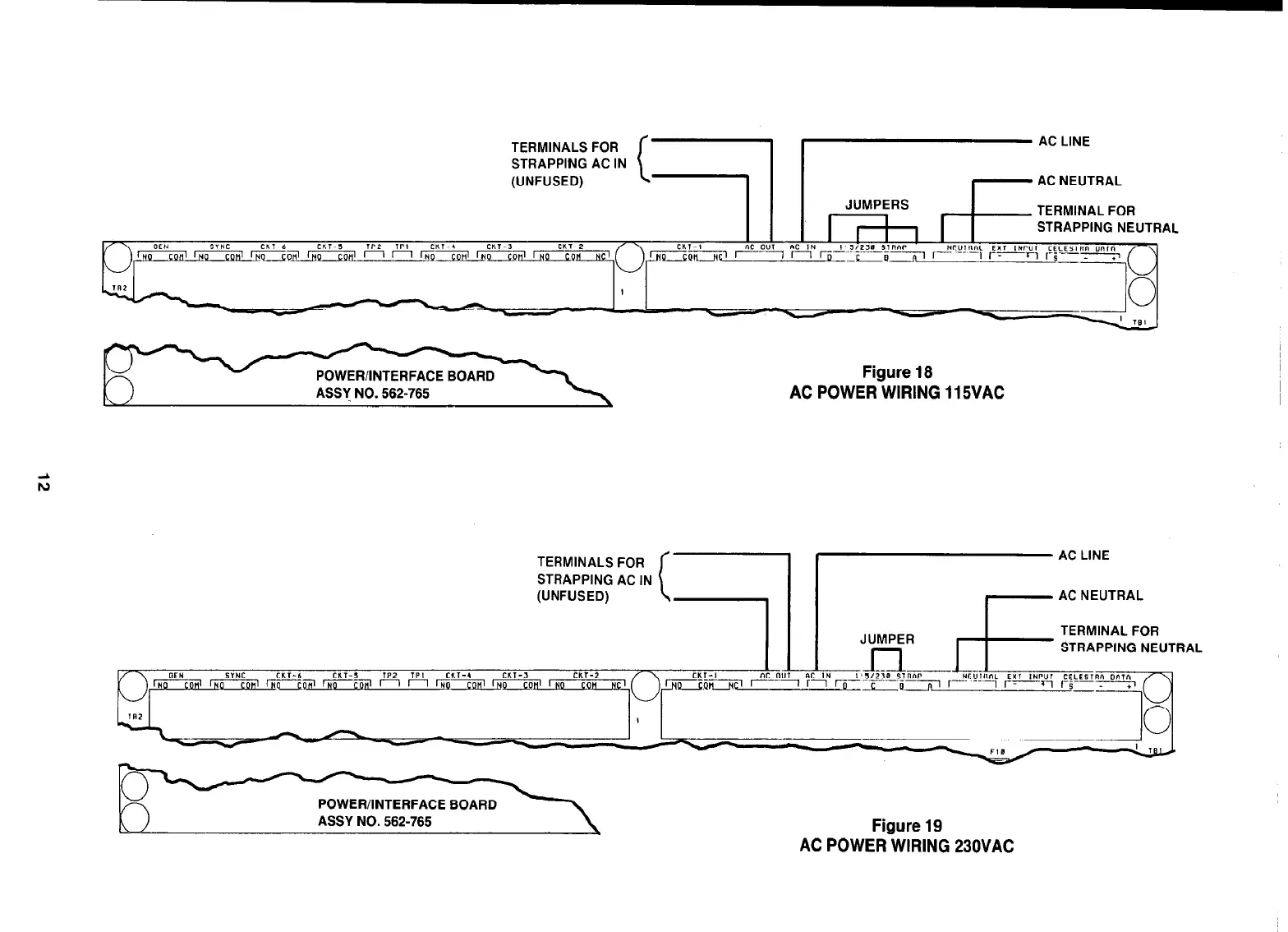

Figure 18
AC POWER WIRING 115VAC
TERMINALS FOR
STRAPPING AC IN
POWER/INTERFACE BOARD
ASSY NO. 562-765
Figure 19
AC POWER WIRING 230VAC
